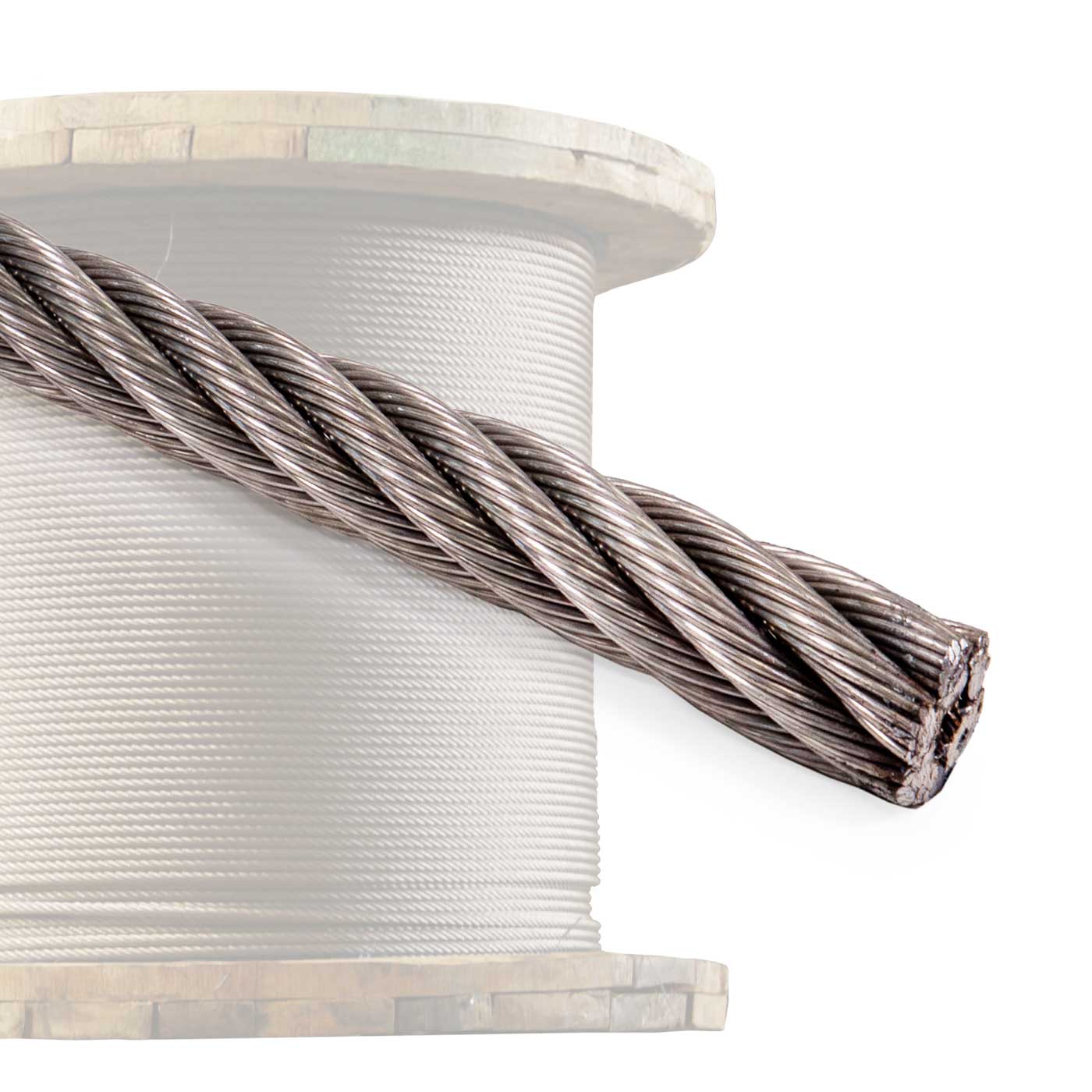

6×19 (9/9/1) Seale – IWRC Wire Rope
Order Now
Call for Price
Seale Wire Rope IWRC – 6×19 (9/9/1)
It has superb breaking load characteristics and is used in a wide range of applications, where the additional resistance to wear and abrasion provided by the larger outer wires is superior to other 6×19 constructions. 6×19 Seale construction is a wire rope construction with superb breaking load characteristics and is used in a wide range of applications, available with both FC and IWRC. The construction has proved particularly popular for applications where the additional resistance to wear and abrasion provided by the larger outer wires is superior to the other 6×19 constructions.
Seale Wire Rope IWRC – 6×19 (9/9/1)
6×19 Seale Independent Wire Rope Core has superb breaking load characteristics and is used in a wide range of applications, where the additional resistance to wear and abrasion provided by the larger outer wires is superior to other 6×19 constructions. 6×19 Seale construction is a wire rope construction with superb breaking load characteristics and is used in a wide range of applications, available with both FC (fibre core) and IWRC (independent wire rope core). The construction has proved particularly popular for applications where the additional resistance to wear and abrasion provided by the larger outer wires is superior to the other 6×19 constructions.
6×19 Seale Independent Wire Rope Core has superb breaking load characteristics and is used in a wide range of applications, where the additional resistance to wear and abrasion provided by the larger outer wires is superior to other 6×19 constructions. 6×19 Seale construction is a wire rope construction with superb breaking load characteristics and is used in a wide range of applications, available with both FC (fibre core) and IWRC (independent wire rope core). The construction has proved particularly popular for applications where the additional resistance to wear and abrasion provided by the larger outer wires is superior to the other 6×19 constructions.
6×19 (9/9/1) Seale – IWRC Wire Rope is a general-purpose wire rope constructed with 6 strands, each containing 19 wires in a Seale pattern (9 outer wires over 9 inner wires around 1 center wire), laid around an IWRC. This design offers excellent abrasion resistance and moderate flexibility, making it ideal for applications such as cranes, hoists, and winches where durability is critical.
Applications – 6×19 (9/9/1) Seale – IWRC Wire Rope
- General engineering applications
- Drill lines / drilling ropes
- Elevator rope / lift rope
- Wire rope slings
- Derricking ropes
- Pendant ropes
- Crane rope
- Hoist rope
- Sand, coring and swabbing lines
- Trawl wraps / Pelagic sweeps
- Ground cables / Ground haulage
- Oil well / Oil field
- Excavator rope / Scraper rope
- Fishing rope
- Drag ropes
- Sand, coring and swabbing lines
- Trawl wraps / Pelagic sweeps
- Ground cables / Ground haulage
Breaking Loads – 6×19 (9/9/1) Seale – IWRC Wire Rope
| Nominal Diameter | Approximate Mass | Minimum Breaking Loads | |||
|---|---|---|---|---|---|
| 1770 Mpa | 1960 Mpa | ||||
| [mm] | [kg/m] | [kN] | [Kg] | [kN] | [Kg] |
10 | 0.400 | 63.0 | 6,427 | 69.8 | 7,117 |
11 | 0.484 | 76.2 | 7,776 | 84.4 | 8,611 |
12 | 0.576 | 90.7 | 9,255 | 100.5 | 10,248 |
13 | 0.676 | 106.5 | 10,862 | 117.9 | 12,028 |
14 | 0.784 | 123.5 | 12,597 | 136.8 | 13,949 |
15 | 0.900 | 141.8 | 14,461 | 157.0 | 16,013 |
16 | 1.024 | 161.3 | 16,453 | 178.6 | 18,219 |
18 | 1.296 | 204.2 | 20,824 | 226.1 | 23,059 |
20 | 1.600 | 252.0 | 25,708 | 279.1 | 28,468 |
22 | 1.936 | 305.0 | 31,107 | 337.7 | 34,447 |
24 | 2.304 | 362.9 | 37,020 | 401.9 | 40,994 |
26 | 2.704 | 426.0 | 43,448 | 471.7 | 48,111 |
28 | 3.136 | 494.0 | 50,389 | 547.0 | 55,798 |
30 | 3.600 | 567.1 | 57,845 | 628.0 | 64,054 |
32 | 4.096 | 645.2 | 65,814 | 714.5 | 72,879 |
34 | 4.624 | 728.4 | 74,298 | 806.6 | 82,274 |
36 | 5.184 | 816.6 | 83,296 | 904.3 | 92,238 |
38 | 5.776 | 909.9 | 92,809 | 1007.6 | 102,771 |
40 | 6.400 | 1008.2 | 102,835 | 1116.4 | 113,874 |
42 | 7.056 | 1111.5 | 113,376 | 1230.8 | 125,546 |
