Underground Cable Installation Solution Philippines
Underground Cable Installation Solution

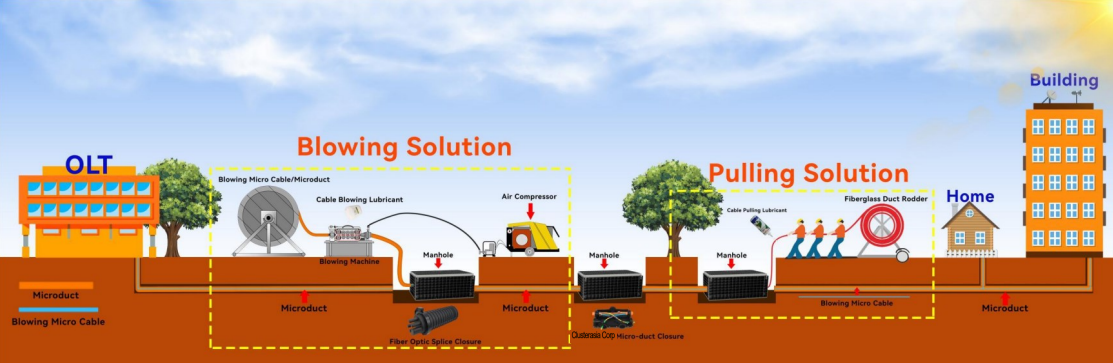

With the rapid development of urban construction, urban pipeline resources are becoming less and less, cost is raising up for open road, road management and urban noise restrictions increased construction costs for telecommunications operator. CCORP is offering professional fiber cable
blowing solution and related products such as micro cable and micro duct to solve those problems. And products are working for backbone, LAN,
pipeline expansion and FTTx network। SMC Telecom Manhole and Handhole Chamber
On each side of the product, 6 drill holes are reserved at the factory, and there is a hole opener. The size of the drill hole can be adjusted at the construction site according to the actual size of the HDPE Silicon Pipe/HDPE Micro duct.
On each side of the product, 6 drill holes are reserved at the factory, and there is a hole opener. The size of the drill hole can be adjusted at the construction site according to the actual size of the HDPE Silicon Pipe/HDPE Micro duct.
| C-Corp - FBM01 Plus Fiber Blowing Machine | |
|---|---|
| Construction | Description |
| Micro Cable Diameter | 0.5~8.0 mm (available seals) |
| Micro Ducts Diameter | 5~16 mm (available seals) |
| Blowing Range / Max | 700 m |
| Blowing Speed / Max | 60 m/min |
| Operating Pressure / Max | 15 bar |
| C-Corp - FBM02 Fiber Blowing Machine | |
|---|---|
| Construction | Description |
| Micro Cable Diameter | 0.8~10 mm (available seals) |
| Micro Ducts Diameter | 5~16 mm (available seals) |
| Blowing Range / Max | 1000 m |
| Blowing Speed / Max | 110 m/min |
| Operating Pressure / Max | 15 bar |
| C-Corp - FBM08 Fiber Blowing Machine | |
|---|---|
| Construction | Description |
| Micro Cable Diameter | 7/10/12 mm (max. number of the microducts: 7) |
| Micro Ducts Diameter | 32mm, 40mm, 50mm |
| Blowing Range / Max | 1500 m |
| Blowing Speed / Max | 80 m/min |
| Operating Pressure / Max | 10 bar |
| C-Corp - FBM04 Fiber Blowing Machine | |
|---|---|
| Construction | Description |
| Micro Cable Diameter | 4~10 mm / 2.5/12 mm (available seals) |
| Micro Ducts Diameter | 5~16/20 mm (available seals) |
| Blowing Range / Max | 2500 m |
| Blowing Speed / Max | 110 m/min |
| Operating Pressure / Max | 15 bar |
| C-Corp - FBM03 Fiber Blowing Machine | |
|---|---|
| Construction | Description |
| Micro Cable Diameter | 2.5~12 mm (available seals) |
| Micro Ducts Diameter | 5~20 mm (available seals) |
| Blowing Range / Max | 2500 m |
| Blowing Speed / Max | 110 m/min |
| Operating Pressure / Max | 15 bar |
| C-Corp - FBM05 Fiber Blowing Machine | |
|---|---|
| Construction | Description |
| Micro Cable Diameter | 6.0~15 mm (optional dia.: up till 20 mm) |
| Tube Diameter | 32 mm, 40 mm, 50 mm |
| Blowing Range / Max | 2500 m |
| Blowing Speed / Max | 80 m/min |
| Operating Pressure / Max | 10 bar |
1-Way 7-3.5 mm HDPE Micro Duct
1-Way 14-10 mm HDPE Micro Duct
Pipe Specifications
| O.D (mm) | I.D (mm) | Wall Thickness (mm) | SDR | Nom. Mass (kg/km) | Min Bend Rad (mm) | Max Pull (kg) | Max Pull (N) |
|---|---|---|---|---|---|---|---|
| 5.0 | 3.5 | 0.75 | 6.7 | 10 | 60 | 18 | 180 |
| 7.0 | 3.5 | 1.75 | 4.0 | 28 | 84 | 52 | 520 |
| 8.0 | 6.0 | 1.0 | 8.0 | 22 | 96 | 38.5 | 385 |
| 10.0 | 6.0 | 2.0 | 6.0 | 49 | 120 | 90 | 900 |
| 10.0 | 8.0 | 1.0 | 10.0 | 28 | 120 | 51 | 510 |
| 12.0 | 8.0 | 2.0 | 6.0 | 61 | 144 | 112 | 1120 |
| 12.0 | 10.0 | 2.0 | 12.0 | 34 | 144 | 62 | 620 |
| 14.0 | 10.0 | 1.25 | 11.2 | 49 | 168 | 135 | 1350 |
| 16.0 | 12.0 | 2.0 | 8.0 | 84 | 192 | 158 | 1580 |

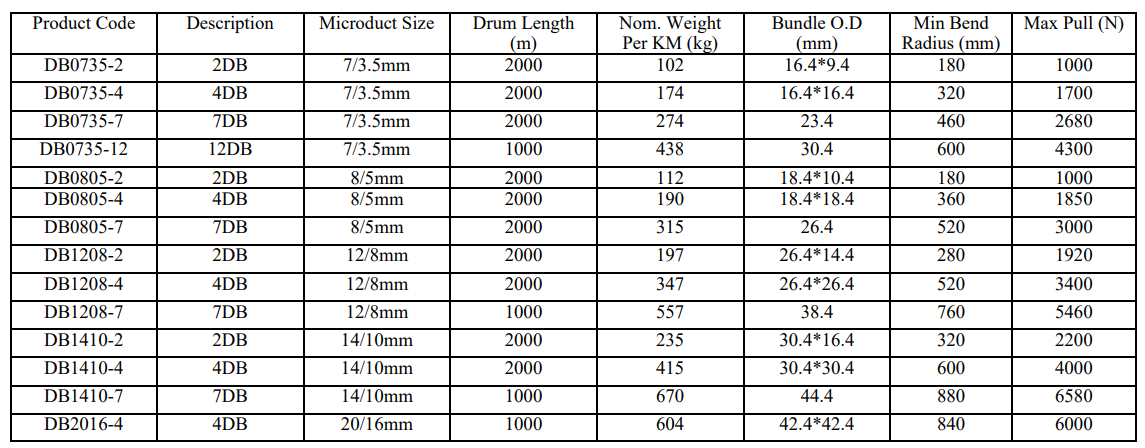

A bundle of micro- or mini-tubes (regular wall size) is surrounded by dual HDPE sheath.The design makes the duct assemblies suitable for outdoor
direct buried. The bundles are optimized for best cable blowing
A bundle of micro- or mini-tubes (regular wall size) is surrounded by dual HDPE sheath.The design makes the duct assemblies suitable for outdoor
direct buried. The bundles are optimized for best cable blowing performance
Underground Cable Installation Solutions for the Philippines
As urbanization accelerates across the Philippines, particularly in Metro Manila, Cebu, and Davao, the demand for efficient and cost-effective underground cable installation solutions has surged. Traditional overhead wiring systems are increasingly being replaced with underground networks to enhance aesthetics, reduce maintenance costs, and improve disaster resilience. CCORP offers a comprehensive suite of products tailored to meet these evolving needs.
Why Opt for Underground Cable Installation?
Underground cabling presents numerous advantages:Cebu Daily News
- Enhanced Aesthetics: Eliminates unsightly overhead wires, improving the visual appeal of urban landscapes.
- Increased Reliability: Protects cables from weather-related damages, reducing service interruptions during typhoons and storms.
- Safety and Disaster Resilience: Reduces the risk of accidents and ensures continuous service during natural disasters.
- Long-Term Cost Savings: Although initial installation costs may be higher, underground systems often result in lower maintenance expenses over time.
Cities like Cebu have already initiated projects to transition overhead lines to underground systems, setting a precedent for other urban areas. Cebu Daily News
CCORP’s Tailored Solutions for the Philippine Market
CCORP provides a range of products designed to streamline the underground cable installation process:

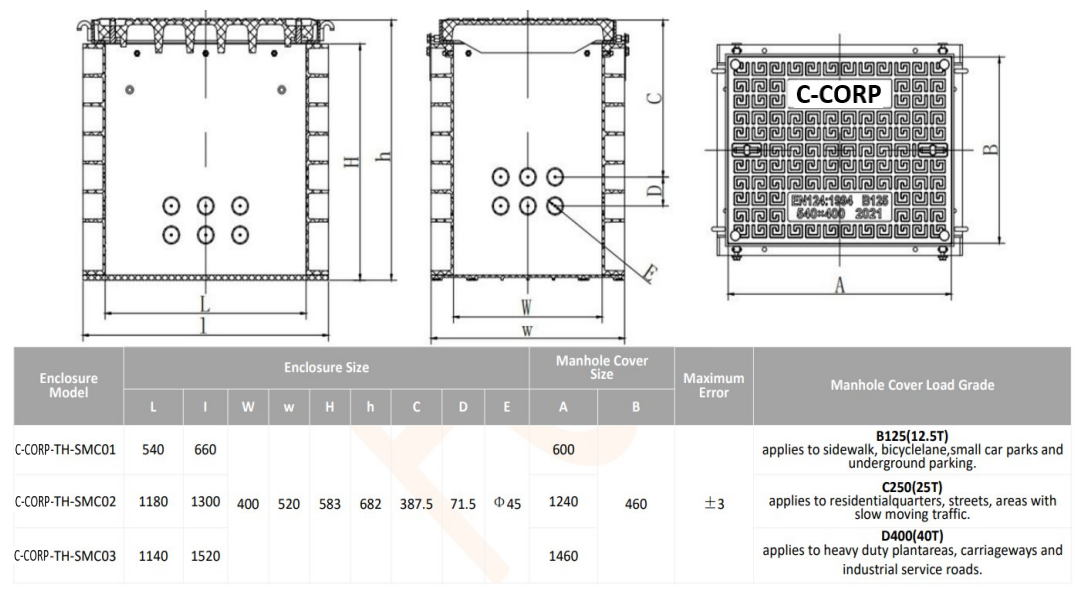

- SMC Telecom Manhole and Handhole Chambers
These chambers serve as access points for maintenance and expansion of underground networks. Manufactured with durable materials, they are designed to withstand heavy loads and harsh environmental conditions. Key models include:Power and Cables
- C-CORP-TH-SMC01: Compact design suitable for areas with space constraints.
- C-CORP-TH-SMC02: Medium-sized chamber with adjustable drill holes for flexibility.
- C-CORP-TH-SMC03: Large capacity chamber designed for high-traffic areas.
These chambers are compatible with various sizes of HDPE silicon pipes and micro ducts, ensuring versatility in installation.
- Fiber Blowing Machines
CCORP’s fiber blowing machines facilitate the efficient installation of fiber optic cables into micro ducts. These machines use compressed air to propel cables, minimizing manual labor and reducing installation time. Models include:
- FBM01 Plus: Suitable for cables with diameters ranging from 0.5 to 8.0 mm, offering a blowing range of up to 700 meters.
- FBM02: Handles cables from 0.8 to 10 mm in diameter, with a maximum blowing range of 1,000 meters.
- FBM03 and FBM04: Designed for larger cables up to 12 mm, these models offer extended blowing ranges of up to 2,500 meters.
- FBM08: Capable of handling multiple micro ducts simultaneously, suitable for large-scale installations.
These machines are equipped with adjustable seals to accommodate various duct sizes, ensuring a secure fit and efficient cable installation.
- Micro Ducts and Accessories

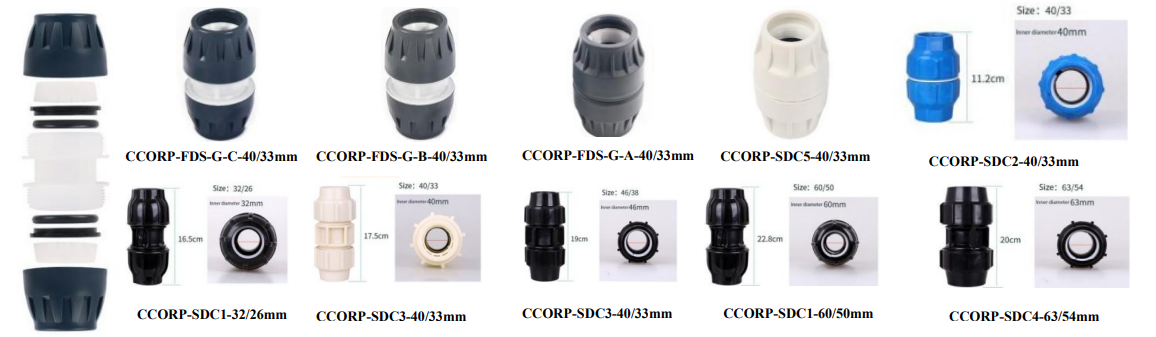

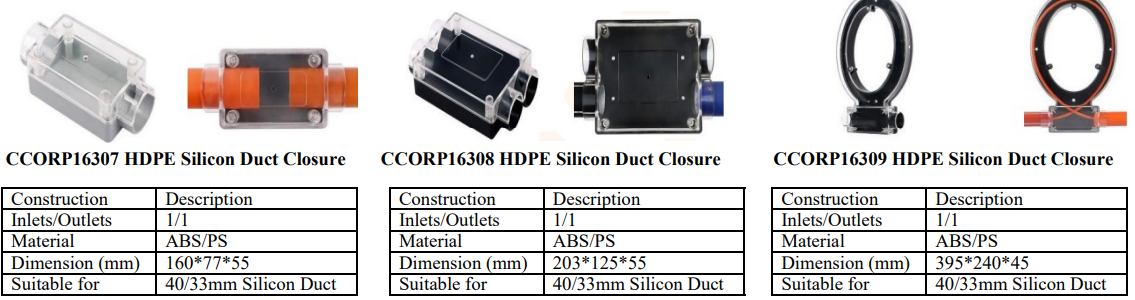

CCORP offers a range of micro ducts and accessories, including connectors and closures, to support the underground installation of fiber optic cables. These products are designed to protect cables from environmental factors and facilitate future network expansions.
Supporting the Philippines’ Digital Infrastructure
The Philippine government and private sector are investing heavily in digital infrastructure to support the growing demand for high-speed internet and telecommunications services. Companies like Converge ICT are expanding their fiber optic networks across the country, reaching over 495 cities and municipalities. Wikipedia
CCORP’s underground cable installation solutions are aligned with these national initiatives, providing reliable and scalable infrastructure to support the Philippines’ digital transformation.
Conclusion
As the Philippines continues to modernize its urban infrastructure, the shift towards underground cable installations becomes increasingly essential. CCORP’s comprehensive solutions, including SMC Telecom manhole chambers, fiber blowing machines, and micro ducts, offer efficient and cost-effective options for telecommunications companies and contractors. By adopting these advanced technologies, stakeholders can contribute to building a more resilient and aesthetically pleasing urban environment.
For more information on CCORP’s underground cable installation solutions and to explore our product catalog, please contact our team today.
