COMWAY A3 FUSION SPLICER MACHINE
Order Now
₱0
COMWAY A3 FUSION SPLICER MACHINE
... people are viewing this right now
Compare
COMWAY A3 FUSION SPLICER MACHINE

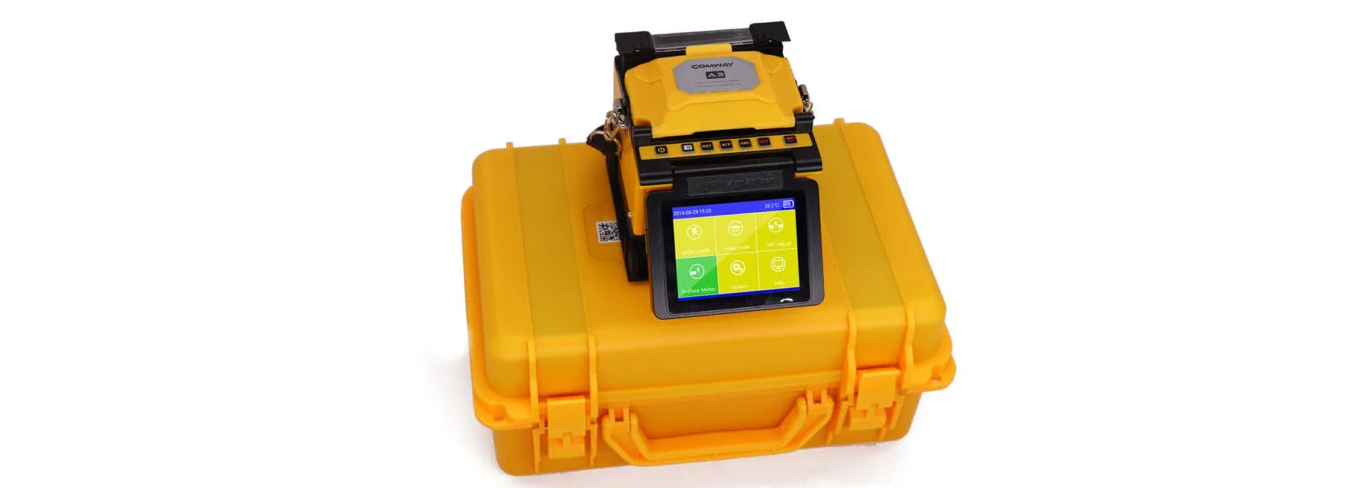

Comway A3 is a fusion and fiber endface melter, all in one. This is a compact and powerful tool for SM, MM, DS, NZ, NSDS, BI optical fibers it has cladding alignment with fixed Vgrooves, and also includes the high performance heater and ceramic fiber presser.
Feature:
- 2 in 1 : a fusion splicer and a fiber endface melter
- Smart ARC control technology provides stable work under any conditions
- Fast and power saving high-performance heater
- The high quality screen ensures clear viewing of results even under bright sunlight
- Ultra narrow ceramic V-Groove. Suitable for all kinds of applications
- Stable and durable ceramic fiber presser
- Removable large capacity Fully charged performs over 240 times splicing and heating.
Packing:
- Fusion Splicer Comway A3- 1 pc User Guide- 1 pc
- Striper CFS-2 – 1 pc
- Drop cable stripper – 1 pc High precision cleaver- 1 pc Carrying case- 1pc
- High capacity battery BAT-05- 1pc AC Adapter ADC-05 – 1 pc
- Extra Electrodes- 1 set Cooling Tray- 1 pc
- AC Adapter Cable ACC-01 – 1 pc Hand Strap – 1 pc
- Alcohol Button – 1 pc
Technical Description:
| Fiber Alignment | High Precision PAS alignment |
| Fiber Type | SM (IRU-T G.652) MM (ITU-T G.651) DS (ITU-T G.653) NZ/NZDS (ITU-T G.655)
BI (ITU-T G.657) |
| Splice Mode | Single Fiber |
| Fiber Diameter | Cladding Diameter: 80-150 μm |
| Cleave Length | Cladding Diameter 250 μm: 8~16 mm |
| Splicing programs | Max. 100 |
| Splicing Time | 6 s (SM Fast); 15 s (SM G652) |
| Heating Programs | Max. 30 |
| Heating Time | Adjustable, 15 s typical |
| Splice Protector | 10~60 mm |
| Splice Image Capture | Max. 300 |
| Splice Data Storage | Max. 20,000 |
| Splice Loss | SM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZ/NZDS: |
| Return Loss | ≥60 dB |
| Loss Estimation | Provided |
| Operation Condition | Temperature: -20~+50 °C Humidity: 0-95% Altitude: 0-5000 m Wind Velocity up to 15 m/s |
| Storage Condition | Humidity: 0-95% |
