DEVISER AE1001 OTDR 1310/1550NM | 80KM
Order Now
₱0
DEVISER AE1001 OTDR 1310/1550NM | 80KM
... people are viewing this right now
Compare
DEVISER AE1001 OTDR 1310/1550NM | 80KM
Product Description
DEVISER AE1001 OTDR 1310/1550NM | 80KM is a sleek, zero- fuss OTDR weighing less than 1 kg that tests the common 1310 & 1550nm wavelengths in 5s flat. Low power consumption and a solid 2500mAH battery allow the AE1001 to run automated, manual, or real-time tests continuously for over 4 hours, and are supplemented with the always-handy OPM and VFL.
Main Features
•Ultra-portable, lightweight OTDR for FTTx networks
•4.3” LCD touchscreen is visible in high- or low-light conditions
•Fast dual-wavelength test generates results in ≤5 seconds
•Excellent stability and repeatability
•Power-packed ~2-lb meter runs continuously for over 4 hours
•Save >160k OTDR traces with 16 GB of data storage
Application
Construction, deployment, maintenance, and authentication
of the following networks:
• FTTx
• Passive Optical Networks (PON)
• Local Area Networks (LAN)
• Metropolitan Area Networks (MAN)
Specification

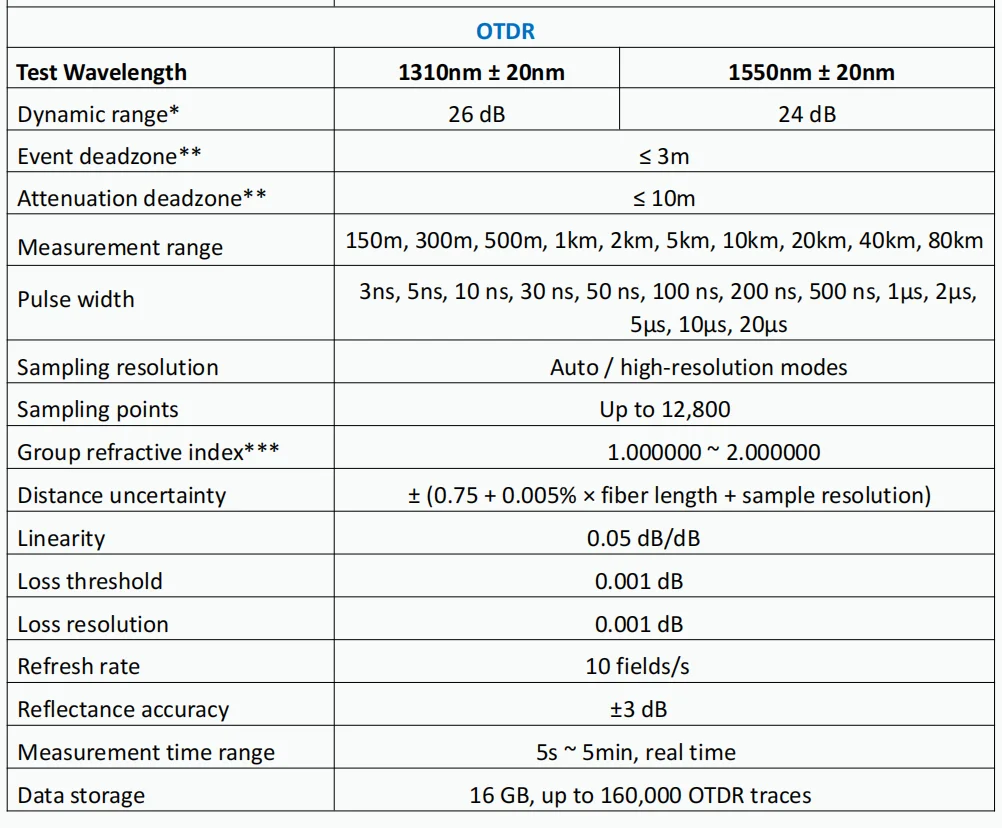

OTDR specifications:

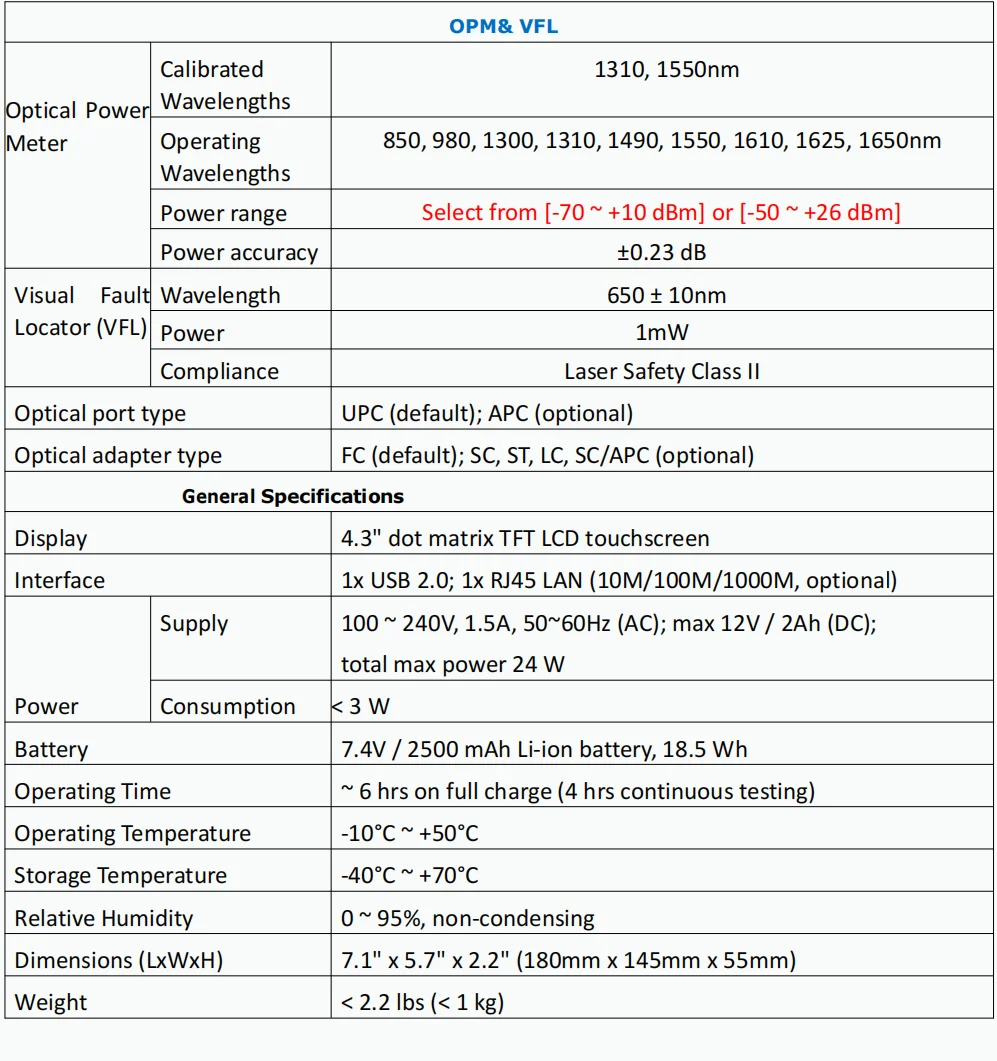

OPM&VFL Specifications :
Standard Package
- AE1001 Handheld OTDR (standard package)
- Built-in battery
- AC adapter
- Calibration Certificate
- Soft carrying bag
