SC APC Fast Connector
Order Now
₱0

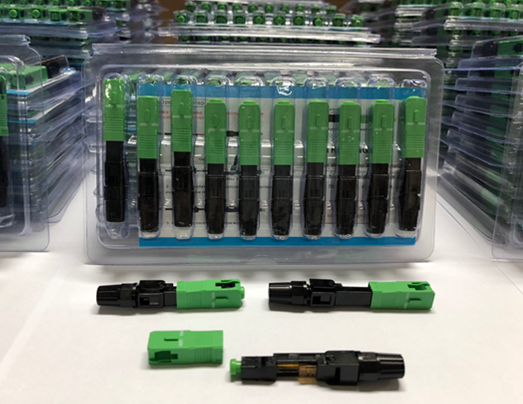

SC APC FAST CONNECTOR
Fiber Fast Connector is used for field assembled optical fiber connector, widely used in fiber to the home (FTTH) access optical networks, to assemble with drop cable quickly.
... people are viewing this right now
Compare
SC APC FAST CONNECTOR
SC APC FAST CONNECTOR is used for field assembled optical fiber connector, widely used in fiber to the home (FTTH) access optical networks, to assemble with drop cable quickly.
Application
- Used to open the FTTH fiber terminal end.
- In the box, cabinet, such as wiring into the box.
- Off the back of the accidents such as fiber, mainte -nance.
- LAN, wan, data and video transmission.
- The construction of the fiber end user access and maintenance.
- Optical fiber access of mobile base station.
1.Matching liquid
Matching liquid filling but joints, not too much dependence on the flatness of the cutting surface, reducing the operators proficiency requirements .
2. Clamshell design
Clamshell design, better fastening fiber optic cable.
3.Ceramic Ferrul
Imported ceramic ferrul grinding carefully to ensure lower optical loss.
Technical Specifications
| Item | Parameter |
| Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable |
| Fiber Diameter | 125m (625 & 657) |
| Coating Diameter | 250m |
| Mode | SM |
| Operation Time | about 15s (exclude fiber presetting) |
| Insertion Loss | 0.25db (1310nm & 155onm) |
| Return Loss | -45bd |
| Success Rate | 98% |
| Reusable Times | 10 times |
| Tensile Strength | 5 N |
| Tighten Strength of coating | 10 N |
| Temperature | -4085C |
| On-line Tensile Strength Test (20 N) | IL 0.3 dB10 |
| Mechanical Durability (500 times) | IL 0.3 dB |
| Drop test (4m concrete floor, once each direction three times total) | IL 0.3 dB |
Product Description
| Product Features | Type | Technical parameters | Environmental parameters |
| Low insertion loss | With embedded | Fiber diameter 125m- 900m | Operating temperature -40˚C – 85 ˚C |
| High reliability and stability | Insertion loss: IL 0.3 dB limit 0.5 dB | Temperature cycle: IL change 0.3 dB | Return loss: RL 50dB |
| Specifications customized according to customer specified | Vibration: IL change 0.3 dB | Repeatability: IL change 0.3 dB | Tensile strength: F20N Flooding :IL change 0.3 dB |
