NK300 series handheld OPM / OPM + VFL
Order Now
Call for Price
NK300 series handheld OPM / OPM + VFL
NK300 series handheld OPM / OPM + VFL

Product Overview
NK300 series are controlled by single-chip microprocessor but multifunction. The body design meets the functional requirements of human body and adopts advanced thermal molding technology, which is beautiful and durable. It can be well protected by using embedded detector and laser. The whole machine has automatic shutdown function, three red light modes, backlight display, wavelength memory function, user calibration, wide test range functions.
It is mainly used for continuous optical signal power measurement, optical fiber link loss test and optical fiber line on-off test. It is widely used in optical cable construction and maintenance, optical fiber communication, optical fiber sensing, Optical CATV and other fields.
Product Features
- Support simultaneous display of mW/dBm
- Support user calibration
- Support automatic shutdown/backlight switch
- Support CW/1Hz/2Hz red light mode
- Support wave memory when shutdown
- Support SC/FC/ST interface
- 120h working time
- Supporting portable battery charging
NK300 series are controlled by single-chip microprocessor but multifunction. The body design meets the functional requirements of human body and adopts advanced thermal molding technology, which is beautiful and durable. It can be well protected by using embedded detector and laser. The whole machine has automat ic shutdown function, three VFL modes, backlight – display, wavelength memory function, user calibration, wide test range functions. It is mainly used for continuous optical signal power measurement, optical fiber link loss test and optical fiber line on-off test. It is widely used in optical cable construction and maintenance, optical fiber communication.

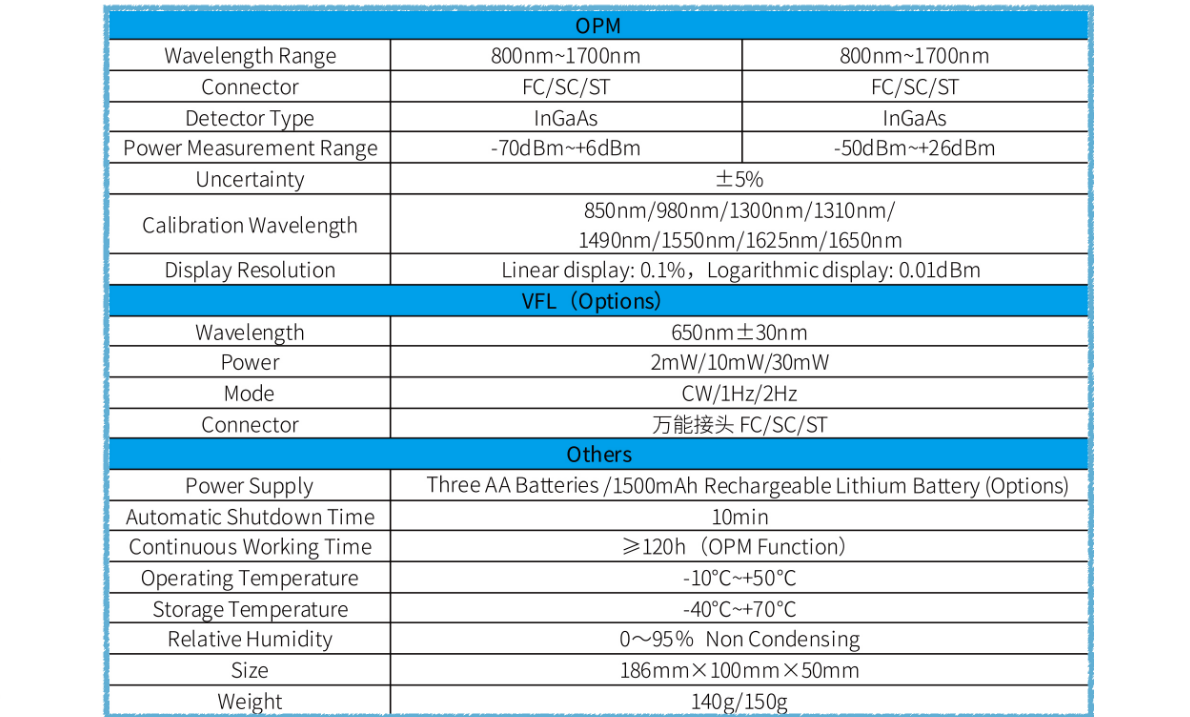

NK300 Technical Specifications

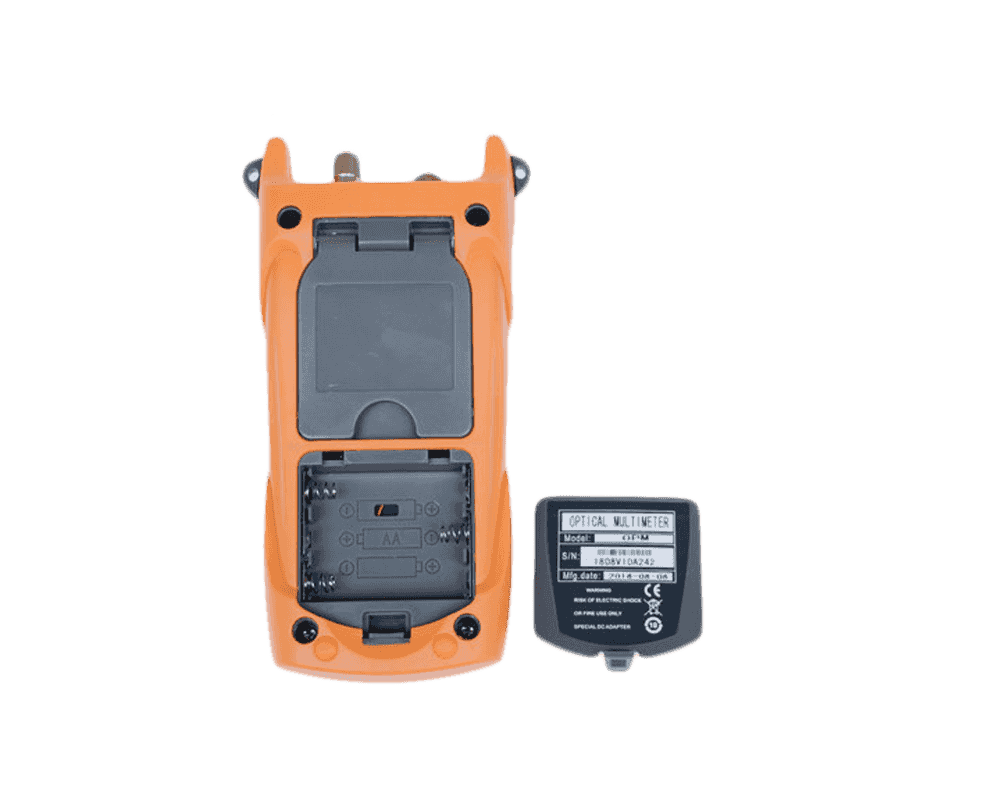

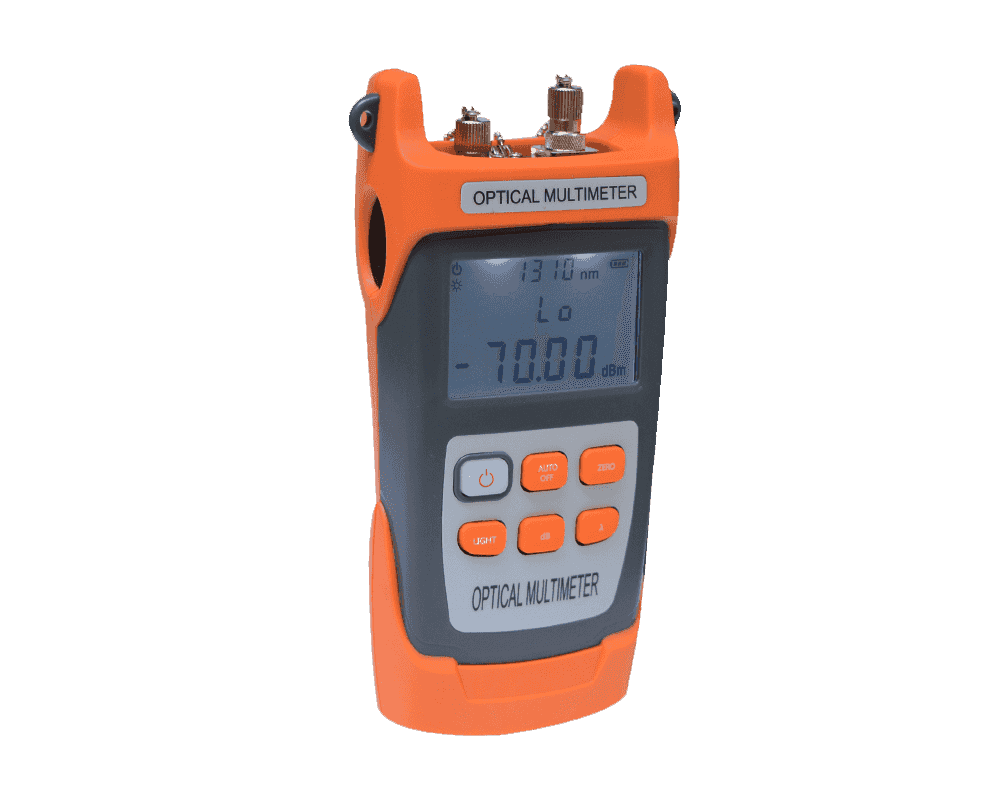

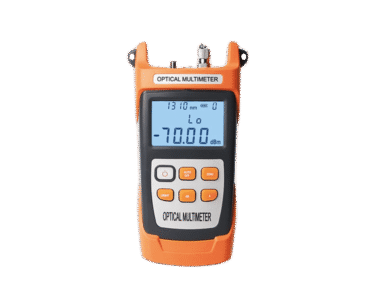

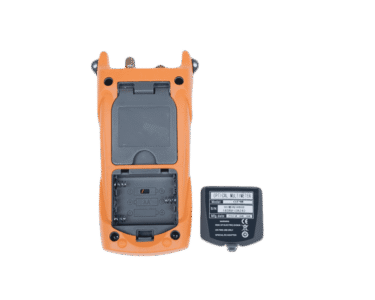

NK300 Images
