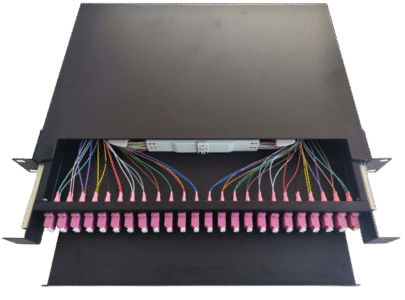

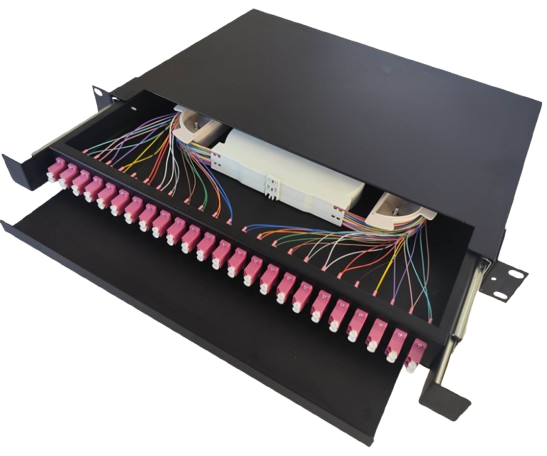

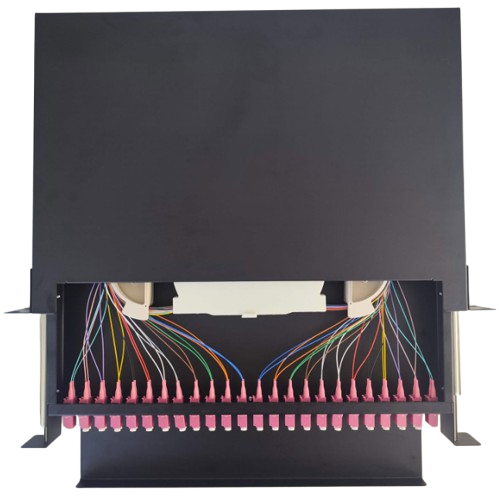

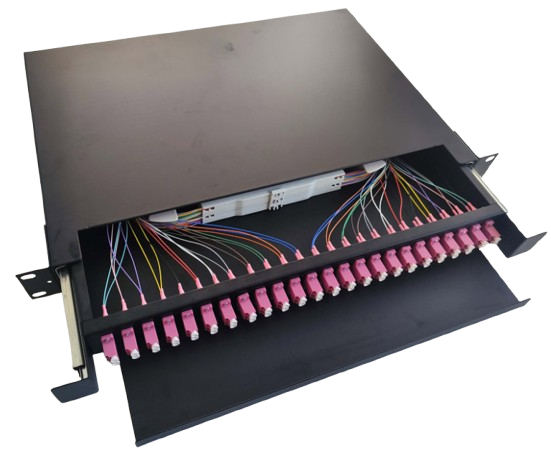

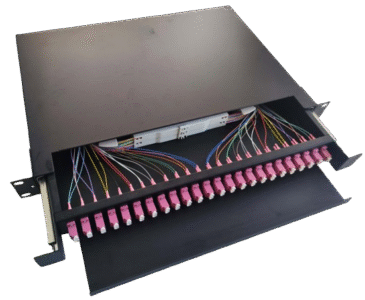

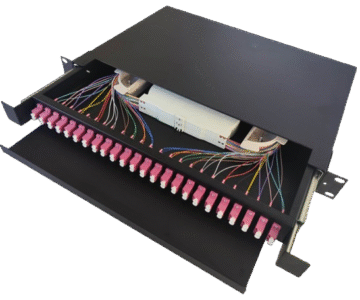

24 Ports OM4 ODF Multimode Fiber Optic Patch Panel 1U 19″ Rack Mounted Loaded LC UPC Duplex Adapter

24 Ports ODF OM4 Multimode Fiber Optic Patch Panel is an integrated unit for fiber management, Clusterasia Corp offer wall mounted fiber optic patch panel and rack mounted fiber optic patch panels, these equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection.

There different models to fit for 12 core fiber, 24 core fiber, 36 core fiber, 48 core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC MTRJ, etc. related fiber accessories and pigtails are optional.

An optical distribution frame, is a crucial component of a fiber optic network. It provides a central location for managing and organizing fiber optic cables, making it easier to connect and maintain them. It typically contain several ports or slots into which fiber optic cables can be plugged, allowing for efficient and organized cable management.

The primary function of an ODF is to distribute optical signals from one cable to multiple others. This process is done using a combination of Fiber optic splitters and patch cords. Splitters divide the signal from a single cable into multiple branches, while patch cords connect the splitters to the various ports on it. This allows a single signal source, such as a Fiber optic switch or router, to be distributed to multiple devices or destinations.

• Standard size, light weight and reasonable structure

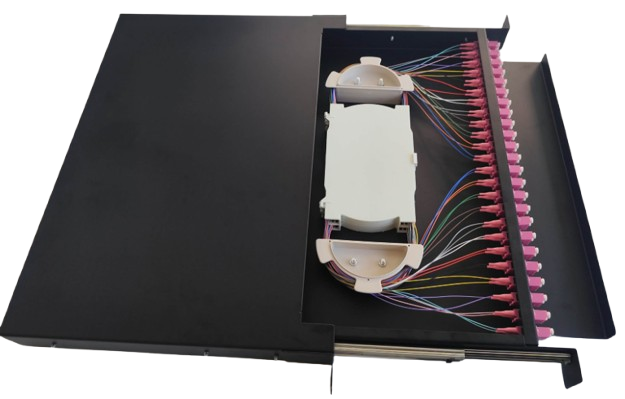

• Slide out drawer for easy cable management
• FC, SC, ST, LC adapter patch panel for option, easy to replace
• Front access panel design for easy operation
• Suitable for 19’’ or 23’’ standard optic distribution cabinets
• White or black color 9 Material: Cold-roll steel
• 1 RU, rack unit
• Easy for management and operation
• Splice tray inside changeable
• Suitable for ribbon and single fiber
• Standard size, light weight and reasonable structure
• Front mark on the plate is easy for identification and operation

Applications: 24 Ports ODF OM4

• Telecommunications subscriber loop
• Fiber to the home (FTTH)
• LAN/WAN
• CATV
• For managing connections between servers and network equipment.
• Telecommunications: To facilitate connections in telecom networks.
• Enterprise Networks: For structured cabling systems in office environments.
