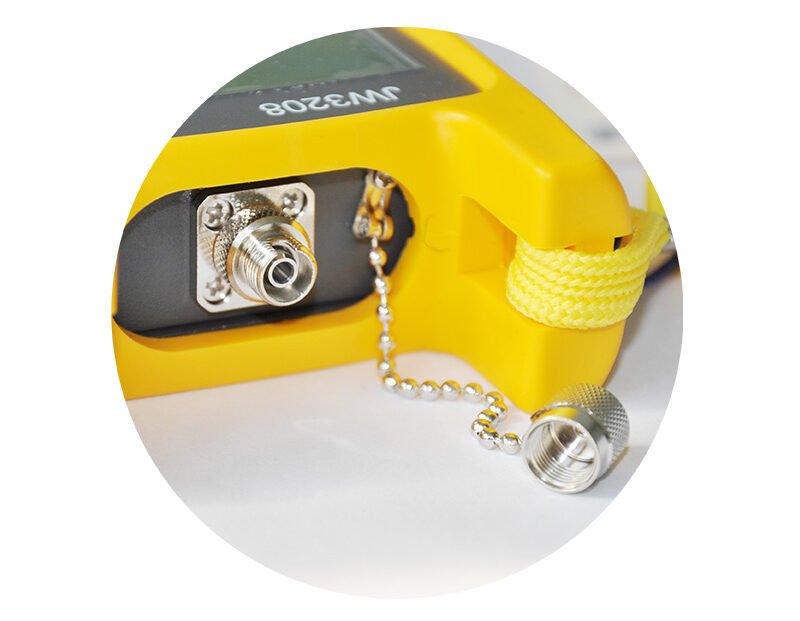

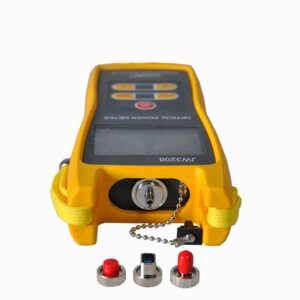

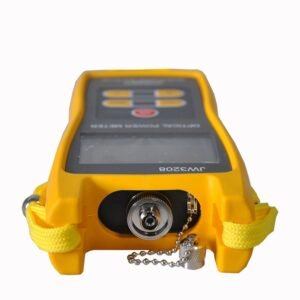

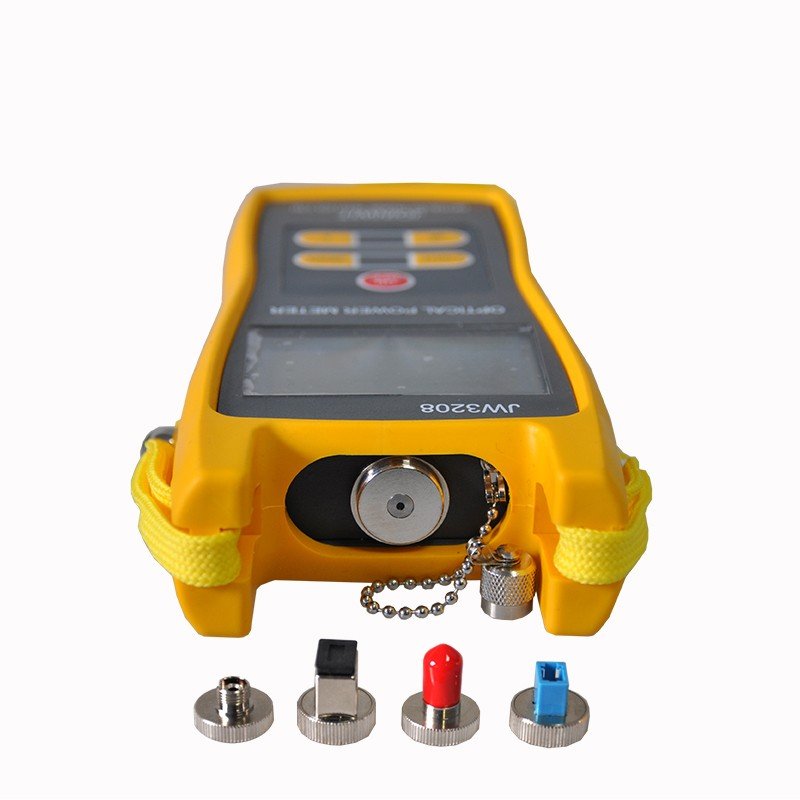

JW3208 Handheld Optical Power Meter
Order Now
JW3208 Handheld Optical Power Meter
... people are viewing this right now
Compare
JW3208 Handheld Optical Power Meter
Features
- User self calibration function
- Comfortable LCD display and optional backlight LCD display supports night operation
- Power measurements in dBm or mw and insertion loss in dB
- Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
- 10 minutes Auto-off function can be activated or deactivated.
Specifications
Type | A | C |
Wavelength(nm) | 800~1700nm | |
Detector | InGaAs | |
Measurement Range (dBm) | -70~+6 | -50~+26 |
Uncertainty | ±5% | |
Calibrated Wavelength(nm) | 850,980,1300,1310,1490,1550 | |
Resolution(dB) | 0.01 | |
Optical Connector | FC(interchangeable SC,ST) / as well as 2.5mm universal | |
Power Supply | Alkaline Battery(3 AA 1.5V batteries) | |
Battery Operating Time | 240 h with 1.5V Battery(3) | |
Operating Temperature(℃) | -10 ~ +60 | |
Storage Temperature(℃) | -25 ~ +70 | |
Relative Humidity | 0 to 95% (non-condensing) | |
Dimension | 23.5*16*8cm | |
Weight | 0.5kg | |
