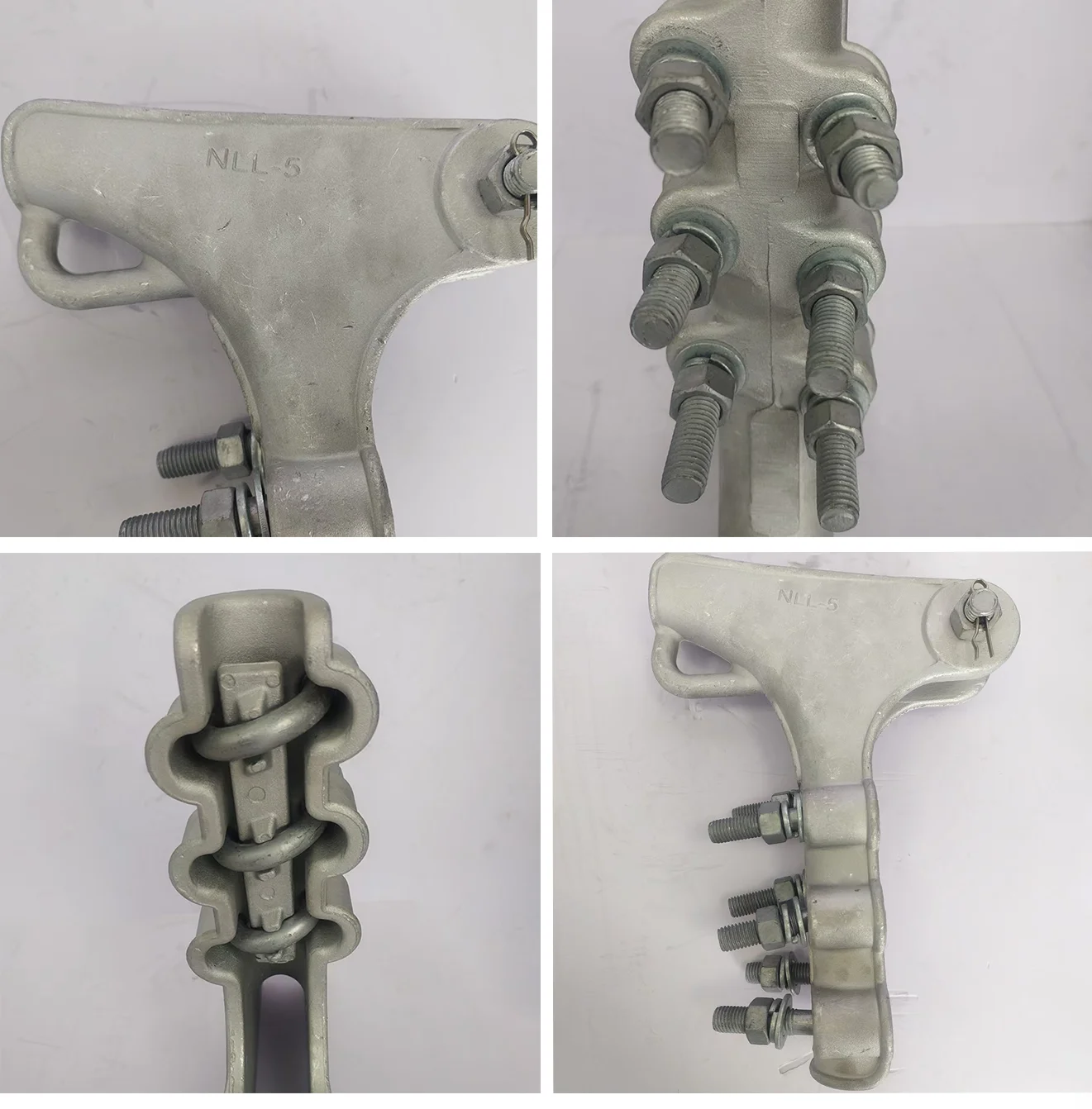

NLL Series Aluminium Alloy Strain Clamp 25.9~32.7 Size Ideal for 35kV Voltage Factory
Strain Clamp
Tension clamp is one type of single tension hardware that used for completing the tensional connection on a conductor or cable, and it provides mechanical support to the insulator and conductor. It is usually used with fitting like clevis and socket eye on the overhead transmission lines or distribution lines.
Bolted type tension clamp is also called dead end strain clamp or quadrant strain clamp.
Depending on the material, it can be divided into two series: NLL series tension clamp is an Aluminium Alloy Strain Clamp, while the NLD series is made of malleable iron.
NLL tension clamp can be classified by the conductor diameter, there are NLL-1, NLL-2, NLL-3, NLL-4, NLL-5 (the same for the NLD series).
Product Parameters
Aluminum Alloy Strain Clamps(Type NLL,Bolted Type) | ||||||||

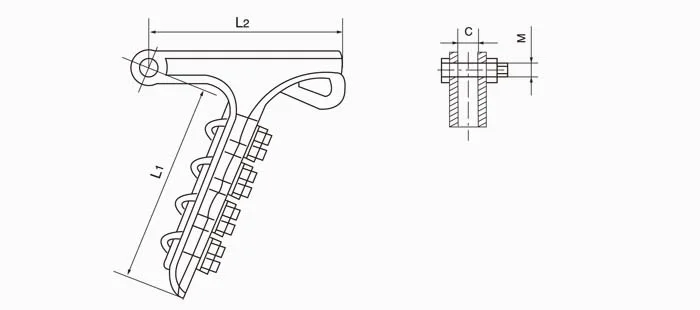

Catalog No. | Conductor Dia.(mm) | Dimensions(mm) | Rated Failure Load | Weight | ||||
M | C | L1 | L2 | (kN) | (kg) | |||
NLL-1 | 5.1-11.5 | 16 | 19 | 140 | 120 | 40 | 1.0 | |
NLL-2 | 8.9-18.5 | 16 | 24 | 176 | 187 | 40 | 1.6 | |
NLL-3 | 5.0-15.0 | 16 | 18 | 190 | 203 | 70 | 1.9 | |
NLL-4 | 12.1-21.8 | 16 | 30 | 298 | 284 | 90 | 4.1 | |
NLL-5 | 18.0-30.0 | 22 | 36 | 446 | 342 | 120 | 7.0 | |
