C-Corp 4 ports Optical Receiver and Transmitter, Aerial, 9dB, 47-862 MHZ

₱40,000

is a kind of new high quality CATV network products. It adopts the reasonable combination of GaAs NEC amplifying module, AGC/MGC function. When input optical power is in the range of -6~+2dBm, output level will be stable and it is characterized by high performance index. Single chip microcomputer controlling LED numeral pipe displays each parameter, which makes CATV network project very easy to debug. Digital and analogue signals can be transmitted at the same time. This is the priority choice in HFC network system construction.

HURRY! ONLY 35 LEFT IN STOCK.

1310 and 1550nm double-window receiving
Single chip microcomputer controls AGC/MGC status and output level remotely
Four-digit high bright LED number tube displays the units each operating parameter real timely (optical power, output level, internal temperature, voltage, current, etc.)
RF output level, gain and slope all can be controlled and modulated remotely (equipped in SNMP) or keys are adjusted.
High reliable switching power supply, small temperature rising, high converting efficiency and wide voltage range
Each port is equipped AC60V LED indicator light, easy to operate
Network manager responder (sort I or II) component complying with SCTE HMS standard can be chosen. Operating status and performance parameter of optical node can be controlled and monitored remotely
Perfect surge suppression circuit, it can prevent surge stroke and light stroke efficiently
Built in AC60V sole power port, easy to operate.

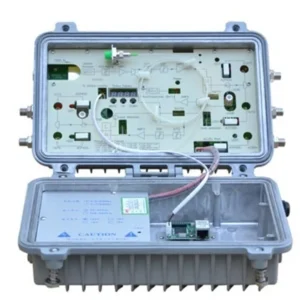

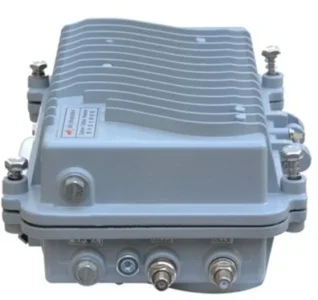

Actual Pictures of C-Corp 4 ports Optical Receiver and Transmitter, Aerial, 9dB, 47-862 MHZ

C-Corp 4 ports Optical Receiver and Transmitter, Aerial, 9dB, 47-862 MHZ
