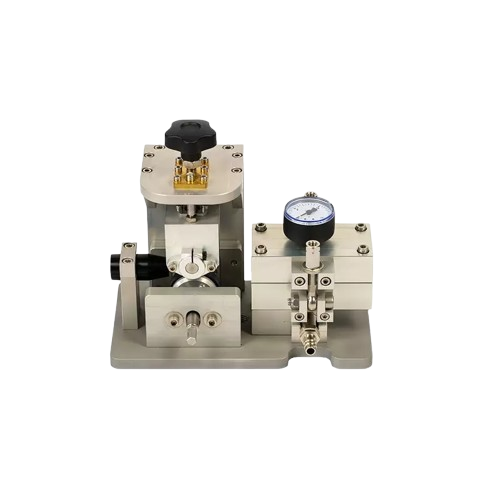

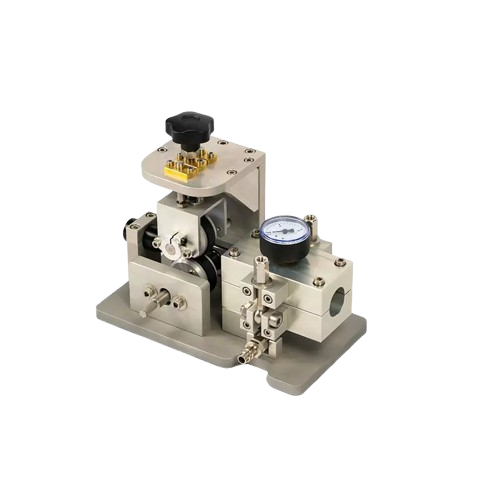

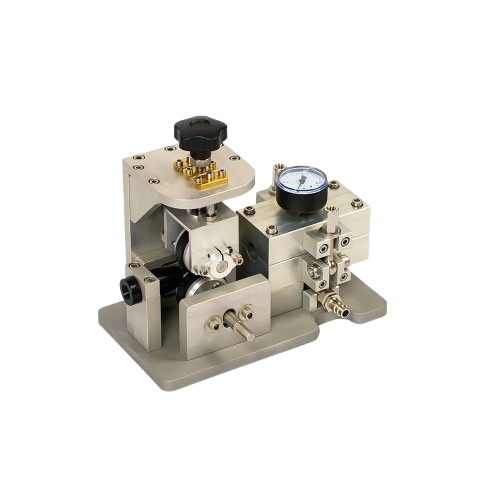

CC-FBM02 Fiber Blowing Machine – Ultimate High-Speed Cable Installation for Microducts

CC-FBM02 Fiber Blowing Machine– Ultimate High-Speed Cable Installer for FTTH & Microducts

High-Performance Fiber Installation

At the core of the CC-FBM02 is a robust drive system capable of blowing fiber cables up to 1,000 meters in a single run, depending on site conditions and duct configuration. Its high-speed pneumatic assist and precision feed system allow for blowing speeds of up to 80 meters per minute, significantly reducing installation time and labor costs. This makes the CC-FBM02 especially suited for large-scale backbone networks, metropolitan area networks, and access networks.

Wide Compatibility and Flexibility

The CC-FBM02 is compatible with fiber cable diameters ranging from 2.5 mm to 16 mm, and duct sizes from 7 mm to 50 mm. This broad compatibility allows users to utilize the same machine across a wide variety of network projects without needing multiple units. It supports both microduct and traditional duct systems, making it versatile enough to handle new builds and upgrades alike.

Smart Design and Easy Operation

Designed with the user in mind, the CC-FBM02 features a user-friendly control panel with digital displays for monitoring speed, pressure, and distance. The intuitive interface ensures that both experienced technicians and new operators can quickly learn and use the machine efficiently. The compact and lightweight design also makes it easy to transport and deploy in tight or remote work areas.

Reliable and Durable Construction

Built from high-quality industrial-grade materials, the CC-FBM02 is designed to withstand the rigors of field use. Its corrosion-resistant aluminum body and reinforced drive system offer durability in harsh outdoor environments. Low-maintenance components and easy-access service points further enhance the machine’s reliability and reduce downtime.

Pneumatic and Electric Power Options

To ensure compatibility with various job site conditions, the FCST-FBM02 supports both electric drive and pneumatic blowing systems. The machine can be powered via a standard 220V electric source or used with portable compressors delivering 0.8–1.2 MPa of pressure. This dual-mode capability gives contractors the flexibility to choose the most suitable power source depending on available infrastructure.

Safety and Control Features

Safety is a key priority in the design of the FCST-FBM02. The machine includes overload protection, emergency stop buttons, and adjustable pressure limits to protect both the fiber cable and the operator. Real-time monitoring helps prevent accidental damage to cables during the blowing process, making installations more secure and reducing costly rework.

Applications

• FTTH (Fiber to the Home)
• FTTB (Fiber to the Building)
• Long-haul fiber deployments
• Urban and rural broadband rollouts
• Military and private fiber networks

Conclusion

The CC-FBM02 Fiber Blowing Machine combines speed, versatility, and precision in one compact system. Its compatibility with a wide range of cables and ducts, along with its durable construction and user-friendly design, make it an essential tool for modern fiber optic installations. Whether you’re working on small-scale city networks or expansive long-haul routes, the CC-FBM02 delivers the performance and reliability you need to get the job done right—every time.

CC-FBM02 Fiber Blowing Machine – Product Specifications
