Call: (02) 8681 9790 (02) 8818 4883
VSOL 2 PON Port GPON/XG/XGS-PON OLT
Model: V1600XG02-W
Spec: 2*GPON or XG-PON or XGS-PON, 2*GE(RJ45)+2*GE(SFP)/10GE(SFP+)
Weight: 2.485kg
Highlights
- High Performance Chipset
- GPON/XG/XGS- PON optional
- Built in WDM1r
- 10GbpsHigh-speed

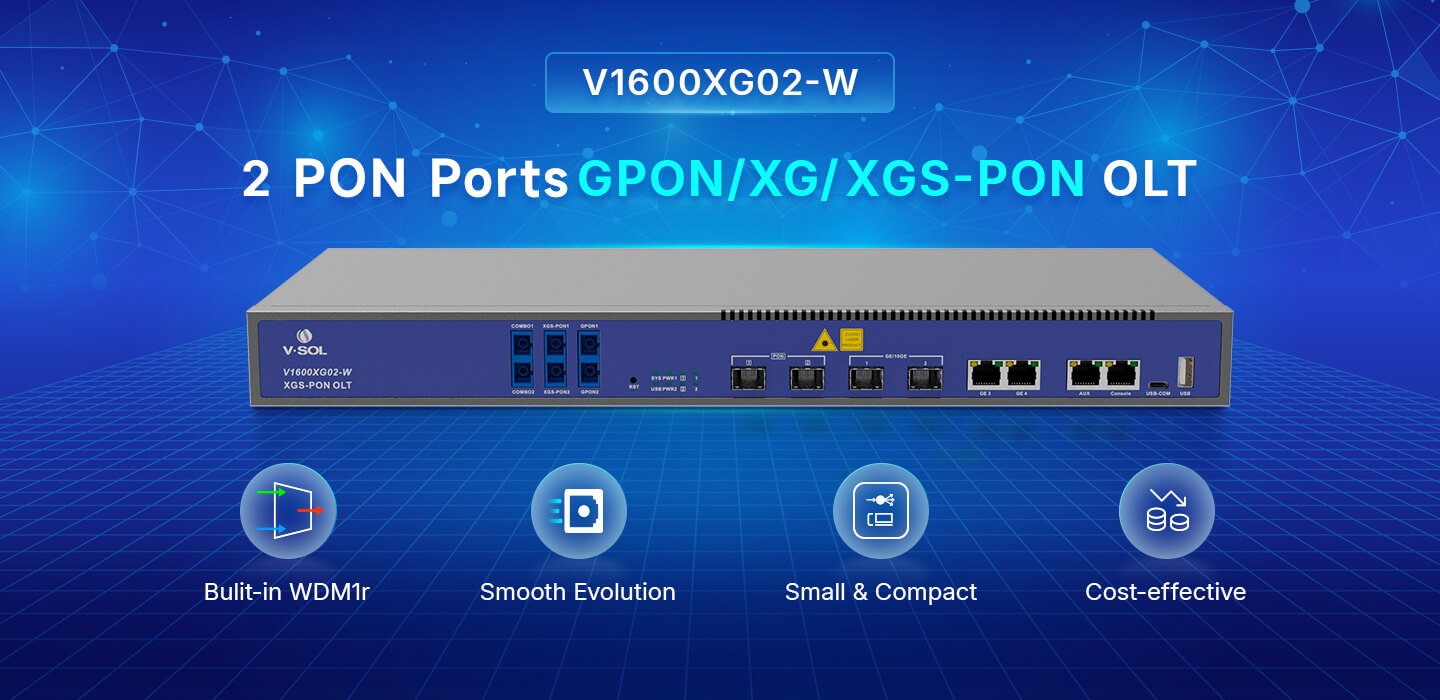

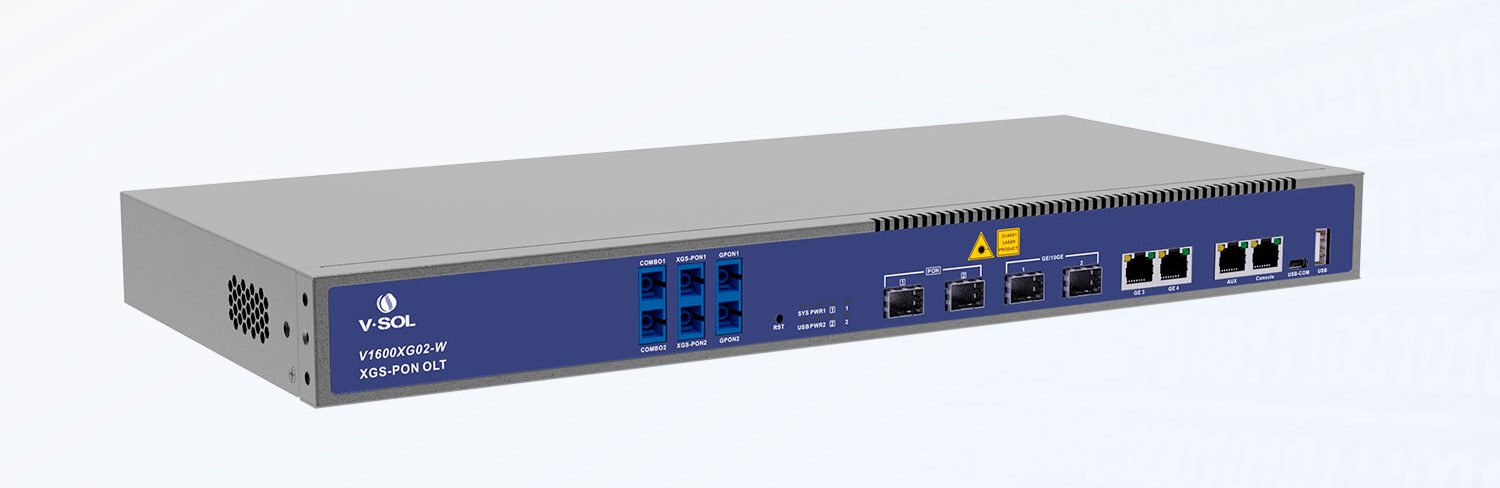

V1600XG02-W is a 1U box OLT equipped with 2 PON ports (optional GPON, XG-PON, XGS-PON) and 2 10GE/GEuplinkoptical ports. With a maximum splitting ratio of 1:256 (1:128 recommended) and a rate of up to 10Gbps, it is designedforsmallbusinesses, stores and property leasing, providing an efficient and flexible fiber access network solution.Withbuilt-inWDM1rcombiner, the device is compatible with existing GPON OLT and ODN networks, realising the coexistence of GPONandXG-PON or XGS-PON, making full use of the existing resources, and enhancing the network scalability and cost-effectiveness.

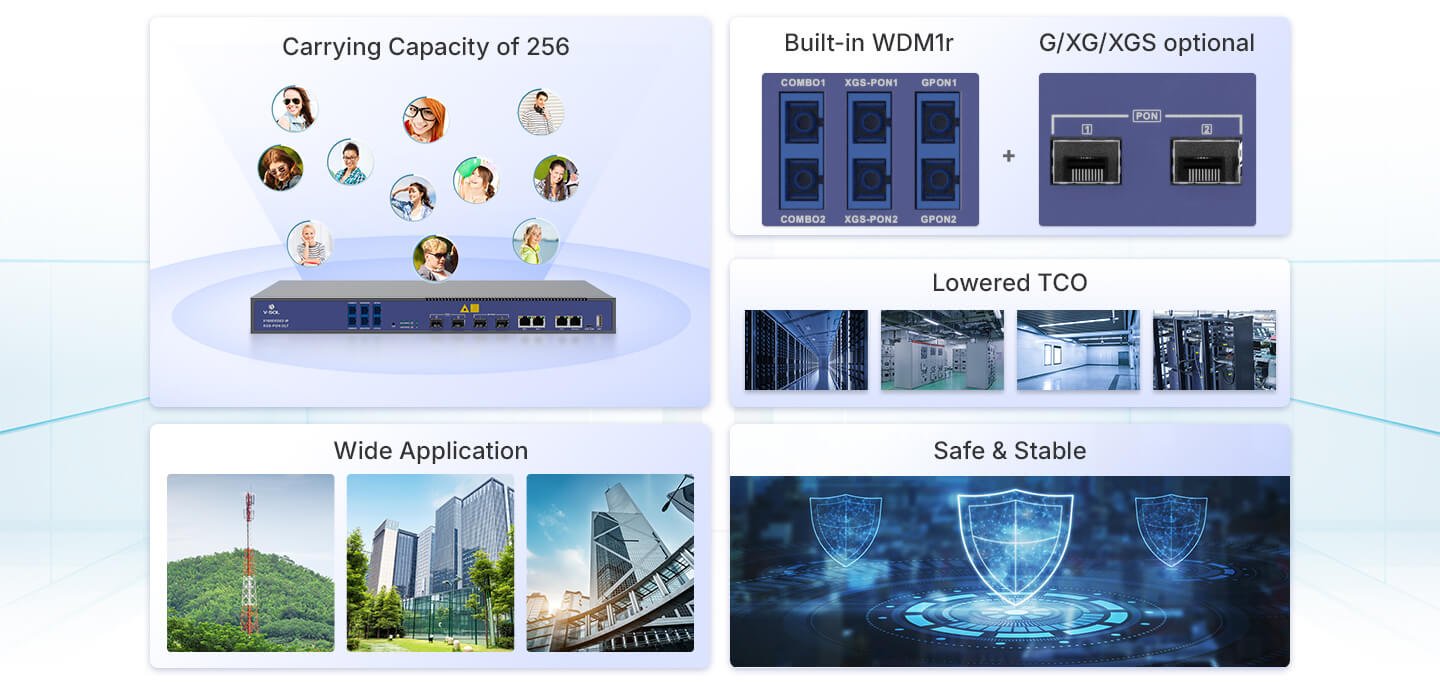

Value 10G PON Upgrade — Compatible & Legacy-Friendly
Technological Innovations
Smooth Evolution to 10G PON
Significant TCO Optimization
Telecom-grade Security

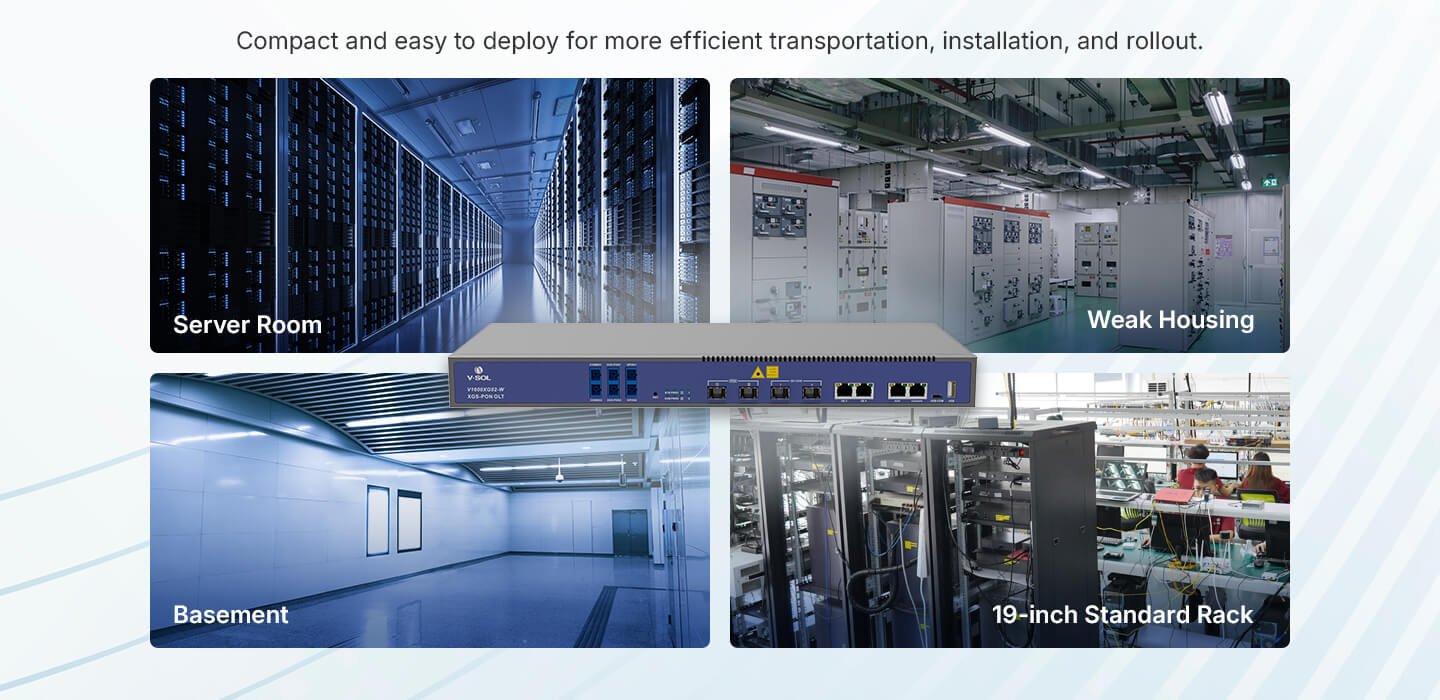

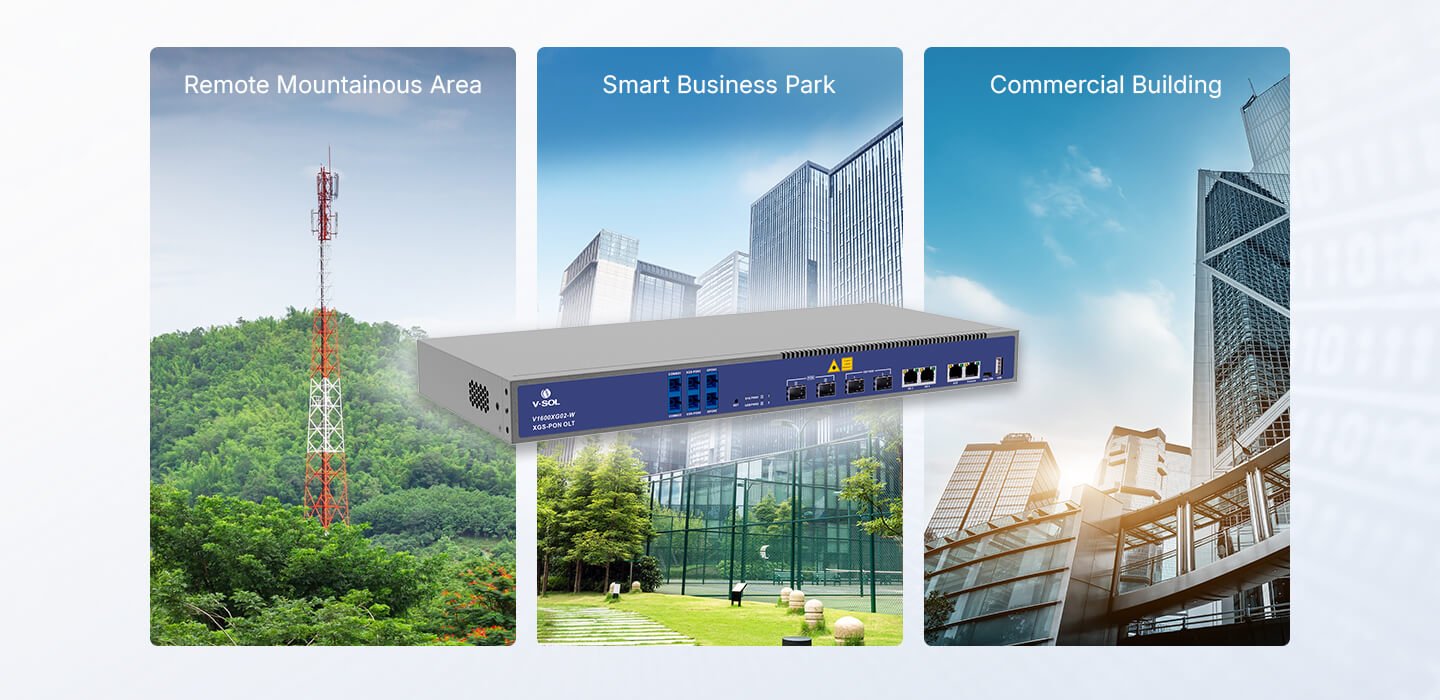

Wide Range of Applications
| V1600XG02-W | ||
| Chassis | Rack | 1U 19Inch Standard Box |
| Uplink Port | QTY | 4 |
| RJ45(GE) | 2 | |
| SFP(GE) / SFP+(10GE) | 2 | |
| XG-PON/ | QTY | 2 |
| XGS-PON Port | Physical Interface | SFP+ Slots |
| Optical splitting ratio | 1:256 (Maximum), 1:128 (Recommended) | |
| Built in WDM1r | GPON Input ports | 2 |
| XGS-PON Input ports | 2 | |
| COMBO Output ports | 2 | |
| Management Ports | 1*10/100/1000M BASE-T out-band LAN port, | |
| 1*CONSOLE port,1*USB-COM, 1*USB2.0 | ||
| Backplane Bandwidth (Gbps) | 208 | |
| Port Forwarding Rate (Mpps) | 124.992 | |
| PON Port Specification | Transmission Distance | 20KM |
| GPON port speed | Upstream 1.244Gbps, Downstream 2.488Gbps | |
| XG-PON port speed | Upstream 2.488Gbps, Downstream 9.953Gbps | |
| XGS-PON port speed | Upstream 9.953Gbps, Downstream 9.953Gbps | |
| Wavelength | GPON: TX 1490nm, RX 1310nm | |
| Wavelength | XG-PON, XGS-PON: TX 1577nm, RX 1270nm | |
| Connector | SC/UPC | |
| Fiber Type | 9/125μm SMF | |
| Power Supply | AC | Working Voltage Range: 100 ~ 240V, |
| Rated Voltage: 110V/220V | ||
| DC | Working Voltage Range: -36 ~ -75V, | |
| Rated Voltage: -48V/-60V | ||
| Management Mode | WEB, Telnet, CLI | |
