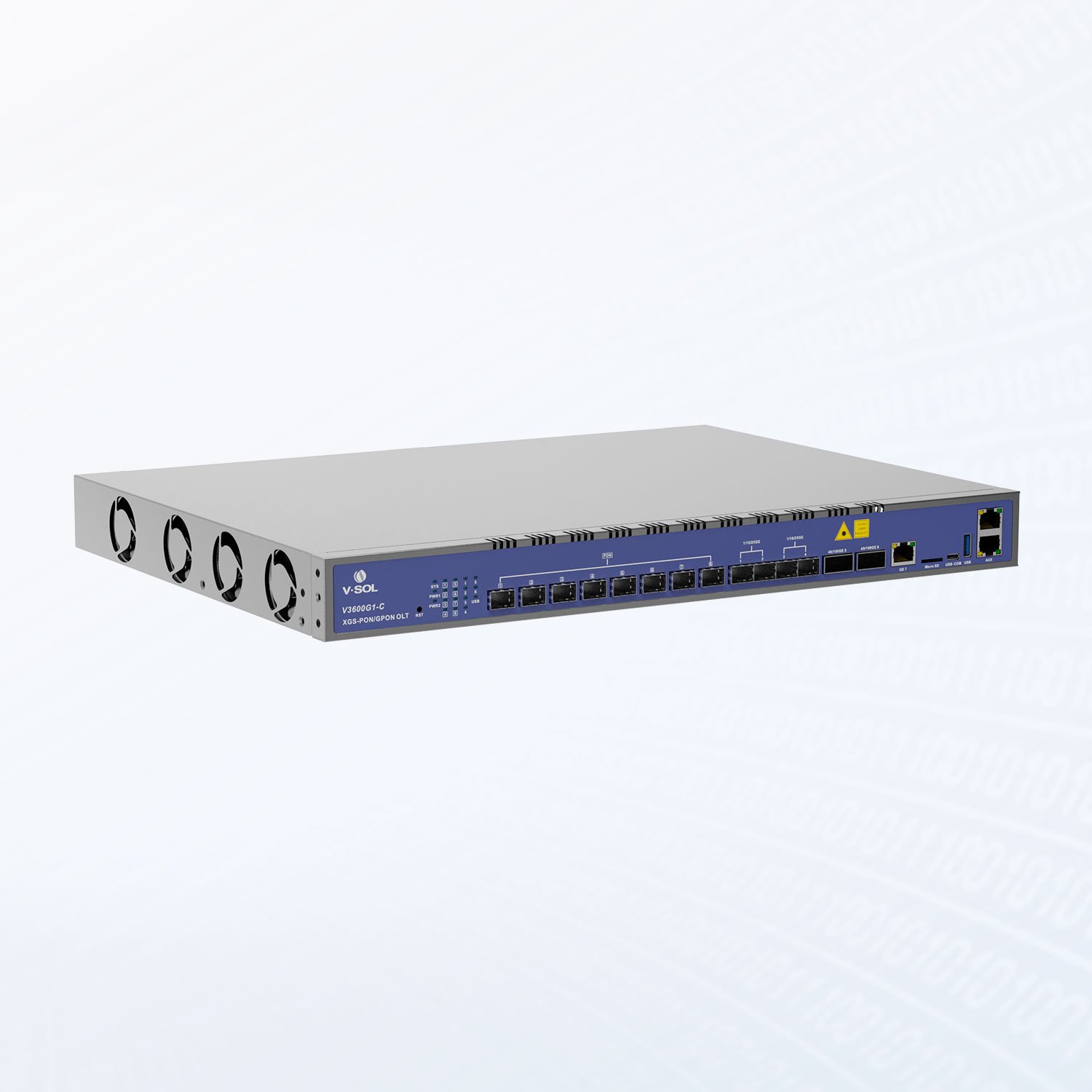

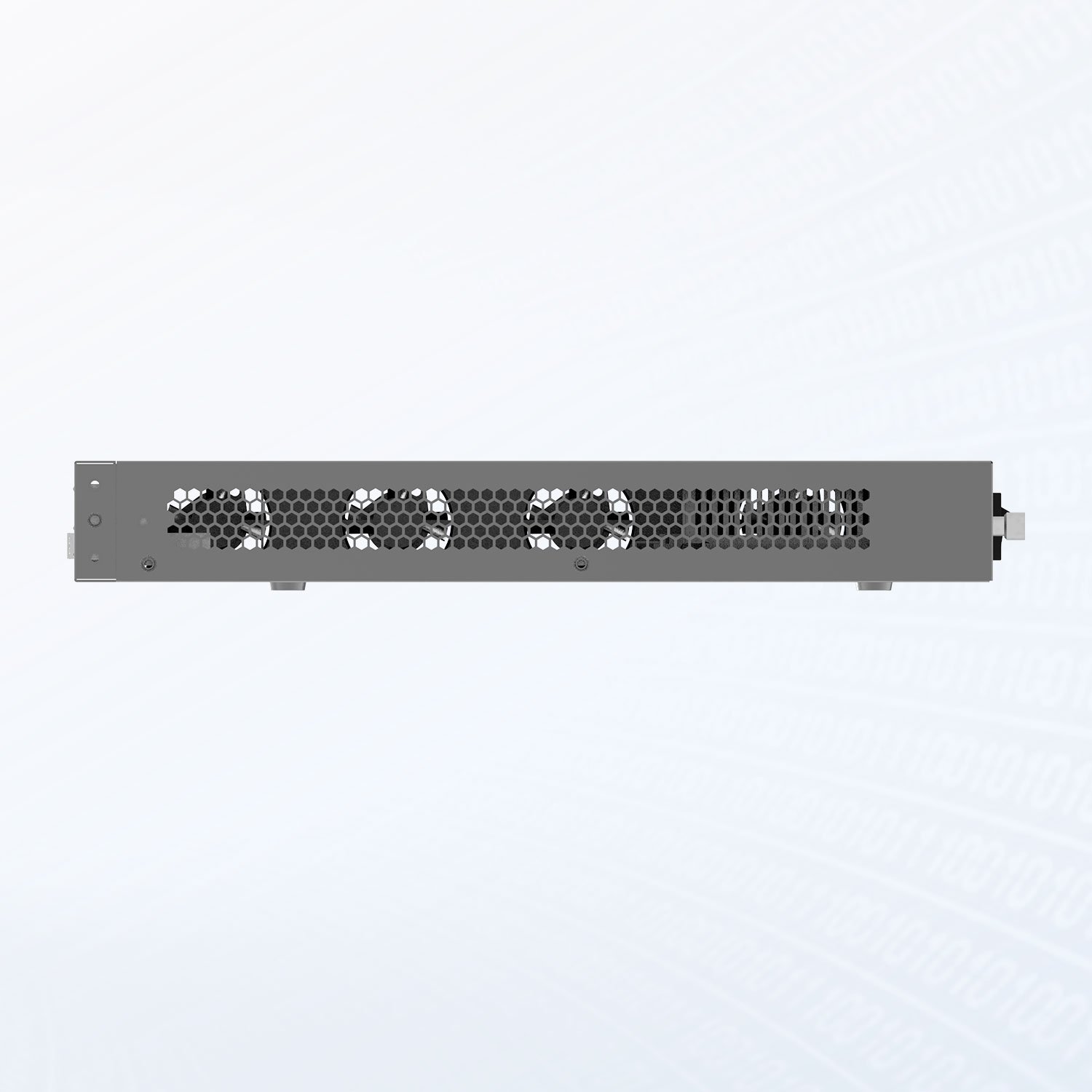

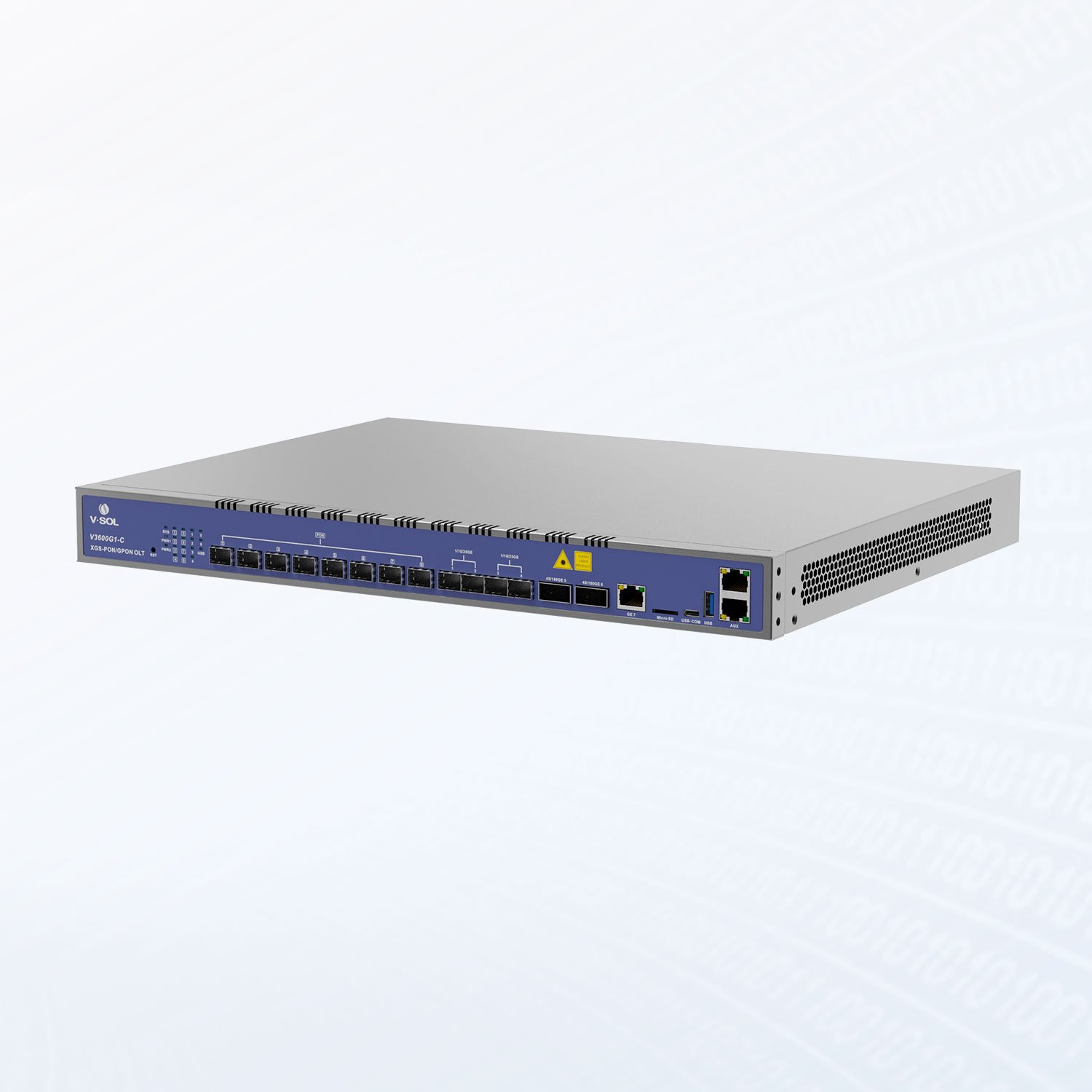

VSOL 8 Port XG(S) Combo PON OLT V3600G1-C
Model: V3600G1-C
Spec: 8*XG(S)-PON/GPON, 1*GE(RJ45)+4*25GE(SFP28)+2*100GE(QSFP28)
Weight: 4.8kg
Highlights
- High Performance Chipset
- 100Gbps QSFP28 High- Speed Uplink
- Supports XGS-PON/XG-PON/GPON Triple mode for Flexible Networking
VSOL V3600G1-C is an innovative 10G GPON OLT product with 8 PON ports and XG (S) – PON&GPON Combo compatibility, and also supports single GPON mode, giving customers more networking possibilities and facilitating customers to flexibly choose the appropriate bandwidth access mode according to current application conditions and future business upgrades. In the early stage of construction, customers can choose to consider reducing investment costs and switch any of the 8 PONs to single GPON mode, and then switch to XG(S)-PON&GPON Combo mode according to business needs in the future; they can also choose the smooth upgrade from GPON to XG(S)-PON, and switch to XG(S)-PON&GPON Combo mode in the early stage, considering the stability of the original business during future upgrades.V3600G1-C provides 1*GE (RJ45) + 4*25GE (SFP28) + 2*100GE (QSFP28) uplink ports to achieve full-speed data forwarding and meet the needs of high-bandwidth, high-speed data transmission and large-scale deployment.
Industry-leading Compact 8-Port 10G Combo PON OLT
Why V3600G1-C?
Flexible Switching of PON Port Modes
Smooth Evolution from GPON to 10G PON
Unprecedented 10G PON Experience
One-stop 10G GPON Combo PON Solution
| Item | V3600G1-C | |
| Chassis | Rack | 1U 19Inch Standard Box |
| Uplink Port | QTY | 8 |
| RJ45(GE) | 1 | |
| SFP28(25GE) | 4 | |
| QSFP28(25GE/50GE/100GE) | 2 | |
| XG(S)-PON/GPON Port | QTY | 8 |
| Physical Interface | SFP+ Slots | |
| Connector Type | XG(S)-PON&GPON Combo mode: N2_C+ | |
| Single GPON mode: Class B+/C/C+/C++/C+++/C++++ | ||
| Optical Splitting Ratio | 1:256(Maximum), 1:128(Recommended) | |
| Management Ports | 1*10/100/1000BASE-T out-band port, | |
| 1*CONSOLE port, 1*USB3.0, | ||
| 1*Type-C USB console, 1*MicroSD port | ||
| Backplane Bandwidth (Gbps) | 1960 | |
| Port Forwarding Rate(Mpps) | 566.928 | |
| XG(S)-PON&GPON Combo Port Specification | Transmission Distance | 20KM |
| XG(S)-PON Port Speed | GPON:Upstream1.244Gbps,Downstream 2.488Gbps | |
| XG-PON: Upstream 2.488Gbps, Downstream 9.953Gbps | ||
| XGS-PON: Upstream 9.953Gbps, Downstream 9.953Gbps | ||
| Wavelength | GPON:Upstream 1310nm, Downstream 1490nm | |
| XG(S)-PON:Upstream: 1270nm Downstream: 1577nm | ||
| Supported PON ports | PON 1~8 (8 PON ports are in XG(S)-PON&GPON Combo mode by default ) | |
| GPON Port Specification | Transmission Distance | 20KM |
| GPON Port Speed | Upstream: 1.244Gbps,Downstream: 2.488Gbps | |
| Wavelength | Upstream: 1310nm, Downstream: 1490nm | |
| Supported PON ports | PON 1~8 (Each PON port can be manually hot-switch to GPON mode) | |
| Lightning Protection | Power Lightning Protection | 6KV |
| Interface Lightning Protection | 4KV | |
| Power Supply | AC | Working Voltage Range: 100~240V, |
| Rated Voltage: 110V/220V | ||
| Number of Fans | 4 | |
| Management Mode | CLI(Console/Telnet/SSH)/WEB/SNMP | |
