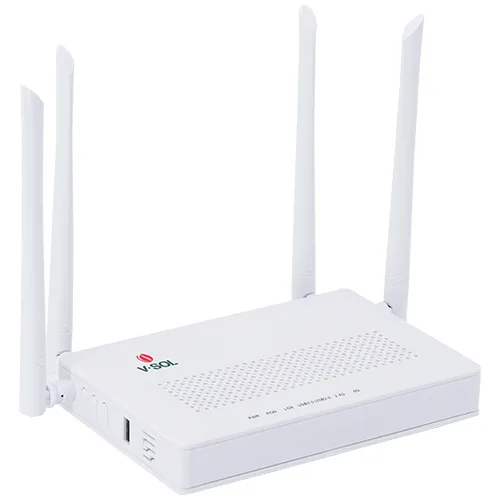

HG3221D VSOL Dual-band Gigabit WiFi 5 Router 4GE+1POTS+WiFi5+USB HGU
Model: HG3221D
Spec: 4*GE+1POTS(2POTS option)+WiFi5+USB 3.0
Weight: 320g
Introduction:
HG3221D-4G1S2NAC/4G2S2NAC (4GE+1POTS/2POTS +WiFi5+USB3.0 XPON HGU ONT ) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services. The ONT is based on high-performance chip solutions (ZTE CPU+MTK WiFi chipset), supports XPON dual-mode technology(EPONandGPON), and also supports IEEE802.11b/g/n/ac WiFi technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONTon the VSOL OLT. The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.
Application Chart:
| ○ Hardware Parameter | |
| Dimension | 178mm×120mm×30mm(L×W×H) |
| Net weight | 0.31Kg |
| Operating condition | Operating temp: -10 ~ +55°C |
| Operating humidity: 5 ~ 95% (non-condensed) | |
| Storing condition | Storing temp: -40 ~ +70°C |
| Storing humidity: 5 ~ 95% (non-condensed) | |
| Power adapter | DC 12V,1.0A, external AC-DC |
| power adaptor | |
| Power supply | ≤12W |
| Interface | 2GE+WiFi5 |
| Indicators | PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G |
| ○ Interface parameter | |
| PON interface | 1XPON port(EPON PX20+ and GPON Class B+) |
| SC single mode, SC/UPC connector | |
| TX optical power: 0～+4dBm | |
| RX sensitivity: -27dBm | |
| Overload optical power: -3dBm(EPON) or -8dBm (GPON) | |
| Transmission distance: 20KM | |
| Wavelength: TX 1310nm, RX1490nm | |
| User interface | 2×GE, Auto-negotiation,RJ45 ports |
| WLAN interface | Compliant with IEEE802.11b/g/n/ac |
| 2.4GHz Operating frequency: 2.4000-2.4835GHz | |
| 5.0GHz Operating frequency: 5.150-5.825GHz | |
| Support MIMO, rate up to 1.167Gbps | |
| WiFi: 2.4GHz( 2T2R ), 5.8GHz( 2T2R ), 5dBi antenna, support: multiple SSID | |
| TX power: 11n–22dBm/11ac–24dBm | |
| ○ Function Data | |
| Management | OAM/OMCI, Telnet, WEB, TR069 |
| Support full management of ONT functions by VSOL OLT | |
| Internet connection | Support Bridge, Route and Bridge/Route mixed mode |
| Multicast | Support IGMP v1/v2/v3 |
| Support IGMP Proxy and MLD Proxy | |
| Support IGMP Snooping and MLD Snooping | |
| VLAN | Support VLAN tag mode |
| Support VLAN trunk mode | |
| Support VLAN translation | |
| Data Service Functions | Full speed non-blocking switching |
| 2K MAC address table | |
| 8 full range VLAN ID | |
| Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc | |
| Support auto polarity detection of Ethernet ports (AUTO MDIX) | |
| Integrated IEEE802.1p QoS with four level priority queues | |
| Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy | |
| Wireless | Support Wireless AP mode |
| Support 802.11 b/g/n/ac | |
| Support Multiple SSID | |
| Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) | |
| Modulation type: DSSS, CCK and OFDM | |
| Encoding scheme: BPSK, QPSK, 16QAM and 64QAM, 256QAM | |
| Support EasyMesh protocol | |
| QoS | Support 4 queues |
| Support SP and WRR | |
| Support 802.1P and DSCP | |
| L3 | Support IPv4, IPv6 and IPv4/IPv6 dual stack |
| Support DHCP/PPPOE/Static | |
| Support Static route | |
| Support DHCP Server | |
| Support NAT/DMZ/DDNS | |
| Support Virtual Server | |
| Security | Support Firewall |
| Support Mac filter Based on MAC or URL | |
| Support ACL | |
