Ubiquiti Dream Machine Pro (UDM Pro) All-in-One Enterprise Network Solution
Order Now

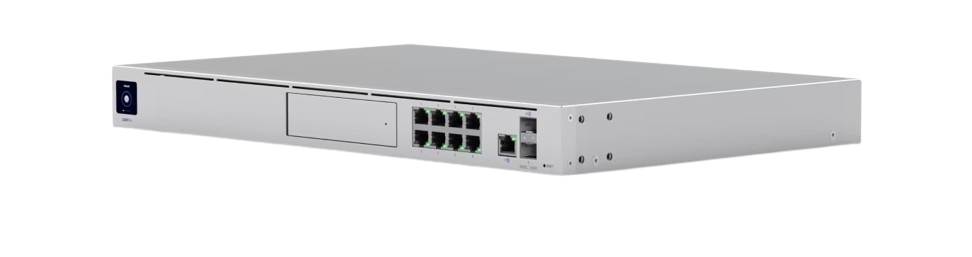

Ubiquiti UniFi Dream Machine Pro (UDM Pro) – All-in-One Enterprise Network Solution
In the rapidly evolving world of networking, businesses and advanced home users demand solutions that are secure, scalable, and easy to manage. The Ubiquiti UniFi Dream Machine Pro (UDM Pro) answers that call by combining enterprise-grade networking features into a single, streamlined device. Part of the trusted UniFi ecosystem, the UDM Pro delivers powerful routing, advanced security, integrated network management, and optional video surveillance capabilities — all in one 1U rack-mountable unit.
... people are viewing this right now
Compare
Ubiquiti Dream Machine Pro (UDM Pro) – All-in-One Enterprise Network Solution
In the rapidly evolving world of networking, businesses and advanced home users demand solutions that are secure, scalable, and easy to manage. The Ubiquiti UniFi Dream Machine Pro (UDM Pro) answers that call by combining enterprise-grade networking features into a single, streamlined device. Part of the trusted UniFi ecosystem, the UDM Pro delivers powerful routing, advanced security, integrated network management, and optional video surveillance capabilities — all in one 1U rack-mountable unit.
All-in-One Design for Simplicity and Power
The UDM Pro is designed to replace multiple standalone devices by integrating a high-performance security gateway, managed switch, network controller, and UniFi Protect NVR into a single device. This all-in-one approach reduces clutter, simplifies setup, and improves network efficiency.
At the heart of the UDM Pro is a powerful quad-core ARM Cortex-A57 processor and 4 GB of RAM, ensuring it can handle demanding workloads, including deep packet inspection (DPI), intrusion detection and prevention (IDS/IPS), VPN throughput, and more. It’s built for businesses, campuses, branch offices, and advanced home users who need enterprise-level performance without enterprise-level complexity.
Advanced Routing and Security Features
The UDM Pro includes a fully functional enterprise-grade security gateway with advanced firewall capabilities, VLAN support, VPN server/client capabilities, and traffic management tools. One of its key security features is its support for Threat Management, which includes IDS/IPS powered by Suricata, geo-IP filtering, and deep packet inspection — all configurable within the intuitive UniFi interface.
It also features a built-in 3.5″ HDD bay (plus support for a 2.5″ SSD for faster UniFi Protect performance), making it a perfect NVR solution for those looking to run UniFi Protect for local video surveillance without needing a separate device. With expandable storage and integrated support, the UDM Pro simplifies surveillance deployment.
Integrated UniFi Controller
Unlike older UniFi devices that required a separate Cloud Key or server for controller access, the UDM Pro features a built-in UniFi Network Controller, allowing users to manage and monitor their network through a web interface or mobile app. From this dashboard, admins can control UniFi Access Points, Switches, and Protect cameras across multiple sites — all from one interface.
This centralized control offers in-depth analytics, client management, network topology mapping, and powerful configuration options, making network management easier and more efficient for both small IT teams and individual power users.
High-Speed Connectivity and Redundancy

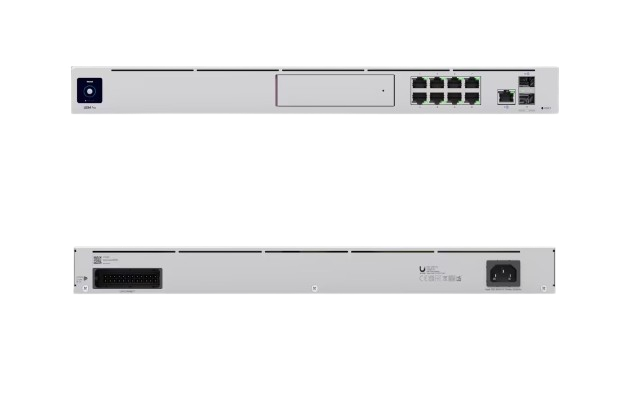

In terms of ports and performance, the UDM Pro is equipped with:
- 1x 10G SFP+ WAN port
- 1x 10G SFP+ LAN port
- 8x Gigabit RJ45 LAN ports
- 1x Gigabit RJ45 WAN port
The support for 10G SFP+ uplinks enables high-speed connectivity for fiber internet or high-throughput LAN environments. Dual WAN ports allow for load balancing or failover configurations, ensuring maximum uptime for mission-critical applications.
Scalable and Future-Proof
The UDM Pro is ideal for growing networks. It supports thousands of connected devices across multiple VLANs and subnets, and easily integrates with the full suite of UniFi devices, including wireless access points, managed switches, surveillance cameras, and more.
As your network expands, the UDM Pro grows with you — no need to rip and replace. Its future-ready hardware and ongoing firmware updates from Ubiquiti ensure that your investment continues to deliver long-term value.
Key Benefits of the UDM Pro
- All-in-one solution for routing, security, network management, and surveillance
- Powerful quad-core CPU and enterprise-grade performance
- Integrated UniFi Controller and UniFi Protect NVR
- 10G WAN/LAN support for ultra-fast throughput
- Built-in Threat Management with IDS/IPS and DPI
- Rack-mountable 1U form factor for clean installations
Ubiquiti UniFi Dream Machine Pro (UDM Pro) – Specifications
| Specification | Details |
|---|---|
| Model | UniFi Dream Machine Pro (UDM Pro) |
| Processor | Quad-Core ARM Cortex-A57 1.7 GHz |
| RAM | 4 GB DDR4 |
| Storage | 16 GB eMMC (Internal) + 1x 3.5″ HDD bay (optional) |
| Network Interfaces | – 1x 10G SFP+ WAN port |
| – 1x 10G SFP+ LAN port | |
| – 1x Gigabit RJ45 WAN port | |
| – 8x Gigabit RJ45 LAN ports | |
| Power | 12V DC Input (Included power adapter) |
| Power Consumption | Max. 38W |
| Form Factor | 1U Rack-Mountable |
| UniFi Controller | Built-in UniFi Network Controller |
| Security Features | IDS/IPS, Deep Packet Inspection (DPI), Geo-IP Filtering |
| VPN Support | Site-to-Site VPN, L2TP, OpenVPN |
| Surveillance Support | UniFi Protect NVR with 1x HDD bay for 3.5″ drives |
| Ports for Expansion | HDD Bay supports 3.5″ SATA HDD, optional 2.5″ SSD for Protect |
| Supported WAN Speeds | Up to 10 Gbps via SFP+ |
| LED Indicators | Status LEDs for Power, LAN, WAN, SFP, HDD |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.42″ x 11.24″ x 1.72″) |
| Weight | Approx. 3.3 kg (7.28 lbs) |
| Certifications | CE, FCC, IC |
| Management | Web UI, UniFi Mobile App, UniFi Network Application |
| Warranty | 1 Year Limited Warranty (varies by region) |
