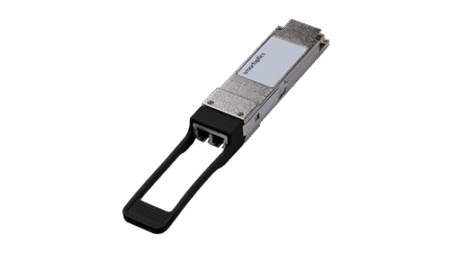

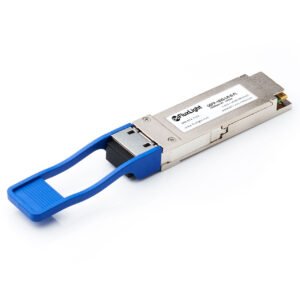

C-CORP 100G QSFP28 OPTICAL TRANCEIVERS
Order Now
C-CORP 100G QSFP28 OPTICAL TRANCEIVERS
Functions and features:
- Hot-swappable SFP package
- Compliant with QSFP+ MSA standard
- 4 independent full-duplex channels
- VCSEL/DFB/EML laser
- Single channel supports up to 25.78 Gb/s
- MPO-12/dual-fiber LC interface
- Built-in digital diagnostic function +3.3V single power supply
- Operating temperature range: 0-70 °C RoHS compliant
- MPO-12/dual-fiber LC interface
100G QSFP28
C-CORP 100G QSFP28 OPTICAL TRANCEIVERS


Functions and features 100G QSFP28
- Hot-swappable SFP package
- Compliant with QSFP+ MSA standard
- 4 independent full-duplex channels
- VCSEL/DFB/EML laser
- Single channel supports up to 25.78 Gb/s
- MPO-12/dual-fiber LC interface
- Built-in digital diagnostic function +3.3V single power supply
- Operating temperature range: 0-70 °C RoHS compliant
- MPO-12/dual-fiber LC interface
| Package | Part No. | Data Rate | Wavelength | Distance | Source | Output Power (dBm) | Sensitivity (dBm) | Connector | Temp(℃) |
| QSFP28 CWDM4 | C-CORP-Q28-C31L-2D | 100G | 1270/1290/1310/1330 | 2KM | CWDM DML / PIN | -6.5~2.5 | ≤-11.5 | Duplex LC | 0-70 |
| QSFP28 CWDM4 | C-CORP-Q28-C31L-10D | 100G | 1270/1290/1310/1330 | 10KM | CWDM DML / PIN | -6.5~2.5 | ≤-13 | Duplex LC | 0-70 |
| QSFP28 PlR4 | C-CORP-Q28-S31M-2D | 100G | 1310nm | 2KM | LAN WDM DML/ PIIN | -9~2 | ≤-13 | MPO | 0-70 |
| QSFP28 PLR4 | C-CORP-Q28-S31M-10D | 100G | 1310nm | 10kM | LAN WDM DML/ PIIN | -6.5~2.5 | ≤-13 | MPO | 0-70 |
| QSFP28 LR4 | C-CORP-Q28-S31L-10D | 100G | 1310nm | 10km | LAN WDM DFB / PIN | -4~5 | ≤-9.5 | Duplex LC | 0-70 |
| QSFP28 LR4 | C-CORP-Q28-S31L-20D | 100G | 1310nm | 20km | LAN WDM DFB / PIN | -1~4.5 | ≤-10.5 | Duplex LC | 0-70 |
| QSFP28 ER4 | C-CORP-Q28-S31L-40D | 100G | 1310nm | 40km | LAN WDM EML / APD | -1~4.5 | ≤-18 | Duplex LC | 0-70 |
| QSFP28 ZR4 | C-CORP-Q28-S31L-80D | 100G | 1310nm | 80km | LAN WDM EML / APD | -1~4.5 | ≤-18 | Duplex LC | 0-70 |
| QSFP28 ZR4 | C-CORP-Q28-S31L-100D | 100G | 1310nm | 100km | LAN WDM EML / APD | -1~4.5 | ≤-18 | Duplex LC | 0-70 |
| QSFP28 SWDM4 | C-CORP-Q28-M85L-01D | 100G | 850nm | 100m | VCSEL/PIN | -8~3 | ≤-10 | Duplex LC | 0-70 |
| QSFP28 SR4 | C-CORP-Q28-M85M-01D | 100G | 850nm | 100m | VCSEL/PIN | -8~3 | ≤-10 | MPO | 0-70 |
| QSFP28 BIDI | C-CORP-Q28-B23L-10D | 100G | Tx1270nm/Rx1330nm | 10kM | EML+PIN | -1.4~4.5 | ≤-6.1 | LC | 0-70 |
| QSFP28 BIDI | C-CORP-Q28-B32L-10D | 100G | Tx1330nm/Rx1270nm | 10kM | EML+PIN | -1.4~4.5 | ≤-6.1 | LC | 0-70 |
| QSFP28 BIDI | C-CORP-Q28-B23L-20D | 100G | Tx1291nm/Rx1311nm | 20km | EML+PIN | -0.2~6.6 | ≤-7.6 | LC | 0-70 |
| QSFP28 BIDI | C-CORP-Q28-B32L-20D | 100G | Tx1311nm/Rx1291nm | 20km | EML+PIN | -0.2~6.6 | ≤-7.6 | LC | 0-70 |
| QSFP28 BIDI | C-CORP-Q28-B04L-40D | 100G | Tx1304nm/Rx1309nm | 40km | EML+APD | 1.5~7.1 | ≤-14 | LC | 0-70 |
| QSFP28 BIDI | C-CORP-Q28-B09L-40D | 100G | Tx1309nm/Rx1304nm | 40km | EML+APD | 1.5~7.1 | ≤-14 | LC | 0-70 |
| QSFP28 BIDI | C-CORP-Q28-B28L-80D | 100G | Tx1280nm/Rx1300nm | 80km | EML+PIN | 1~7 | ≤-27 | LC | 0-70 |
| QSFP28 BIDI | C-CORP-Q28-B30L-80D | 100G | Tx1300nm/Rx1280nm | 80km | EML+PIN | 1~7 | ≤-27 | LC | 0-70 |
Explore more products when you click here.
