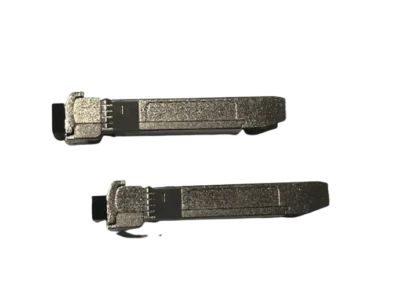

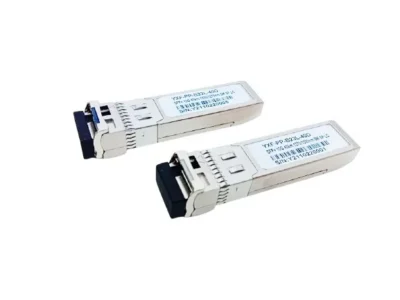

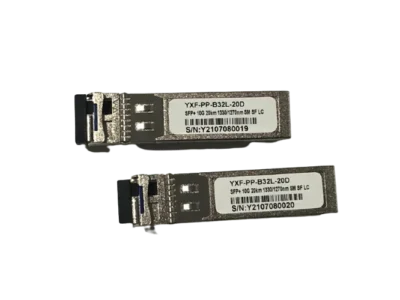

10G SFP+ BIDI 20km 1270nm/1330nm LC Connector Price WDM Module Transceiver 10G SFP 20km
Applications
l High-speed storage area networks
l Computer cluster cross-connect
l Custom high-speed data pipes
Compliance
l Compliant with IEEE 802.3ae-2002
l Compliant with MSA SFF-8472
l Compliant with MSA SFF-8431
Specification
| Absolute Maximum Ratings | |||||
Parameter | Symbol | Min. | Max. | Unit | Notes |
| Storage Temperature | TS | -40 | +85 | ℃ | |
| Supply Voltage | VCC3 | 0 | 3.6 | V | |
| Relative Humidity | RH | 5 | +85 | % | Note1 |
| Rx Input Average Power | Pmax | – | +1.5 | dBm | |
