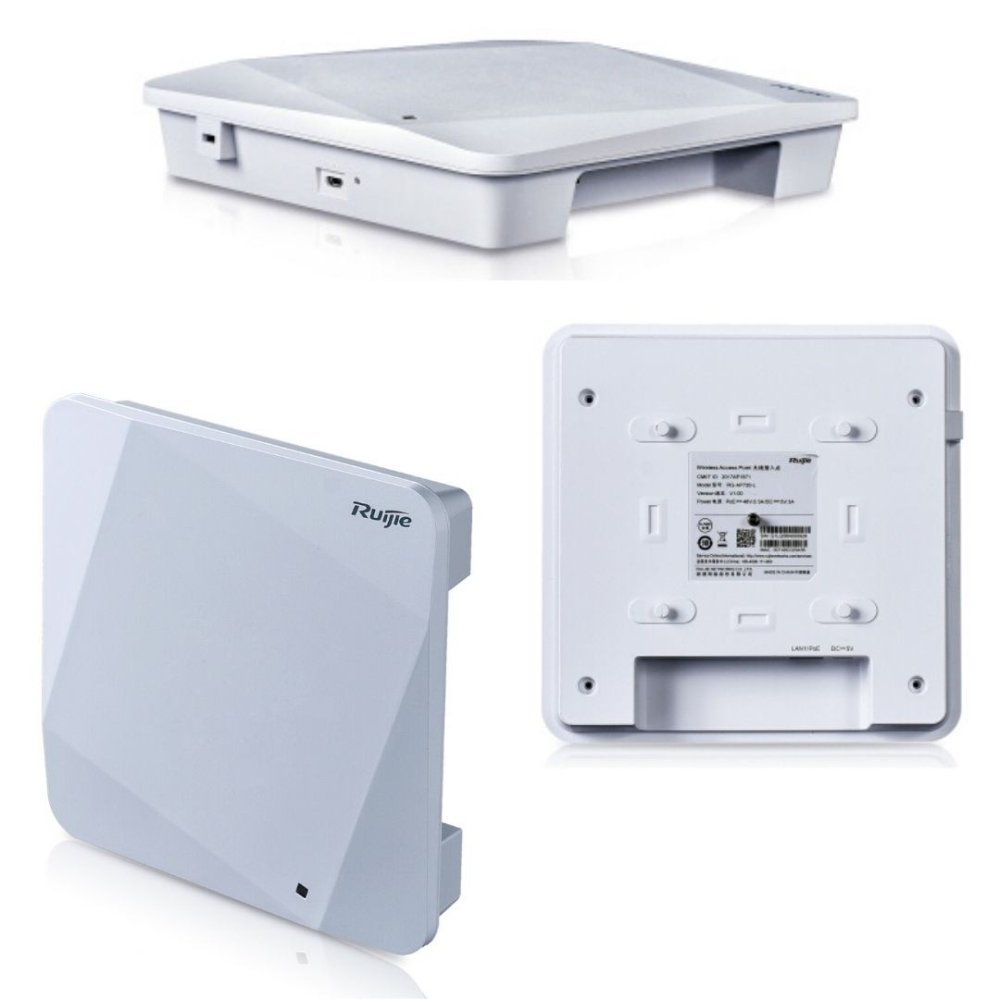

RG-AP720-L, Wi-Fi 5 Dual-Radio 1.167 Gbps Indoor AP
Order Now
Call for Price
Highlight Features
Discover the RG-AP720-L, a high-performance wireless access point designed for seamless connectivity, advanced security, and easy deployment in enterprise environments.
- Dual Radios, Combined Rate Up to 1.167 Gbps
- Signals Never Drop with Seamless Roaming
- Auto Configuration, Simplified Provisioning, Easy Deployment
- Unified Cloud Management, Intelligent Tuning, Easy O&M
RG-AP720-L, Wi-Fi 5 Dual-Radio 1.167 Gbps Indoor AP
Discover the RG-AP720-L, a high-performance wireless access point designed for seamless connectivity, advanced security, and easy deployment in enterprise environments.
Features:
- Dual-radio indoor wireless access point
- Data rate of up to 1,167 Mbps
- Compliance with IEEE 802.11a/b/g/n and 802.11ac Wave2 standards
- Fat/Fit/Cloud mode switchover
- One uplink electrical port
- IEEE 802.3af-compliant (PoE) power supply and DC power supply
Hardware Specifications
| Dimensions and Weight | RG-AP720-L |
| Unit dimensions(W x D x H) | 194 mm x 194 mm x 37 mm (7.64 in. x 7.64 in. x 1.46 in.) |
| Shipping dimensions(W x D x H) | 463 mm x 370 mm x 240 mm (18.23 in. x 14.57 in. x 9.45 in.) |
| Unit weight | Main unit: 0.42 kg (0.93 lbs) Mounting bracket: 0.07 kg (0.15 lbs) |
| Shipping weight | 7.31 kg (16.12 lbs) |
| Mounting | Wall/Ceiling-mount (a mounting bracket is delivered with the main unit) |
| Lock option | Kensington lock and securing latch |
| Wi-Fi Radio | RG-AP720-L |
| Radio design | Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO |
| Operating frequencies | Radio 1, 802.11b/g/n: ● 2.400 GHz to 2.4835 GHz, ISM Radio 2, 802.11a/n/ac: ● 5.150 GHz to 5.250 GHz, U-NII-1 ● 5.250 GHz to 5.350 GHz, U-NII-2A ● 5.470 GHz to 5.725 GHz, U-NII-2C ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance. |
| Data rates | Combined peak data rate: 1.167 Gbps 2.4 GHz radio ● Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2SS HT40 802.11n client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 144.4 Mbps wireless data rate to individual 2SS HT20 802.11n client devices (typical) 5 GHz radio ● Two spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate to individual 2SS HT80 802.11ac client devices (typical) |
| Data rate set | The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80) |
| Packet aggregation | 802.11n/ac: A-MPDU and A-MSDU |
| Antenna type | Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas) |
| Antenna gain | 2.4 GHz: 4.3 dBi 5 GHz: 5.7 dBi |
| Maximum transmit power | 2.4 GHz radio: 26 dBm (23 dBm per chain) 5 GHz radio: 26 dBm (23 dBm per chain) Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.
Thailand 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm 5.470 GHz to 5.725 GHz. EIRP ≤ 30 dBm 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm |
| Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) |
| Modulation types | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| Wi-Fi Radio Frequency Performance | RG-AP720-L | ||
| Frequency Band and Protocol | Data Rate | Maximum Transmit Power per Transmit Chain | Maximum Receive Sensitivity per Receive Chain |
| 2.4 GHz, 802.11b | 1 Mbps | 23 dBm | –91 dBm |
| 2 Mbps | 23 dBm | –89dBm | |
| 5.5 Mbps | 23 dBm | –88 dBm | |
| 11 Mbps | 23 dBm | –85 dBm | |
| 2.4 GHz, 802.11g | 6 Mbps | 23 dBm | –89 dBm |
| 24 Mbps | 23 dBm | –80 dBm | |
| 36 Mbps | 21 dBm | –76 dBm | |
| 54 Mbps | 19 dBm | –70 dBm | |
| 2.4 GHz, 802.11n (HT20) | MCS0 | 21 dBm | –83 dBm |
| MCS7 | 19 dBm | –65 dBm | |
| 2.4 GHz, 802.11n (HT40) | MCS0 | 21 dBm | –80 dBm |
| MCS7 | 18 dBm | –62 dBm | |
| 5 GHz, 802.11a | 6 Mbps | 23 dBm | –89 dBm |
| 24 Mbps | 23 dBm | –80 dBm | |
| 36 Mbps | 21 dBm | –76 dBm | |
| 54 Mbps | 19 dBm | –70 dBm | |
| 5 GHz, 802.11n (HT20) | MCS0 | 20 dBm | –83 dBm |
| MCS7 | 18 dBm | –65 dBm | |
| 5 GHz, 802.11n (HT40) | MCS0 | 19 dBm | –80 dBm |
| MCS7 | 18 dBm | –62 dBm | |
| 5 GHz, 802.11ac (VHT20) | MCS0 | 20 dBm | –82 dBm |
| MCS9 | 17 dBm | –57 dBm | |
| 5 GHz, 802.11ac (VHT40) | MCS0 | 19 dBm | –79 dBm |
| MCS9 | 16 dBm | –54 dBm | |
| 5 GHz, 802.11ac (VHT80) | MCS0 | 19 dBm | –76 dBm |
| MCS9 | 16 dBm | –51 dBm | |
| 5 GHz, 802.11n (HT20) | MCS0 | 20 dBm | –83 dBm |
| MCS11 | 18 dBm | –65 dBm | |
| 5 GHz, 802.11n (HT40) | MCS0 | 19 dBm | –80 dBm |
| MCS11 | 18 dBm | –62 dBm | |
| Ports Specifications | RG-AP720-L |
| Fixed service port | 1 x 10/100/1000BASE-T port ● In compliance with IEEE 802.3af standard (PoE) ● Auto MDI/MDIX crossover ● PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher) ● 802.3az EEE |
| Fixed management port | 1 x RJ45 console port (serial console port) |
| Status LED | 1 x multi-color system status LED |
| Button | 1 x Reset button ● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 3 seconds. Then the device restores to factory settings. |
| Power Supply and Consumption | RG-AP720-L |
| Input power supply | The AP supports the following two power supply modes: ● 12 V DC/1.5 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. ● PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af standard (PoE). Note: ● If both DC power and PoE are available, DC power is preferred. |
| Overall power consumption | Maximum power consumption: 12.95 W ● DC powered: 12.95 W ● PoE powered (802.3af): 12.95 W ● PoE+ powered (802.3at): 12.95 W ● PoE++ powered (802.3bt): 12.95 W ● Idle mode: 6 W |
| Environment and Reliability | RG-AP720-L |
| Temperature | Operating temperature: –10°C to +50°C (14°F to +122°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F). |
| Humidity | Operating humidity: 5% RH to 95% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) |
| Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| Regulatory Compliance | RG-AP720-L |
| Security regulations | IEC 62368-1 EN 62368-1 |
| EMC regulations | EN 55032 EN 55035 EN IEC 61000-3-2 EN 61000-3-3 EN 301 489-1 EN 301 489-3 EN 301 489-17 |
| Radio frequency regulations | EN 300 328 EN 301 893 EN 300 440 EN 62311 EN IEC 62311 EN 50665:2017 FCC Part 15 |
Software Specifications
| Applicable Software Version | RG-AP720-L |
| Applicable software version | RGOS 11.1(9)B1P30 or higher |
| WLAN | RG-AP720-L |
| Recommended maximum number of active devices per AP | 64 |
| Maximum number of associated clients | 256 Note The number of associated clients varies according to the environment. |
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| STA management | SSID hiding Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Remote intelligent perception technology (RIPT) Intelligent load balancing based on the STA quantity or traffic |
| STA limiting | SSID-based STA limiting Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Security | RG-AP720-L |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS) PSK, web, 802.1X and MSCHAPv2 authentication SMS authentication (used with the RG-WS series wireless access controller) MAB authentication (used with the RG-WS series wireless access controller) WPA (TKIP), WPA-PSK, WPA2, WEP (64/128-bit) |
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| ACL | Dynamic ACL assignment based on 802.1X authentication (used with the AC) |
| CPP | Supported |
| NFPP | Supported |
| Routing and Switching | RG-AP720-L |
| IP service | Static IPv4 address IPv4 DHCP client FTP ALG and DNS ALG |
| Multicast | Multicast Multicast-to-unicast conversion |
| IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping, IPv6 Tracert |
| IP routing | IPv4/IPv6 static routing |
| VPN | PPPoE client |
| Management | RG-AP720-L |
| Network management | Fault inspection and alarm Information statistics and logging SNMPv1/v2c/v3 NTP Server and NTP Client |
| Network management platform | Ruijie Cloud Web-based management (Eweb) |
| User access management | Console, Telnet, SSH, SNMP and TFTP-based management |
| Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC. When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet. When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
