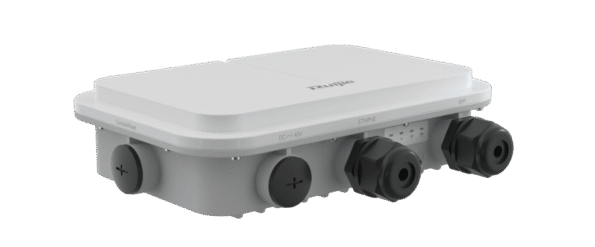

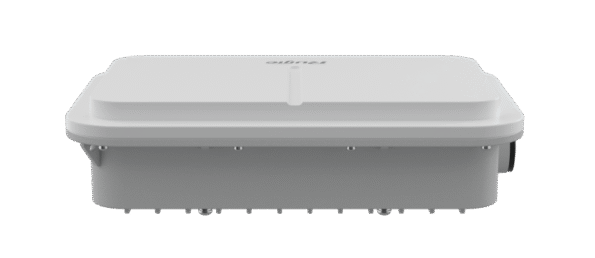

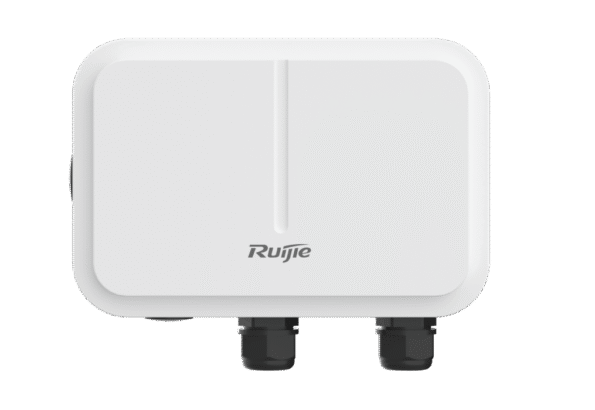

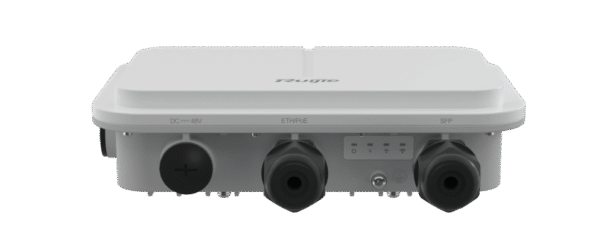

RG-AP680-L, Wi-Fi 6 Dual-Radio 2.976 Gbps Outdoor AP
Order Now
Call for Price
RG-AP680-L, Wi-Fi 6 Dual-Radio 2.976 Gbps Outdoor AP
Highlight Features
- Industrial-grade product design, IP68 rating, Operating temperature: –40°C to +65°C
- High-power omnidirectional antennas with 360° coverage to every corner
- Upgraded to Wi-Fi 6, a combined data rate of up to 2.976 Gbps
- Ruijie cloud management, intelligent optimization
RG-AP680-L, Wi-Fi 6 Dual-Radio 2.976 Gbps Outdoor AP
Designed for Beach
Ruijie Cloud Managed Series Outdoor AP RG-AP680-L
Highlight Features
- Wi-Fi 6 dual-radio wireless access point
- Compliance with IEEE 802.11a/b/g/n/ac and 802.11ax standards
- Built-in omnidirectional antennas
- Up to four spatial streams
- Data rate of up to 2.976 Gbps
- Fat/Fit/Cloud mode switchover
- Electrical and optical uplink ports
- IEEE 802.3af/at-compliant (PoE/PoE+) power supply and DC power supply (48 V/0.35 A)
Hardware Specifications
The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.
Industrial-Grade Product Design Ensuring Stable Running in Harsh Environments
- Corrosion Protection – Comply with salt spray prevention standards, ensuring stable running in saline, warm and humid environment.
- IP68 Rating – IP68 rating protection against dust and water, avoiding liquid and sand intrusion.
- 6 kV Lightning Protection – Built-in high-standard lightning protectors, defending against 6 kV surge and ensuring stable running in bad weather such as thunderstorms.
- Wide Temperature Range – Operating in the range of –40°C to +65°C, adapting to clod weather in the northern regions.
Omnidirectional Antennas with 360° Coverage to Every Corner
- Equipped with 28 dBm omnidirectional antennas with high transmit power
- Extending coverage to every corner within 360° and up to 300 m in radius
- Good signal coverage for STAs around the AP (including the rear side)
- Applicable to outdoor environments where STAs are dispersed
Wi-Fi 6 AX3000
- Achieving a combined data rate of up to 2.976 Gbps
Cloud, Make Your Business Easy
- Remote monitoring
- Remote Wi-Fi management
- Cloud portal authentication
- Wireless intelligent optimization
Software Specifications
| Security | RG-AP680-L |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS) |
| PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication | |
| SMS authentication (used with the RG-WS series wireless access controller) | |
| MAB authentication (used with the RG-WS series wireless access controller) | |
| WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE | |
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| ACL | Dynamic ACL assignment |
| CPP | Supported |
| NFPP | Supported |
| Routing and Switching | RG-AP680-L |
| IP service | Static IPv4 address and DHCP-assigned IPv4 address |
| NAT, FTP ALG, DNS ALG | |
| Multicast | Multicast-to-unicast conversion |
| IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping |
| IPv6 DHCP client | |
| IP routing | IPv4/IPv6 static routing |
| VPN | PPPoE client |
| IPsec VPN |
| Management | RG-AP680-L |
| Network management | Fault inspection and alarm |
| Information statistics and logging | |
| SNMPv1/v2c/v3 | |
| NTP Server and NTP Client | |
| Network management platform | Ruijie Cloud |
| Web-based management (Eweb) | |
| User access management | Console, Telnet, SSH, SNMP and TFTP-based management |
| Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC. |
| When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet. | |
| When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
