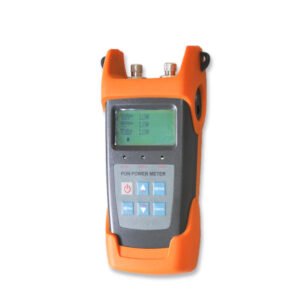

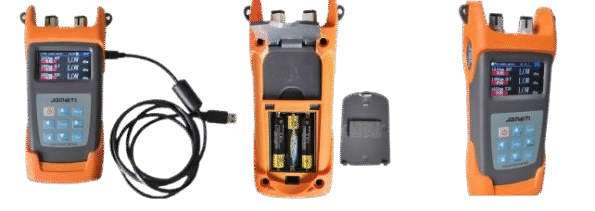

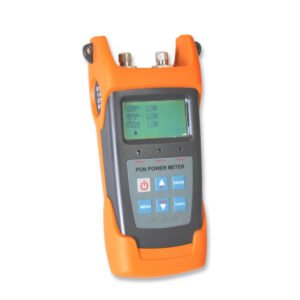

PON Optical Power Meter 1310/1490/1550nm Optimize FTTX Digital Fiber Tester – 3213N
Order Now
Call for Price
PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to
simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool
for the construction and maintenance of the PON projects.
PON OPTICAL POWER METER
* Two port straight-through design
* FC/SC general interface
* Automatic wavelength recognition
* Automatic shutdown function
* HD TFT color LCD
FEATURES
（1） It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
（2） Providing simultaneous measurement for all three wavelengths on the fiber (1490nm 1550nm,1310nm).
（3） Used in Burst mode measurement of 1310nm upstream.
（4） Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
（5） USB communication port enables data transfer to a PC.1000measurement items can be saved in 3213 PON power meter or computer for data review.
（6） With optical power meter modual, include 850、1300、1310、1490、1550、
1625sixs( 3213AP，3213A without 850nm wavelength）；With visual fault locator modual（3213and3213AV）
（7） Optical power meter and VFL with one port.（only 3213A）
（8） Optional Chinese/English display.
（9） Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectivel
（10） 10 minutes Auto-off function can be activated or deactivated
（11） Good key design,high sensitivity, greatly reducing the volume and weight of the tester.
（12） Different models corresponding to different function, according to own use to choose .
PON Optical Power Meter 1310/1490/1550nm Optimize FTTX Digital Fiber Tester – 3213N
PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to
simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool
for the construction and maintenance of the PON projects.
PON OPTICAL POWER METER
* Two port straight-through design
* FC/SC general interface
* Automatic wavelength recognition
* Automatic shutdown function
* HD TFT color LCD
FEATURES
（1） It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
（2） Providing simultaneous measurement for all three wavelengths on the fiber (1490nm 1550nm,1310nm).
（3） Used in Burst mode measurement of 1310nm upstream.
（4） Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
（5） USB communication port enables data transfer to a PC.1000measurement items can be saved in 3213 PON power meter or computer for data review.
（6） With optical power meter modual, include 850、1300、1310、1490、1550、
1625sixs( 3213AP，3213A without 850nm wavelength）；With visual fault locator modual（3213and3213AV）
（7） Optical power meter and VFL with one port.（only 3213A）
（8） Optional Chinese/English display.
（9） Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectivel
（10） 10 minutes Auto-off function can be activated or deactivated
（11） Good key design,high sensitivity, greatly reducing the volume and weight of the tester.
（12） Different models corresponding to different function, according to own use to choose .
An optical power meter (OPM) is a device used to measure the power in an optical signal. The term usually refers to a device for testing average power in fiber optic systems. Other general purpose light power measuring devices are usually called radiometers, photometers, laser power meters (can be photodiode sensors or thermopile laser sensors), light meters or lux meters.
| PRODUCT PARAMETERS | |||||
| Pass Zone(nm) | 1260nm～1360nm | ||||
| MeasurementRange(dBm) | -35dBm～+10dBm | ||||
| Output power(max) | 15dBm | ||||
| Isolation@1490/1550(dB) | >40dB | ||||
| Burst mode measurement error | <±0.5dB | ||||
| 1490 downstream measurement | |||||
| Pass Zone(nm) | 1470nm～1505nm | ||||
| MeasurementRange(dBm) | -35dBm～+10dBm | ||||
| Output power(max) | 15dBm | ||||
| Isolation@1310/1550(dB) | >40dB | ||||
| 1550 downstream measurement | |||||
| Pass Zone(nm) | 1535nm～1570nm | ||||
| MeasurementRange(dBm) | -35dBm～+10dBm | ||||
| Output power(max) | 15dBm | ||||
| Isolation@（1310/1490nm） | >40dB | ||||
| Measurement Accuracy | |||||
| Connatural uncertainty(dB) | ±0.5dB | ||||
| Linearity(dB) | ±0.1dB | ||||
| Passing through insertion Loss(dB) | <1.5dB | ||||
| General Information | |||||
| Detector Type | InGaAs | ||||
| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter | ||||
| Fiber Type | SM 9/125um | ||||
| Measurement Unit | dB/dBm/xW | ||||
| Resolution (dB) | 0.01dB | ||||
| Operation Voltage(V) | DC 3.3V～5.5V | ||||
| Power Supply | 3pc1.5V battery | ||||
| Continuously Operation time (h) | PON：90h | PON：90h | PON：90h | PON：90h | |
| OPM：100h | VFL：50h | OPM：100h | |||
| VFL：50h | |||||
| Operation Temperature(℃) | -10℃～60℃ | ||||
| Storage temperature(℃) | -25℃～70℃ | ||||
| Dimension | 23.5*16*8cm | ||||
| Weight | 0.65kg | ||||
