32 ports NAP BOX 32 ports Fiber Optic Splitter Box Nap box for FTTH Network

FDB0248 Fiber Optic Distribution Box  Nap box

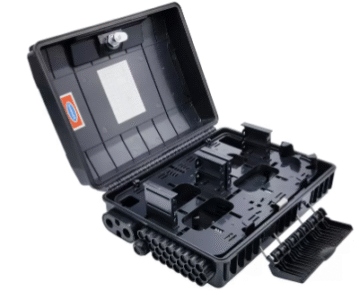

FDB0248 is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

• Total enclosed with key and buckle, square shape, light weight, compact size;
• High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
• Clamp for feeder cable and drop cable, mix Fiber splicing/ fixation/storage/distribution in one;
• Cable, pigtails are running through own path without disturbing each other;
• Distribution panel can be flipped up, 1×16 or 1×32 mini splitter or LGX Splitter module can be optional;
• Max. hold 48 SC adapters or pigtails, bottom with 2pcs 24fiber splice trays for fusion;
• There is cable holders for cable entrance and exit ports on the bottom of the box;
• Fusion plate can be maximum 48cores splicing, large area for routing and storage;
• Feeder cable can be placed by expression port, easy for maintenance and installation;
• Outdoor Wall mount or pole mount, IP65 protection class;
• Laser mark and logo print reserved on the lid

Technical parameters

Detail information:

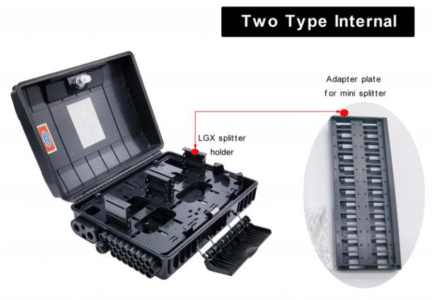

There are two types for optional, can be load with LGX Splitter module, also can be load with adapter for tube mini splitter 1×16 or 1×32
