C-CORP MINI FIG 8 CABLE GYXTBC8Y OUTDOOR FIBER OPTIC CABLE
Cross Section of Cable
Optical Fiber Type and Properties
| ITEM | Unit | Specification | |
| G.652D | |||
| Mode Field Diameter | 1310 nm | µm | 8.7 – 9.5 |
| 1550 nm | µm | 9.8 – 10.8 | |
| Cladding Diameter | µm | 125.0±0.7 | |
| Cladding Non-circularity | % | ≤0.7 | |
| Core/Cladding Concentricity Error | µm | ≤0.6 | |
| Coating Diameter | µm | 235-250 | |
| Coating/Cladding Concentricity Error | µm | ≤12.0 | |
| Cable Cut-Off Wavelength | nm | ≤1260 | |
| Attenuation Coefficient | 1310 nm | dB/km | £0.36 |
| 1550 nm | dB/km | £0.22 | |
| Proof Stress Level | kpsi | ≥100 | |
Dimensions of Cable Constructions

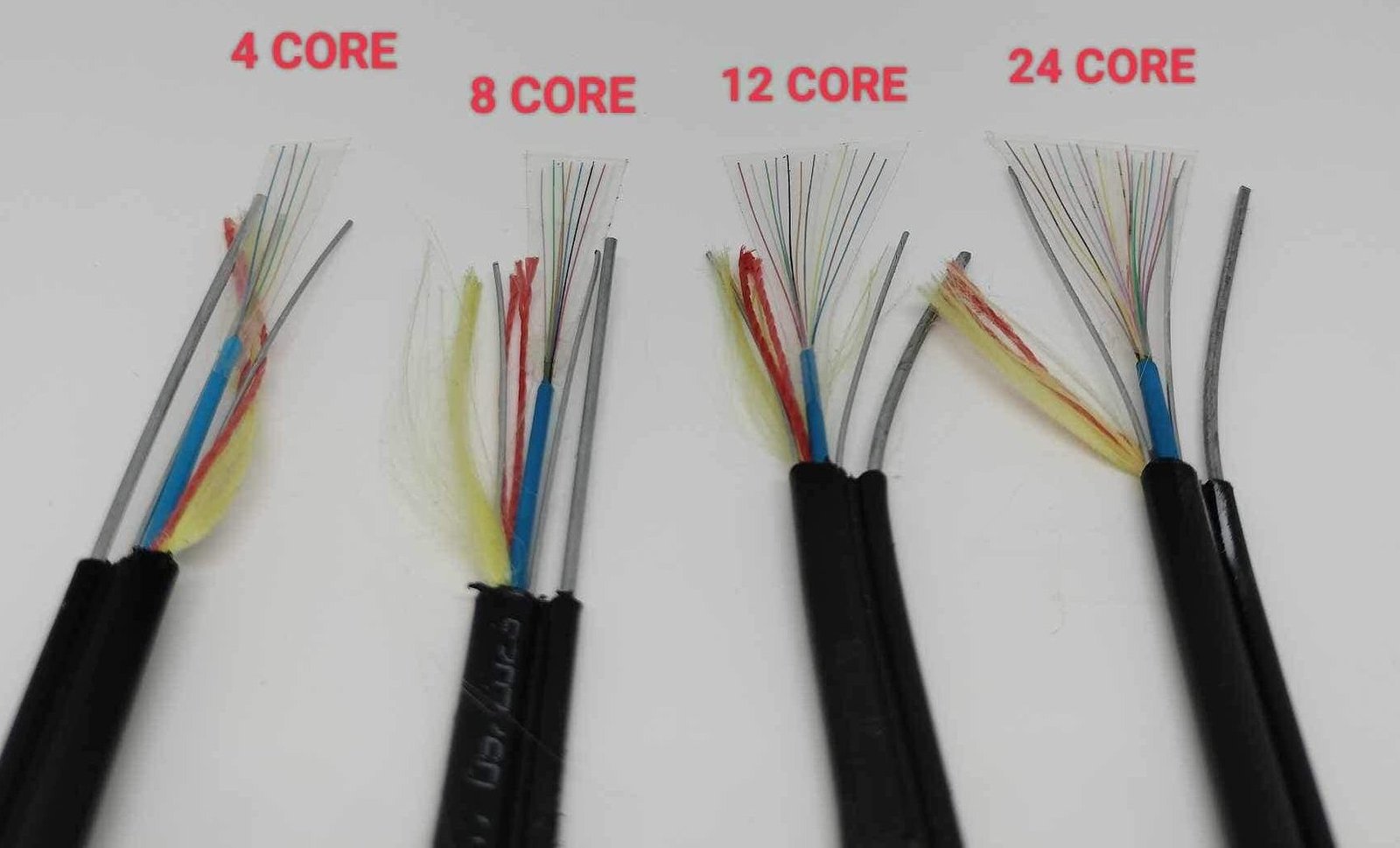

| Fiber Number | 2-24 |
| Structure | Flat figure 8 |
| Fibers Per Tube | 2-24 |
| Number Per Tuberose Tube Diameter (mm) | 1 |
| Loose Tube Diameter (mm) | 2.0-2.6（±0.1） |
| Loose Tube Thickness | 0.35 |
| Central Strength Member | 0.8mm ±0.1 |
| Hanging Wire | 1.6mm ±0.1 |
| Cable Diameter (mm) | 4.0*10.0mm |
Cable Performance
| ITEM | Parameters | |||
| Fiber Material | Silica | |||
| Loose Tube | Material | PBT (Polybutylene terephthalate) | ||
| Color | All color display | |||
| Strength Member | Material | Galvanized Steel Wire | ||
| Outer Jacket | Material | HDPE | ||
| Color | Black | |||
| Min. Bending Radius | Static | 10 times cable diameter | ||
| Dynamic | 20 times cable diameter | |||
| Tensile Performance | Short Term | 2000N | Long Term | 1500N |
| Crush | Short Term | 1200N | Long Term | 800N |
| Torsion | Load: 150N; Number of Cycles: 10; Twist Angle: ± 180° No obvious addition attenuation, no fiber break and no cable damage. | |||
| Impact | Impact energy: 450g × 1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage | |||
Color Arrangement of Fibers is Loose Tube
Environmental Performance
| ITEM | STANDARD | PARAMETERS |
| Operation Temperature | IEC 60794-1-2 F1 | -20℃～+60℃ |
| Water Penetration | IEC 60794-1-2-F5 | Water level: 1m, Sample: 3m, After 24H, No Water Ingress. |
