FDB0248 Fiber Optic Distribution Box Nap box
FDB0248 is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
- Total enclosed with key and buckle, square shape, light weight, compact size;
- High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
- Clamp for feeder cable and drop cable, mix Fiber splicing/ fixation/storage/distribution in one;
- Cable, pigtails are running through own path without disturbing each other;
- Distribution panel can be flipped up, 1×16 or 1×32 mini splitter or LGX Splitter module can be optional;
- Max. hold 48 SC adapters or pigtails, bottom with 2pcs 24fiber splice trays for fusion;
- There is cable holders for cable entrance and exit ports on the bottom of the box;
- Fusion plate can be maximum 48cores splicing, large area for routing and storage;
- Feeder cable can be placed by expression port, easy for maintenance and installation;
- Outdoor Wall mount or pole mount, IP65 protection class;
- Laser mark and logo print reserved on the lid
Technical parameters
| Model | FDB0248-A | FDB0248-B | |
| Dimension (A*B*C) | 355*270*120mm | ||
| Max.Capacity | 48 cores (single fiber) | ||
| Cable ports | Cable entry:1mid span, 1cable gland; Cable exit: 24 round outputs (can do2pcs drop cable holes in rubber) | ||
| Cable diameter | 1mid span(Φ14.5mm), 1cable gland(Φ7-12mm), 24: drop cable 2*3mm or <4.5mm round cable | ||
| Splitter quantity | 4pcs 1:8 or 2pcs 1:16 or 1pcs 1:32 mini splitter | 2PCS 1X16 LGX chassis | |
| Adapter quantity | 48 SC simplex | – | |
| Color | black | ||
| Protection grade | IP65 | ||
Detail information:
There are two types for optional, can be load with LGX Splitter module, also can be load with adapter for tube mini splitter 1×16 or 1×32
Related Products
CCORP Electric Chain Hoist 1t 2t 3t 4t 5t 7t 10tons
Call for Price
CCORP Electric Chain Hoist
A compact, motor-powered lifting device designed to raise and lower heavy loads with precision and ease. Ideal for industrial and commercial use, it features a durable chain, high-efficiency motor, and built-in safety mechanisms for reliable, safe operation.
The primary purpose of an Electric Chain Hoist is to lift, lower, and move heavy loads vertically in a safe, efficient, and controlled manner using electric power. It is widely used in industrial, construction, and commercial settings to reduce manual labor, enhance productivity, and ensure the safe handling of materials and equipment.
Efficient Material Handling: Speeds up lifting operations in warehouses, factories, and assembly lines.
Improved Safety: Minimizes the risk of injury by handling heavy loads mechanically instead of manually.
Precision Lifting: Allows accurate positioning of heavy components during manufacturing or maintenance tasks.
Labor Savings: Reduces the need for multiple workers to lift or move heavy items.
Versatility: Used in a variety of sectors, including automotive, shipping, construction, and logistics.
RG-ES08 Reyee 8-Port Unmanaged Desktop Switch
Call for Price
RG-ES08 Reyee 8-Port Unmanaged Desktop Switch
The perfect combination of quality & cost-effectiveness
RG-ES08 is a desktop switch tailored for small enterprises, small-scale surveillance and SOHO, which meets the network needs of small enterprise customers. The switch features easy configuration and compatibility with a variety of terminals such as network cameras, printers, PCs, etc., to offer fast deployment experience. RG-ES08 model is equipped with eight Gigabit Ethernet Ports and provides 1.1904Mpps packet forwarding rate.
EXFO MAX Series Ethernet Tester
Call for Price
MAX-800 Series – Ethernet and transport testing up to 100G
an easy-to-use, portable test solution designed to meet the most stringent test requirements when installing, activating and troubleshooting Ethernet connections and transport links from 10M to 100G.

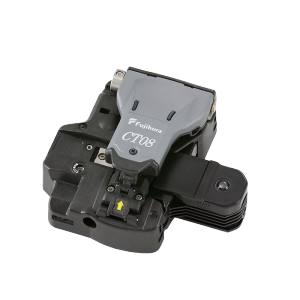

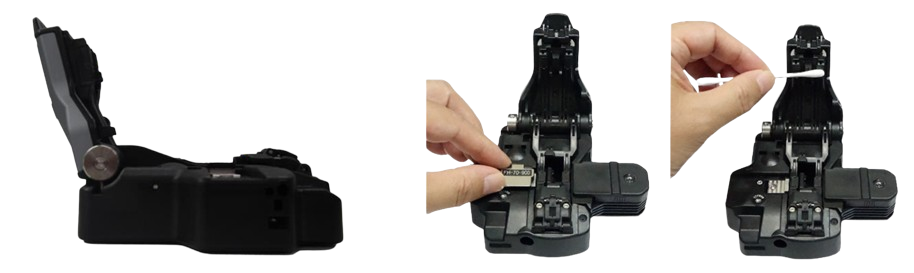

CT08 Optical Fiber Cleaver – High-Precision Tool for Clean, Consistent Fiber Splicing
