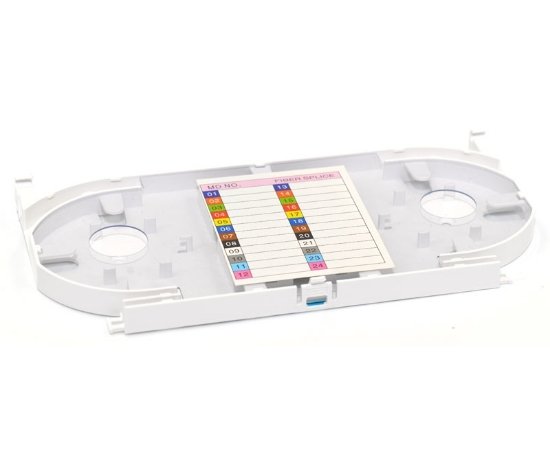

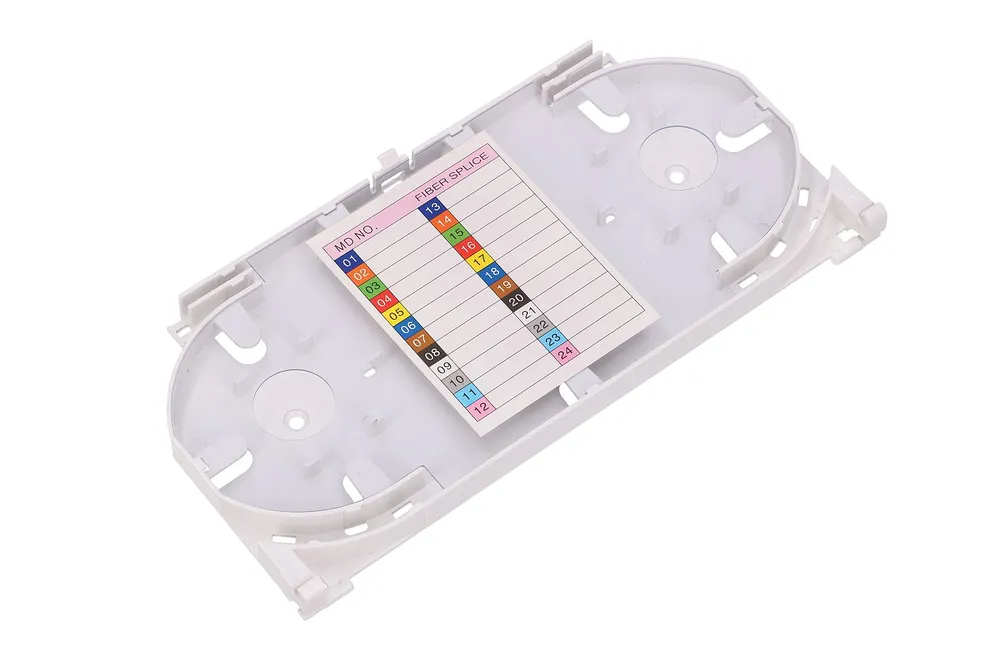

24 CORE FIBER OPTIC SPLICE TRAY

Fiber Optic Splice Tray made by industrial high quality ABS plastic, fiber splice tray is provided to place the fiber splice points and pre –  terminated for fiber connectivity. The splice tray expands fiber splice capabilities as well as provides the splicing location for fiber optic cables. It can be put into the fiber distribution frame, fiber splice closure, optic terminal box,
etc.

Splice trays are necessary for holding and protecting individual fusion splices or mechanical splices.

Splice trays are designed to accommodate various types of splices—fusion and mechanical—each with its own specific installation requirements. For instance, fusion splicing requires precise alignment and heating of the fibers, while mechanical splicing utilizes a gel-filled tube to align the fibers. Both methods ensure minimal signal loss, making the choice of a splice tray even more crucial to system performance.

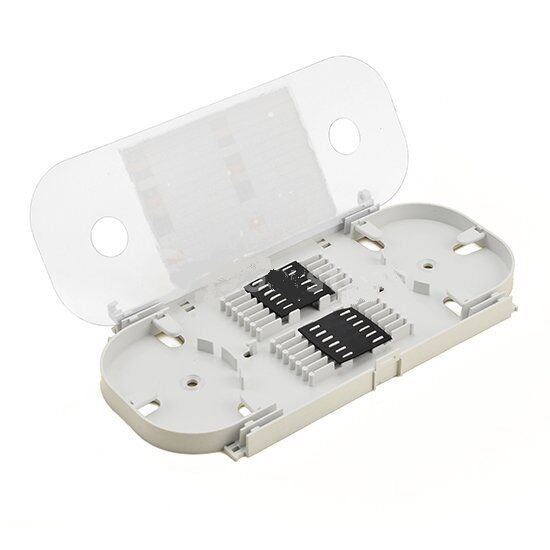

• This book type splice tray is widely used in fiber enclosure in both rack mount or wall mount.

Additionally, the book-style design of these splice trays is particularly beneficial in confined spaces, allowing for efficient use of available room in a fiber enclosure. By ensuring that splices are securely housed and protected, users can avoid costly downtime and maintain high service quality for end customers.

• One Splice tray accommodates maximum 24 splicing.

Each tray can accommodate up to 24 splices, which is ideal for most standard installations. In larger applications, multiple trays can be stacked to maximize capacity while maintaining accessibility and organization. This modular approach is advantageous for future expansions or upgrades.

• Its expandability allows more than one splice tray to be stacked up by the pins to form a splice tray column with the exact capacity needed.

The expandability feature allows installers to customize the configuration based on current and anticipated needs. For example, in a growing network, technicians might start with 24 splices but anticipate future demands that require additional capacity. The ability to stack trays vertically not only conserves space but also simplifies maintenance and access.

Benefits of Using Fiber Optic Splice Trays:

• Management and storage pigtail

• Fiber optic fusion protection

• Use for single-mode or multimode fiber

• Durable injection-molded plastic trays and covers

• Center holes for mounting of the tray

• 124-fiber splice tray installable in Wall Mount enclosures & splice closures

• Several capacity: 12, 24, 36, 48, 72, 96, splices.

• Several adapters can be installed: FC, SC, ST, duplex LC
