Please Call for price

CRS310-8G+2S+IN MIKROTIK

Order Now

Call for Price

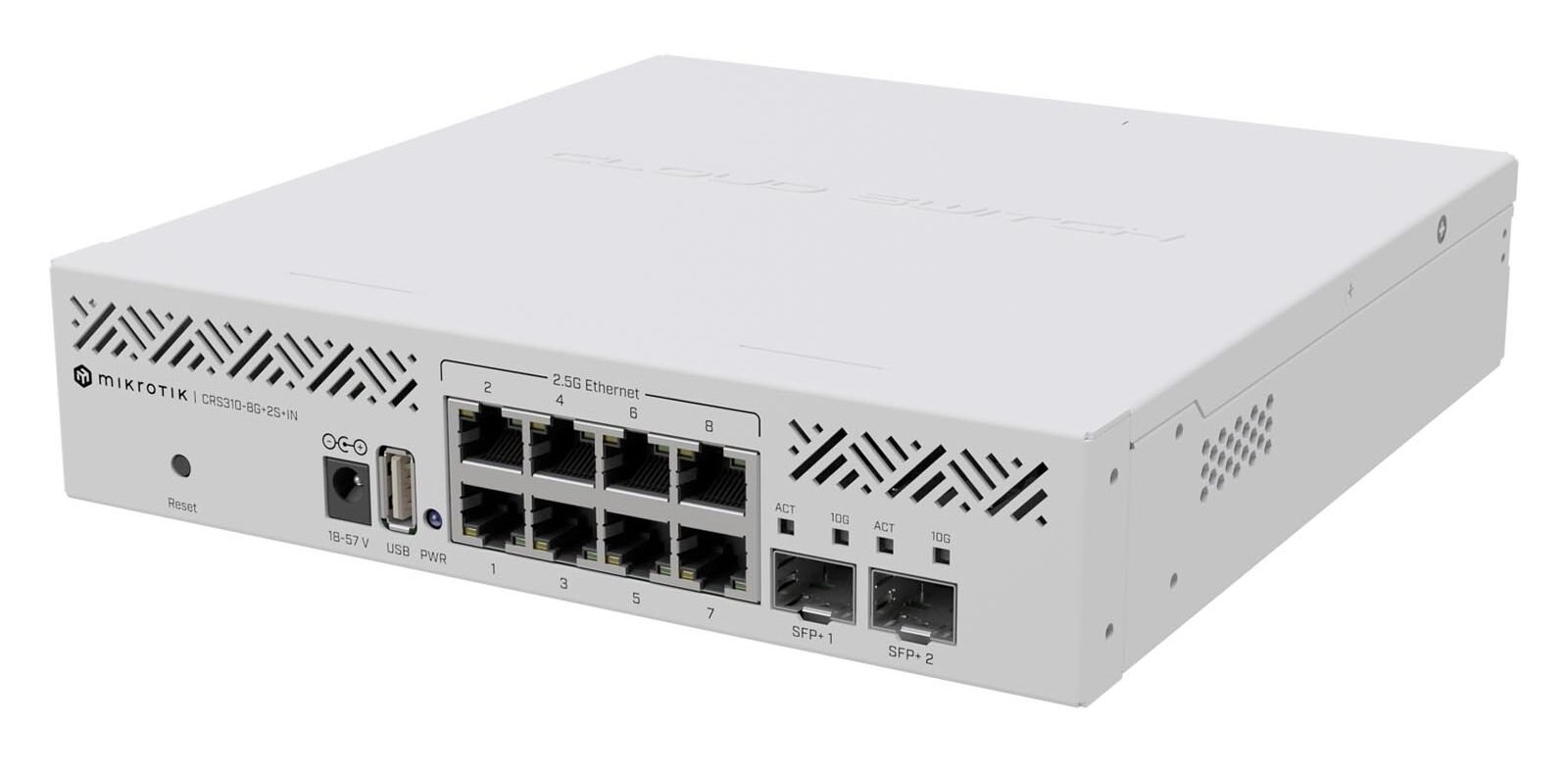

CRS310-8G+2S+IN MIKROTIK

Take advantage of the blazing fast 2.5/10 Gigabit combo and upgrade your workspace! This switch can utilize the full potential of RouterOS v7: run VLANs, Jumbo frames, link aggregation, ACL rules, and so much more.

CRS310-8G+2S+IN MIKROTIK

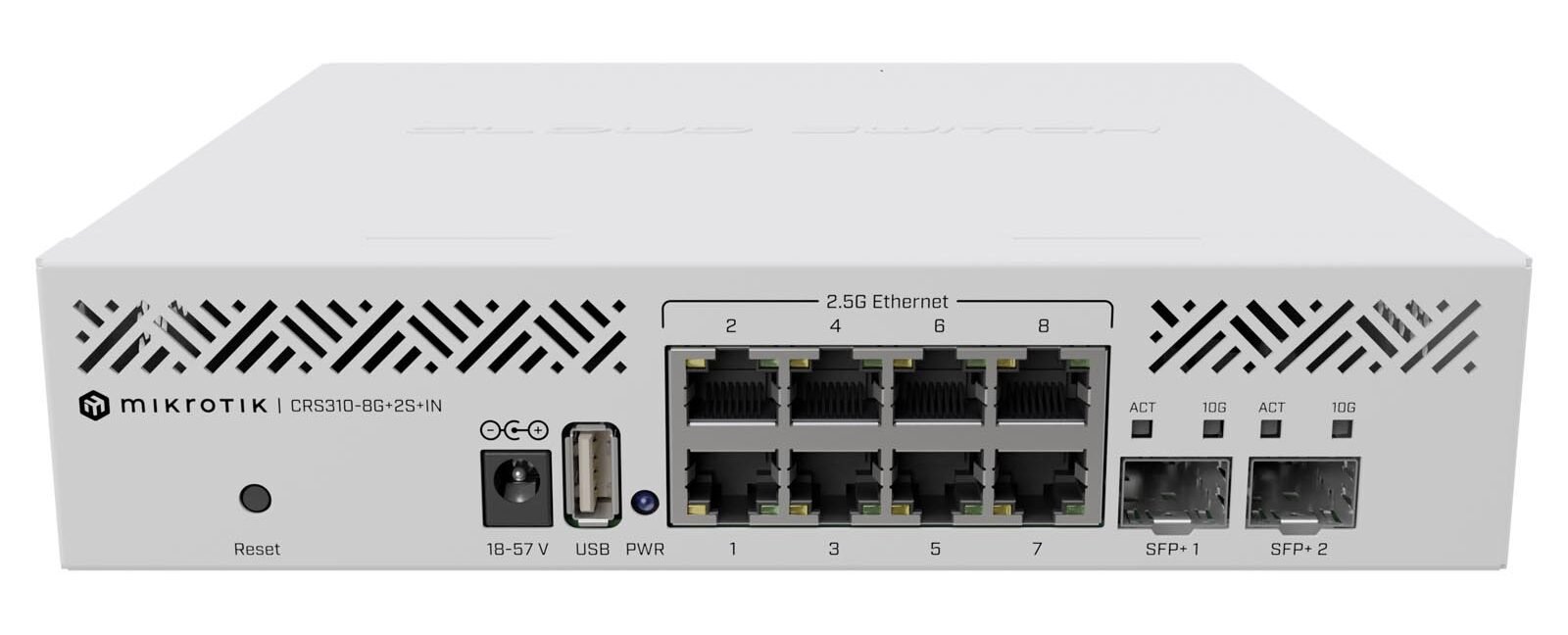

The world of networking is on the move. Even small offices are shifting from Gigabit connections to the lightning-fast realm of 2.5 Gigabit connectivity. With CRS310-8G+2S+IN Mikrotik, we aim to give you the tools to outpace your competition with a strong combination of eight 2.5 Gigabit Ethernet ports and two 10 Gigabit SFP+ ports in a compact, powerful package! Furthermore, these SFP+ cages support multiple data rates: 1G, 2.5G, and 10G. So you can use this switch as a 10x 2.5G switch, if needed. Classic MikroTik flexibility!

The amazing Marvell 98DX226S switch-chip and integrated dual-core ARM CPU can handle the full potential of RouterOS v7. Run VLANs, Jumbo frames, link aggregation, ACL rules, and so much more! You can even do some hardware offloaded Layer-3 routing.

There are multiple mounting options. You can easily install the CRS310-8G+2S+IN in a standard 19” rack using the provided rackmount ears. Another option is to get the RMK-2/10 accessory set, which allows you to mount two CRS310 units within the same 1U 19” rack space or mount it in a 10” rack. The choice is yours!

CRS310-8G+2S+IN MIKROTIK

Specifications
Details
Product code	CRS328-24P-4S+RM
Architecture	ARM 32bit
CPU	98DX3236
CPU core count	1
CPU nominal frequency	800 MHz
Switch chip model	98DX3236
Dimensions	443 x 300 x 44 mm
RouterOS license	5
Operating System	RouterOS / SwitchOS
Size of RAM	512 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-20°C to 60°C

Powering
Details
Number of AC inputs	1
AC input range	100-240
Number of PSU slots	2
Max power consumption	494 W
Max power consumption without attachments	44 W
Cooling type	2 fans
PoE-out
Details
PoE-out ports	Ether1-Ether24
PoE out	802.3af/at
Max out per port output (input 18-30 V)	1000 mA
Max out per port output (input 30-57 V)	450 mA
Max total out (A)	20 A
Ethernet
Details
10/100/1000 Ethernet ports	24
Fiber
Details
SFP+ ports	4
Peripherals
Details
Serial console port	RJ45
Other
Details
CPU temperature monitor	Yes
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes
Certification & Approvals
Details
Certification	CE, EAC, ROHS
IP	IP00
