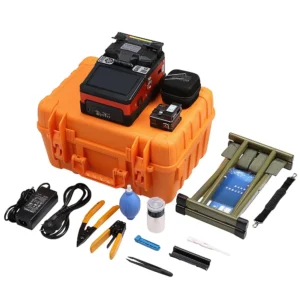

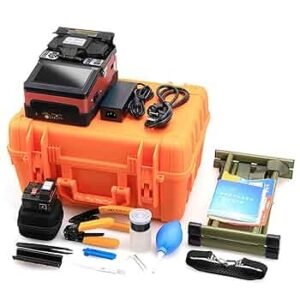

High-precision Comptyco A-81s Automatic Splicing machine optical fiber fusion splicer
Order Now
High-precision Comptyco A-81s Automatic Splicing machine optical fiber fusion splicer
... people are viewing this right now
Compare
High-precision Comptyco A-81s Automatic Splicing machine optical fiber fusion splicer
Optical Fiber Fusion Splicer
The high-precision A-81s fusion splicer uses advanced image processing and precision positioning to complete fiber splicing in just 9 seconds. Lightweight and easy to operate, it’s ideal for telecom, power, military, and research applications involving various optical fiber types.
item | value |
Model Number | A-81s |
Appicable Fibers | SM(G.652&G.657), MM(G.651), DS(G.653), NZDS((G.655) and self-defined types optical fibers |
Splicing loss | 0.02dB (SM). 0. 01dB (MM) 0. 04dB (DS/NZDS) |
Return loss | Over60dB |
Typical splicing duration | 9 seconds |
Typical heating duration | 26 seconds (configurable heating time and adjustable duration heating temperature) |
Optical fiber alignment | Precise alignment, fiber core alignment, cladding alignment |
Optical fiber diameter | Cladding diameter 80~ 150μm, coating layer diameter 100~ 1000μm |
Cutting length | Coating layer below 250μm: 8~16mm ; coating layer 250~ 1000μm: 16mm |
Tension test | Standard 2N (optional) |
Optical fiber clamp | Multi-function clamp for bare fiber, tail fiber, jumpers, leather line; changing clamp applicable for Sc and other connectors for a variety of FTTx optical fiber and cable. |
Amplification factor | 300 times (X axis or Y axis) |
Warranty Time | 3 years |
Heat shrink bush | 60mm. 40mm and a series of miniature bush |
Weight | 1434G(excl. battery), 1906G(incl. battery) |
Display | 5.0 inches TFT color LCD display; Reversible convenient for bi-directional operation |
External interface | USB interface, convenient for data download and software upgrade |
Splicing mode | 17 groups of operation modes |
Heating mode | 9 groups of operation modes |
Splicing loss storage | 5000 latest splicing results are stored in the built-in storage. |
Built-in battery | Supports continuous splicing and heating for not less than 200 times |
Power supply | The built-in lthium battery 11.8V supplies the power, charging time≤3.5h; External adapter, input AC100-240V 50/60HZ, output DC13.5V/4.81A |
Power saving | 15% of the power of the lithium battery can be saved savingl in a typical environment. |
Working environment | Temperature: -10~+50c, Humidity : <95%RH (no condensation) Working altitude: 0~5000m, Max.wind speed: 15m/s |
Outer dimension | 205mm (long) x 140mm (wide) x 123mm (high) |
Lighting | Convenient for optical fiber installation in the evening |
