Cable specification
1.（Optical fiber cable type）:GCYFY-144B

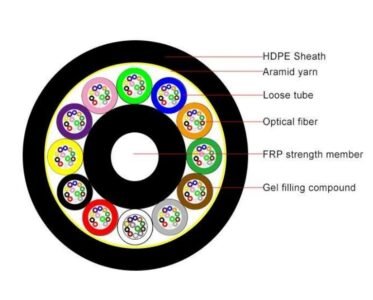

2.（Cross section of cable）:
| 3. (Optical fiber type and properties） | |||
| Item | Specification | ||
| Unit | G.652D | ||
| Mode field diameter | 1310nm | µm | 8.7-9.5 |
| 1550nm | µm | 9.8-10.8 | |
| Cladding diameter | µm | 125.0±0.7 | |
| Cladding non-circularity | % | ≤0.7 | |
| Core/cladding concentricity error | µm | ≤0.6 | |
| Coating diameter | µm | 235-250 | |
| Coating/cladding concentricity error | µm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| Attenuation coefficient | 1310nm | dB/km | 0.36 |
| 1550nm | dB/km | 0.22 | |
| Proof stress level | kpsi | ≥100 | |
| 4. (Dimensions of cable constructions) | |
| Core | 144 |
| Structure | 1+12 |
| Fibers per tube | 12 |
| Number of loose tube (pcs) | 12 |
| Loose tube diameter (mm) | 1.2±0.1 |
| Loose tube thickness | 0.2 |
| Central strength member | 2.0mm ±0.1 (FRP) |
| Thickness of outer jacket (mm) | 0.8 |
| Cable diameter (mm) | 8.6 (±0.2) |
| 5. (Cable performance) | ||||
| (Item) | (Parameters) | |||
| Fiber Material | Silica | |||
| Loose Tube | Material | PBT (polybutylece terephthalate) | ||
| Color | All color display | |||
| Strength | Material | FRP | ||
| Outer jacket | Material | HDPE | ||
| Color | Black | |||
| Min. bending radius | Static | 10 10 times cable diameter | ||
| Dynamic | 20 20 times cable diameter | |||
| Tensile performace | Short term | 1.5G | long-term | 0.5G |
| Crush | Short term | 450N | long-term | 150N |
| Torsion | 150N; 10 ; ±180º | |||
| Load: 150N; number of cycles:10; twist angle:± 180° No obvious | ||||
| addition attenuation, no fiber break and no cable damage. | ||||
| Impact | Impact energy： 450g× 1m；Impact cylinder radius： 12.5mm；Number of impacts：5 No obvious attachment of optical fiber | |||
| With attenuation, the sheath has no visible cracks. | ||||
| Impact energy ： 450g × 1m; radius of hammer head:12.5mm; | ||||
| number of impact: 5 No obvious addition attenuation, no fiber | ||||
| 6. (Colour Arrangement of Fibers is Loose Tube) |
| 7. (Environmental performance) | ||
| (Item) | (Standard) | (Parameters) |
| Operation temperature | IEC 60794-1-2 F1 | -20℃～+60℃ |
| Water penetration | IEC 60794-1-2-F5 | 1m 3m，24 |
| Water level： 1m ,sample： 3m, | ||
| After 24h， no water ingress. | ||
