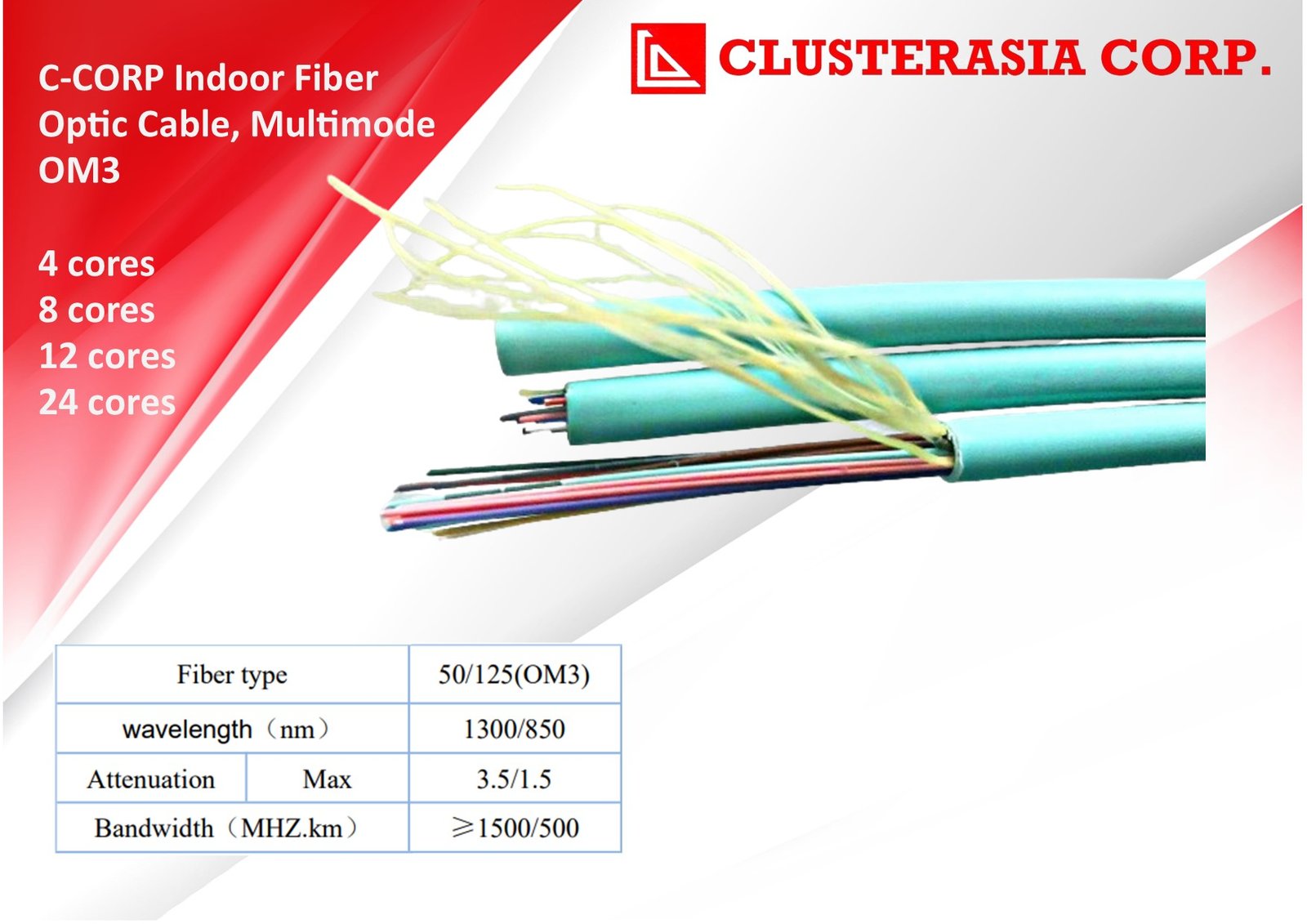

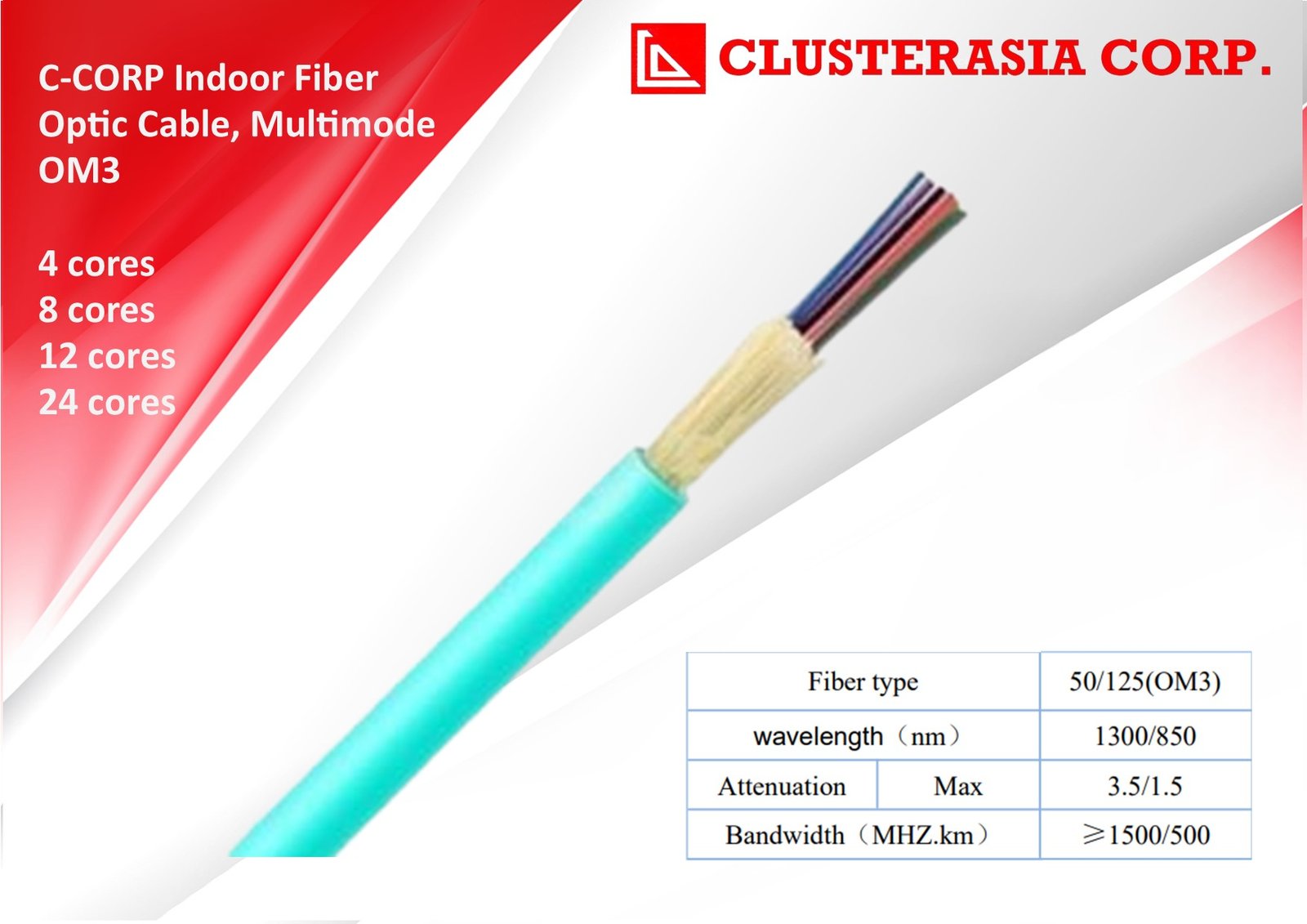

C-CORP GJFJV 4-24F INDOOR OM3 MULTIMODE FIBER OPTIC CABLE

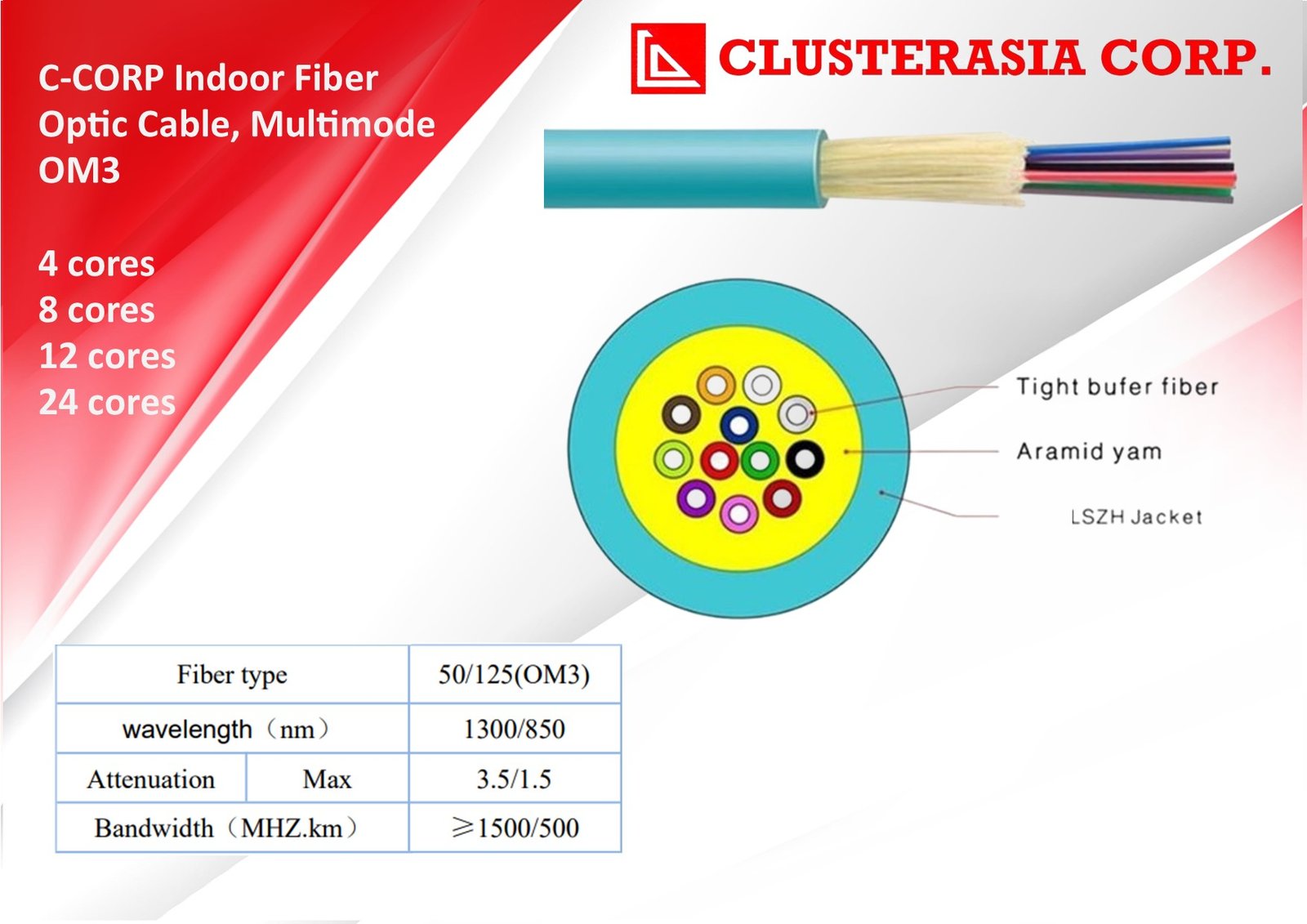

Cable Dimensions and Constructions
| Tight Buffered Fiber Count | 4 | 8 | 12 | 24 |
| Tight Buffered Fiber Material | LSZH | |||
| Tight Buffered Fiber Color | Blue, Orange, Green, Brown | Blue, Orange, Green, Brown, Grey, White, Red, Black | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua, Color Ring (Blue-Aqua) |
| Tight Buffered Fiber Diameter (mm) | 0.9±0.05 | |||
| Strength Member | polyester yarn 1000D×6 | polyester yarn 1000D×8 | polyester yarn 1000D×8 | polyester yarn 1000D×8 |
| Outer Sheath Color | Yellow, Orange, Aqua, Violet (or other) | |||
| Outer Sheath Diameter (mm) | 4.8±0.2 | 5.6±0.2 | 6.2±0.2 | 8.2±0.2 |
| Outer Sheath Material | LSZH | |||
| Long Time Crush（N/100mm） | 300 | |||
| Short Term Crush（N/100mm） | 1000 | |||
| Bending Radius Dynamic / Static (mm) | 20D/10D | |||
| Weight（Kg/Km） | 18 | 26 | 34 | 52 |
Optical Properties
| Fiber type | SM | 62.5/125(OM1) | 50/125(OM2) | 50/125(OM3) | 50/125(OM4) | |
| wavelength（nm） | 1310/1550 | 1300/850 | 1300/850 | 1300/850 | 1300/850 | |
| Attenuation | Max | 0.4/0.3 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 |
| Bandwidth（MHZ.km） | — | ≥200/500 | ≥500/500 | ≥1500/500 | ≥3500/500 | |
