Cassette Fiber Optic PLC Splitters 1X2, 1X4, 1X8, 1X16
Order Now
Cassette Fiber Optic PLC Splitters 1-2 1-4 1-8 and 1-16 Insertion – High Performance
- Loss is not sensitive to the wavelength of light to meet the transmission requirements of different wavelengths
- Evenly distributed, the signal can be evenly distributed to each customer
- Compact structure, it can be directly installed in various existing exchange boxes need not leaving a large installation space.
- Function introduction: Like the coaxial cable transmission system, the optical network system also needs to couple, branch and distribute the optical signals, which can be realized by the optical splitter.
- Applications: Network cabling, cable TV networks, fiber-optic LANs, fiber-optic communication systems, fiber-optic CATV, fiber-optic switching boxes.
... people are viewing this right now
Compare

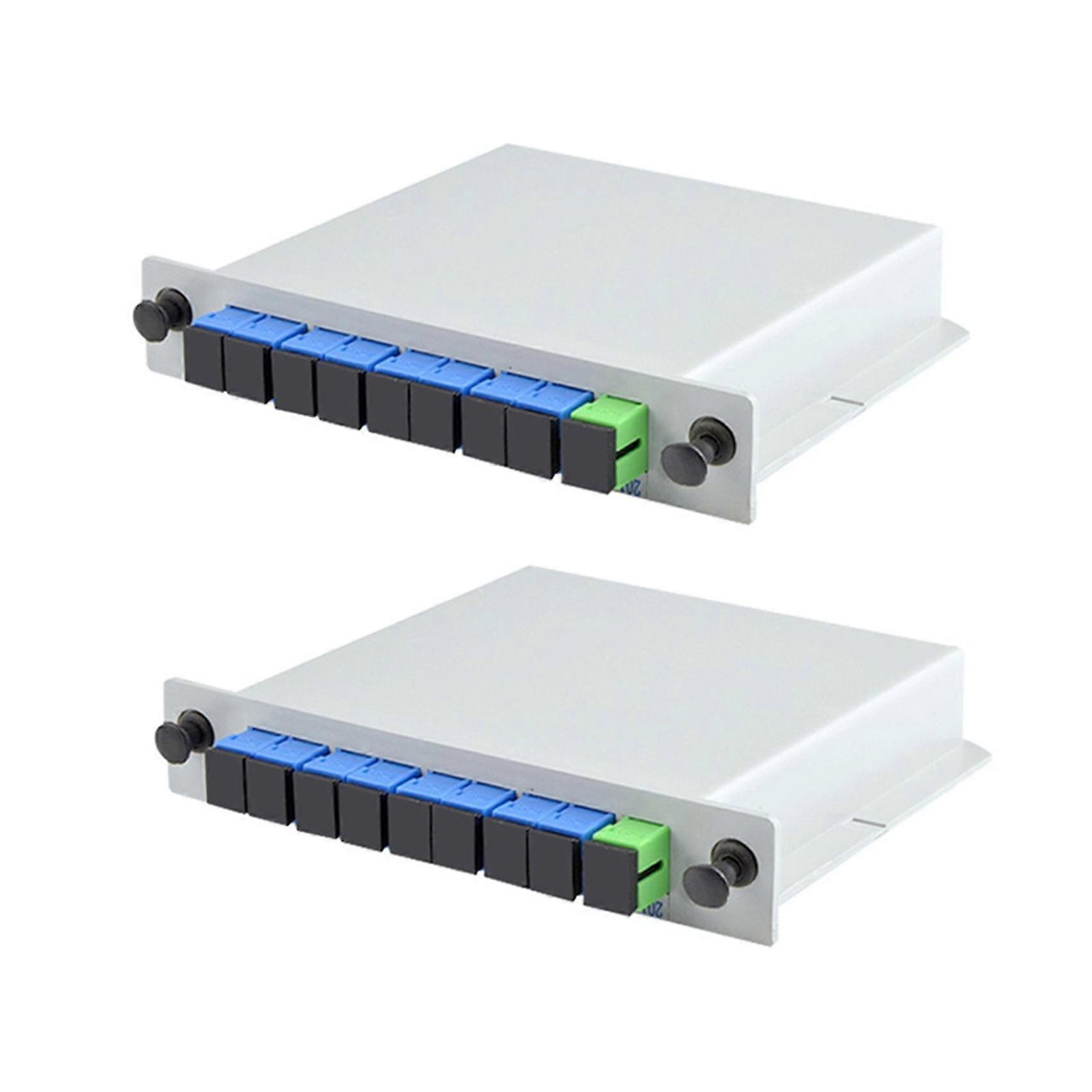

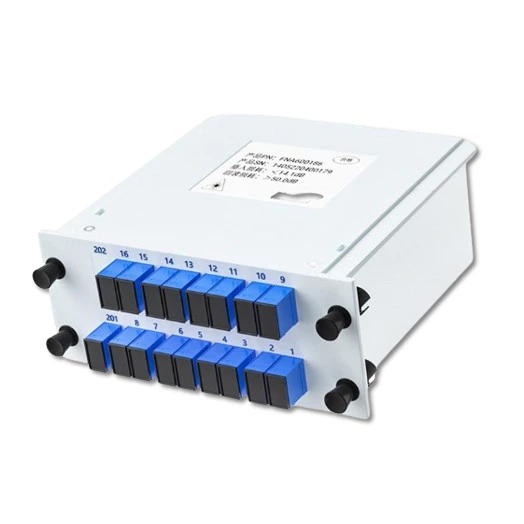

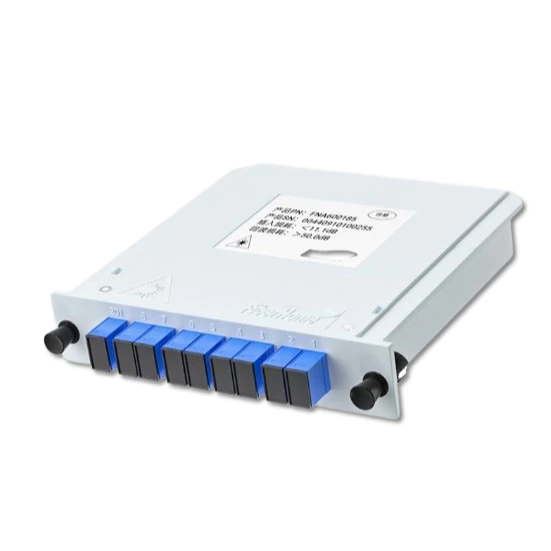

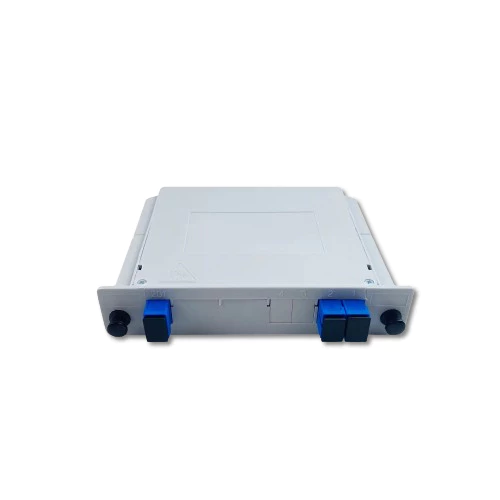

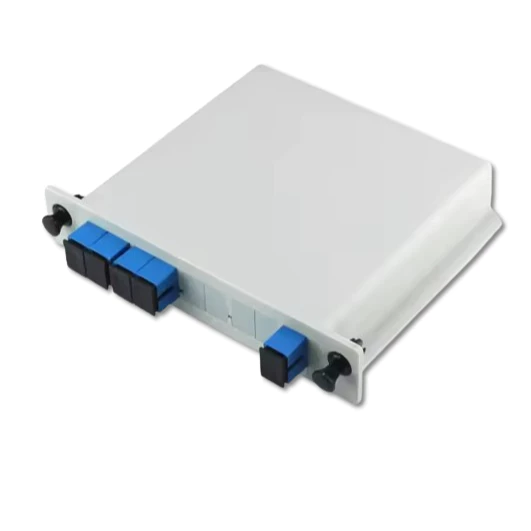

Cassette Fiber Optic PLC Splitters
1X2, 1X4, 1X8, 1X16
Cassette Type Fiber Optic PLC Splitters are mainly used in CATV data network, optical communication system fiber test equipment, fiber to the home (FTTH)
Loss is not sensitive to the wavelength of light to meet the transmission requirements of different wavelengths
Evenly distributed, the signal can be evenly distributed to each customer
Compact structure, it can be directly installed in various existing exchange boxes need not leaving a large installation space.
Function introduction: Like the coaxial cable transmission system, the optical network system also needs to couple, branch and distribute the optical signals, which can be realized by the optical splitter.
Applications: Network cabling, cable TV networks, fiber-optic LANs, fiber-optic communication systems, fiber-optic CATV, fiber-optic switching boxes.
PLC Splitter is based on planar Light wave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN .PLC Splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. SUNET’s PLC Splitter offers superior optical performance, high stability and high reliability,meet various application requirements in different environments.
Feature
1.Low Insertion Loss
2.Low Polarization Dependent Loss
3.Wide Operation Wavelength
4.Wide Operation Temperature
5.High Stability and Reliability
Application
1.Access Network
2.Telecom/CATV
3.Active device termination
4.Local Area Networks (LANS)
5.Metro
6.Test equipment
7.Data processing network
8.Wide Area Networks (WANS)
9.FTTX
| Parameter | Specification | ||||||||
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
| Type | 1×4 | 1×8 | 1×16 | 2×4 | 2×8 | 2×16 | 1×32 | 2×32 | 1×64 |
| Insertion Loss (dB) Max. * | <7.3 | <10.5 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 |
| Uniformity (dB) Max.* | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
| PDL(dB)Max.* | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 |
| Directivity (dB) | ≥55 | ||||||||
| Return Loss (dB) | UPC ≥55 APC ≥60 | ||||||||
| Operating Temperature (°C) | -5~ +75 | ||||||||
| Storage Temperature (°C) | -40 ~ +85 | ||||||||
| Fiber length | 1m or custom length | ||||||||
| Fiber Type | Corning SMF-28e fiber | ||||||||
| Connector Type | Custom specified | ||||||||
| Power Handling (mW) | 300 | ||||||||
