AC1200 WiFi ONT 2GE+WiFi5 ONU V2802DAC VSOL ONU
V2802DAC
1*XPON+2GE+WiFi5 ONT
Weight: 310g
Introduction:
V2802DAC (2GE+WiFi5 XPON ONT) is designed to meet the FTTH requirements of fixed network operators. The ONT is basedonahigh-performance chipset (Realtek) technology solution, supporting IEEE802.11b/g/n/ac WIFI technology and other Layer 2/Layer 3functions.TheONT supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the VSOL OLT.
The ONU has high reliability and is easy to manage and maintain. It has QoS guarantees for different services. It complies withtheChinaTelecom CTC2.1/3.0 and international technical standards such as IEEE802.3ah, ITU-T G.984, etc.

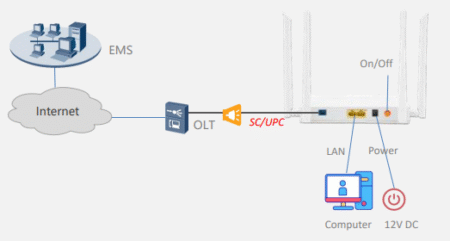

Application Chart:
| ○ Hardware Parameter | |
| Dimension | 178mm×120mm×30mm(L×W×H) |
| Net weight | 0.31Kg |
| Operating condition | Operating temp: -10 ~ +55°C |
| Operating humidity: 5 ~ 95% (non-condensed) | |
| Storing condition | Storing temp: -40 ~ +70°C |
| Storing humidity: 5 ~ 95% (non-condensed) | |
| Power adapter | DC 12V,1.0A, external AC-DC |
| power adaptor | |
| Power supply | ≤12W |
| Interface | 2GE+WiFi5 |
| Indicators | PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G |
| ○ Interface parameter | |
| PON interface | 1XPON port(EPON PX20+ and GPON Class B+) |
| SC single mode, SC/UPC connector | |
| TX optical power: 0～+4dBm | |
| RX sensitivity: -27dBm | |
| Overload optical power: -3dBm(EPON) or -8dBm (GPON) | |
| Transmission distance: 20KM | |
| Wavelength: TX 1310nm, RX1490nm | |
| User interface | 2×GE, Auto-negotiation,RJ45 ports |
| WLAN interface | Compliant with IEEE802.11b/g/n/ac |
| 2.4GHz Operating frequency: 2.4000-2.4835GHz | |
| 5.0GHz Operating frequency: 5.150-5.825GHz | |
| Support MIMO, rate up to 1.167Gbps | |
| WiFi: 2.4GHz( 2T2R ), 5.8GHz( 2T2R ), 5dBi antenna, support: multiple SSID | |
| TX power: 11n–22dBm/11ac–24dBm | |
| ○ Function Data | |
| Management | OAM/OMCI, Telnet, WEB, TR069 |
| Support full management of ONT functions by VSOL OLT | |
| Internet connection | Support Bridge, Route and Bridge/Route mixed mode |
| Multicast | Support IGMP v1/v2/v3 |
| Support IGMP Proxy and MLD Proxy | |
| Support IGMP Snooping and MLD Snooping | |
| VLAN | Support VLAN tag mode |
| Support VLAN trunk mode | |
| Support VLAN translation | |
| Data Service Functions | Full speed non-blocking switching |
| 2K MAC address table | |
| 8 full range VLAN ID | |
| Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc | |
| Support auto polarity detection of Ethernet ports (AUTO MDIX) | |
| Integrated IEEE802.1p QoS with four level priority queues | |
| Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy | |
| Wireless | Support Wireless AP mode |
| Support 802.11 b/g/n/ac | |
| Support Multiple SSID | |
| Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) | |
| Modulation type: DSSS, CCK and OFDM | |
| Encoding scheme: BPSK, QPSK, 16QAM and 64QAM, 256QAM | |
| Support EasyMesh protocol | |
| QoS | Support 4 queues |
| Support SP and WRR | |
| Support 802.1P and DSCP | |
| L3 | Support IPv4, IPv6 and IPv4/IPv6 dual stack |
| Support DHCP/PPPOE/Static | |
| Support Static route | |
| Support DHCP Server | |
| Support NAT/DMZ/DDNS | |
| Support Virtual Server | |
| Security | Support Firewall |
| Support Mac filter Based on MAC or URL | |
| Support ACL | |
