96 CORES ADSS FIBER CABLE 100M SPAN All DIELECTRIC SELF-SUPPORTING AERIAL CABLE
Introduction of Fiber Optical Cable
ADSS cable possesses high tensile strength and flexibility in compact cable sizes. At the same time, it provides excellent optical transmission and physical performance.
Cable Cross-Section
96 CORES ADSS FIBER CABLE
| Category | TU T-G652D | Specifications |
| Description | After cabling | |
| Optical Specifications | Attenuation @1310 nm (No-wired/ Wired) | ≤0.35 dB/km |
| Attenuation @1383 nm (No-wired/ Wired) | ≤0.35 dB/km | |
| Attenuation @1550 nm (No-wired/ Wired) | ≤0.21 dB/km | |
| Attenuation @1625nm | ≤0.23 dB/km | |
| Attenuation @1285-1625nm | ≤0.40 dB/km | |
| Zero Dispersion Wavelength | 1300~1324 nm | |
| Zero Dispersion Slope | ≤ 0.092 ps/nm2∙km | |
| PMD Link value of fiber individual | ≤0.18 ps/√km | |
| PMDq (Q=0.01% N=20) | ≤0.08 ps/√km | |
| Cable Cutoff Wavelength (λcc) 1100 1320 nm | ≤1260 nm | |
| Dispersion coefficient at 1285-1330 nm | ≤3.5 ps/nm.km | |
| Dispersion coefficient at 1550 nm | ≤18.0 ps/nm.km | |
| Dispersion coefficient at 1625 nm | ≤22.0 ps/nm.km | |
| Macro bending Loss (100 turns; Ф50 mm) @1550 nm (100 turns; Ф50 mm) @1625 nm | ≤ 0.05dB | |
| ≤ 0.10dB | ||
| Dimensional Specifications | Mode Field Diameter @ 1310nm | 9.2±0.4μm |
| Mode Field Diameter @ 1550nm | 10.4±0.5μm | |
| Cladding Diameter | 125±1.0μm | |
| Core/Clad Concentricity Error | ≤0.6μm | |
| Coating/Cladding Concentricity Error | ≤12μm | |
| Cladding Non-circularity | ≤10% | |
| Coating Diameter (Colored) | 250±15μm | |
| Proof Stress | ≥0.69Gpa | |
| Min. Bending Radius | tatic:10 x cable diameter | |
| Dynamic: 20 x cable diameter | ||
| Mechanical Specifications | Temperature Range | Operation: -40℃~+80℃ Installation: 10℃~+60℃ Storage/ transportation: -40℃~ +80℃ |
Packing and Marking

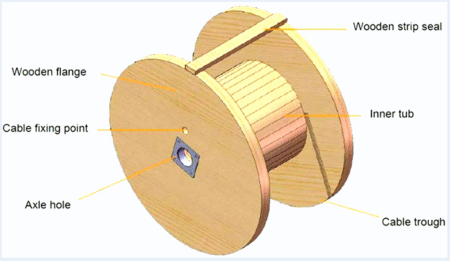

• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 4,000m ± 2%; as required
• Drum Marking (can according to the requirement in the technical specification)
• Customized name: (according to customer’s requirements, we can do OEM)
• Manufacturing year and month Roll—direction arrow;
• Drum length; Gross/net weight.
