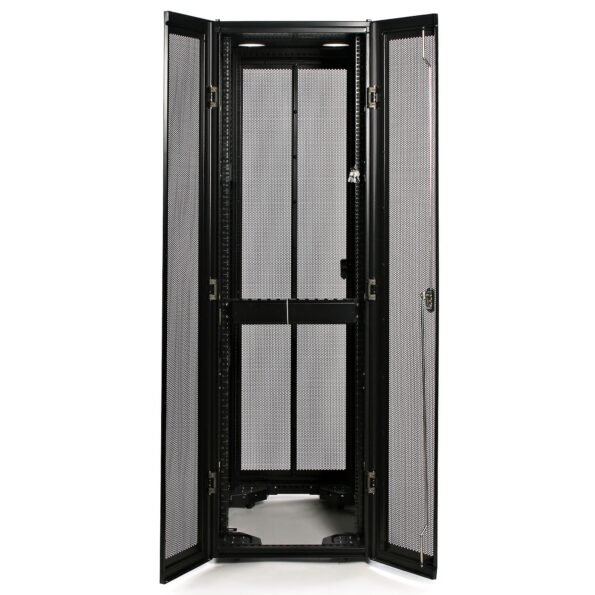

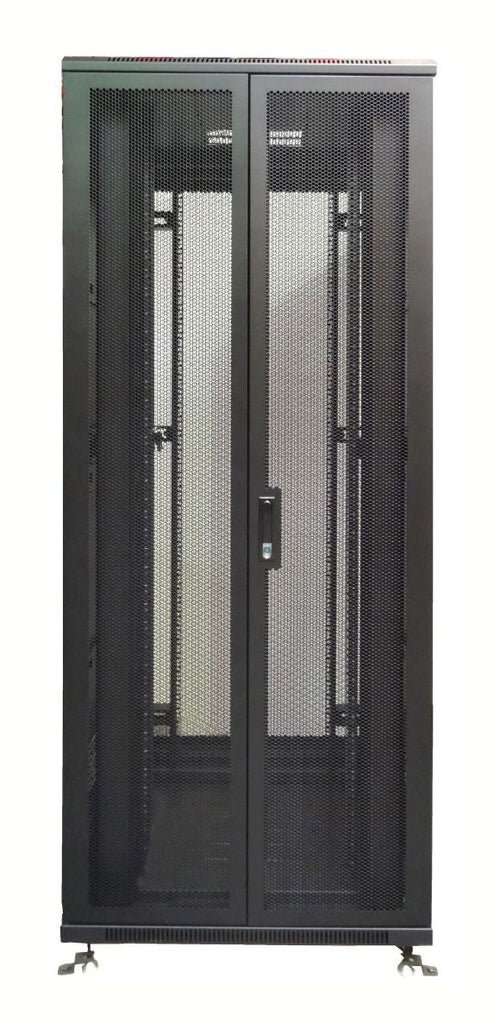

42U SERVER CABINET WITH FRONT MESH DOOR

CC-42UB800 42U SERVER CABINET WITH FRONT MESH DOOR
SIZE: WIDTH 800mm * DEPTH 1000mm * HEIGHT 2000mm 6feet with 3 free shelf, 4unit fan 120mm, 1pc PDU 6gang and 2pcs vertical cable management 42U

CC-42U800B 42U SERVER CABINET WITH FRONT MESH DOOR
SIZE: WIDTH 800mm * DEPTH 1200mm * HEIGHT 2000mm 6feet with 3 free shelf, 4unit fan 120mm, 1pc PDU 6gang and 2pcs vertical cable management 42U

Product Description
• Side doors mounted on latches with a lock assembly option
• A rack rail indicating the amount of units (U)
• Adjustable feet and transport wheels of high durability
• Two cable ducts – ceiling and floor
• A frame with a load capacity of 800kg
• Cold-rolled steel
• Frame thickness: 1.2 mm
• Mounting rail thickness: 2.0 mm
• Side panel thickness: 1.2 mm
• Protection class IP20
• Surface finish: degreasing, etching, phosphating, powder coating
• Protection against rust, oxidation, scratches, corrosion
• Front door – glass
• Full steel back doors
• Available in black RAL9004
• Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/
T3047.2-92 standards
• Compatible with metric ETSI and 19-inch international standards.

Design Features
• Modular design with welded frames
• Light weighted with solid structure and flexible configuration
• Flexible cabinets baying
• Available to switch front and rear doors which can open over 130°
• A wide range of accessories available

Material
Frames: 1.5mm cold rolled steel.
Mounting rails: 2.0mm cold rolled steel
Side panels: 1.2mm cold rolled steel.
Front door: 1.5mm cold rolled steel.
Top panels: 1.2mm cold rolled steel.
