16 Ports 100Mbps PoE Network Switch with Gigabit Uplink and SFP Port POE1621HR-2
Order Now
Call for Price

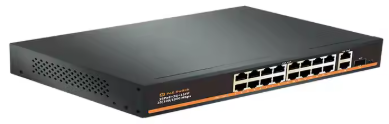

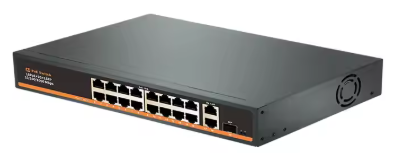

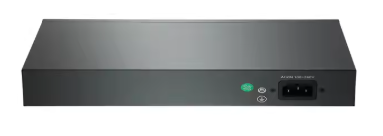

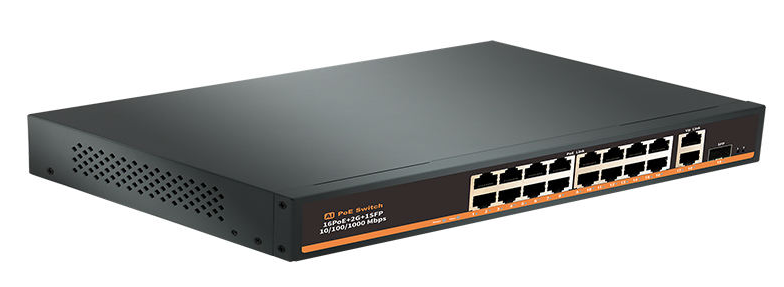

CCTV OEM Cheap 16 Ports 100Mbps PoE Network Switch with Gigabit Uplink and SFP Port POE1621HR-2
The POE1621HR-2 is a cost-effective 16-port 100Mbps PoE network switch, ideal for CCTV and IP surveillance systems. It features 2 Gigabit uplink ports and 1 SFP slot for flexible high-speed connectivity. Supports IEEE 802.3af/at PoE standards with a total power budget suitable for powering multiple IP cameras or PoE devices. Reliable, plug-and-play design for easy deployment.
CCTV OEM Cheap 16 Ports 100Mbps PoE Network Switch with Gigabit Uplink and SFP Port POE1621HR-2
FEATURES – 16 Ports 100Mbps PoE Network Switch with Gigabit Uplink and SFP Port (POE1621HR-2)
- 16*10/100M POE Ports + 2*10/100/1000M Uplink Ports+1*10/100/1000M SFP port
- IEEE 802.3af/at PoE compliant
- Support PoE IP camera, PoE WIFI AP, and PoE IP Phone.
- Up to 15.4W/30W per port for powering PoE-enabled devices.
- One-key Smart: Support three working modes (OFF-Normal, VLAN, Extend-250M);
- Dynamic power control to ensure stable output power (Enhanced).
- Improved anti-interference capability, to solve problems in the installation of grounding devices
- Reliable short-circuit protection to ensure safety.
- Over-voltage and under-voltage protection
- 300W high power
- CCTV OEM Cheap 16 Ports 100Mbps PoE Network Switch with Gigabit Uplink and SFP Port (POE1621HR-2)
- network switch is a multiport network bridge that uses
- MAC addresses to forward data at the data link layer (layer 2) of the OSI model.
- Switches for Ethernet are the most common form of network switch.
- To solve problems in the installation of grounding devices .
SPECIFICATION – 16 Ports 100Mbps PoE Network Switch with Gigabit Uplink and SFP Port
(POE1621HR-2)
| Product Name | 16 Ports 100Mbps PoE Network Switch with Gigabit Uplink and SFP port | |||||||||
| Model | POE1621HR-2 | |||||||||
| Connector Type | 16 ports 10/100M POE port + 2 ports Gigabit Uplink Ethernet+1 port Gigabit Uplink SFP port | |||||||||
| Optical | Multi-mode fibre: 1310nm, 2Km Single mode fibre: 1310nm, 20/40 Km 1550nm, 60/80/100/120Km | |||||||||
| Performance Specification | Bandwidth: 9.2 Gbps (non-blocking) | |||||||||
| MAC: 2K | ||||||||||
| Packet Buffer Memory: 1M | ||||||||||
| 100M Packet Forwarding Rate: 0.1488Mpps/port, 1000M Packet Forwarding Rate: 1.488Mpps/port | ||||||||||
| MTBF: 100,000 hours | ||||||||||
| Forwarding Mode | Store-And-Forward | |||||||||
| PoE Standard | IEEE 802.3af/at (each port 15.4W / 30W) | |||||||||
| POE Compatibility | AF/AT | |||||||||
| POE power output | DC48V | |||||||||
| Power Supply | Power input: AC110-264V 50/60Hz; (every country uses a custom power plug) | |||||||||
| PoE power pin | 12+,36- (45+,78- Optional) | |||||||||
| PoE Port Power | 15.4W /30W for each POE port | |||||||||
| PoE Feature | All ports support MDI/MDIX | |||||||||
| Network Protocols | Support IEEE802.3, IEEE802.3u, IEEE802.3x | |||||||||
| Network Media | 10BASE-T: Cat6 UTP (≤250 meter) ; 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000BASE-TX: Cat5 or more UTP (≤100 meter) | |||||||||
| LED Indicator |
| |||||||||
| Working Environment | Operating Temperature: -20°C ~ 55°C. Storage Temperature: -40°C ~ 85°C. Operating Humidity: max 90%, non-condensing | |||||||||
| Transmission Distance | POE transmission distance:100meters, 250meters (when it’s on 10Mbps rate with Cat.6 or more) Uplink transmission distance: 100meters (Uplink RJ45 port). Depend on your SFP module (Uplink SFP port) | |||||||||
| Dimension (L×W×H) | 320 mm*210mm*45 mm | |||||||||
| Warranty | 2 years warranty |
CCTV OEM Cheap 16 Ports 100Mbps PoE Network Switch with Gigabit Uplink and SFP Port (POE1621HR-2)
- PoE – Application
- Schematic Diagram of PoE Power Supply
- Detect: Judge if PD equipment exists
- Switch off: PSE detect if PD equipment power off
- Run: Control and manage
- Power Supply: PSE provide power to PD equipment
- Sort: PSE confirm to power PD equipment
- PoE Power Supply Method
- Power sourcing equipment (PSE)
- Powered Device (PD)
- PD equipment
- Diagram
- Video
- Internet
- PC
