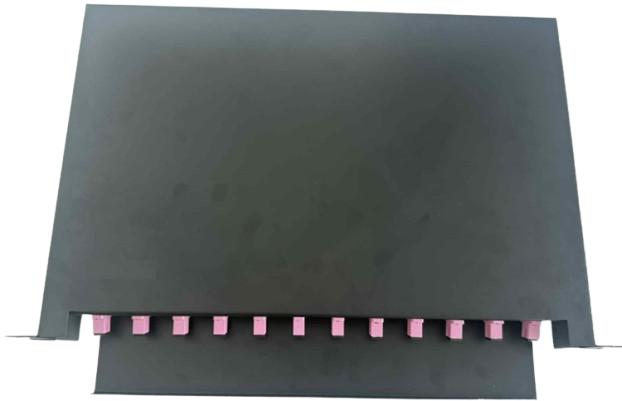

12 Ports OM4 ODF Fiber Optic Patch Panel 1U 19″ Rack Mounted Loaded SC Adapter
Order Now
... people are viewing this right now
Compare
12 Ports OM4 Fiber Optic Patch Panel 1U 19″ Rack Mounted Loaded SC Adapter
Product Description: 12 Ports OM4 Fiber Optic Patch Panel
Application
- FTTH access network
- Telecommunication Networks
- CCTV Networks
- Data Center
- Local Area Networks
Parameters | |
| Design | Sliding Rail |
| Material | Cold rolled steel sheet |
| Mounting Type | 19″ Rack Mounted |
| Capacity | 12 Fibers |
| No. Of Rack Unit | 1U |
| No. Of Tray | 1x12F |
| Capacity of Tray | 24F |
| Adapter | SC Port |
| Loaded | OM4 SC/UPC adapter |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥ 55dB |
| Color | Black |
| Dimension | 483x300x1U(44.5)mm |
| Operating Temperature (°C) | -20 ~ +75 |
| Storage Temperature (°C) | -40 ~ +85 |
