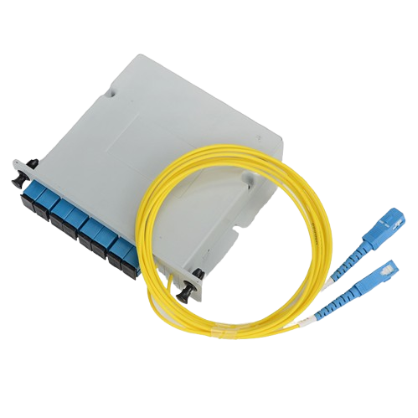

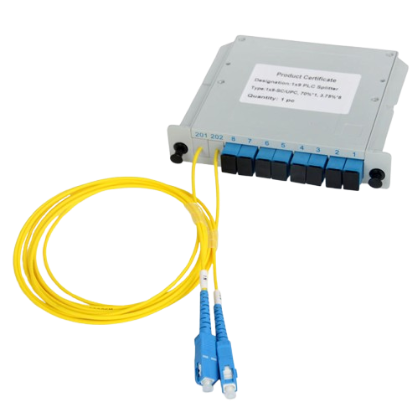

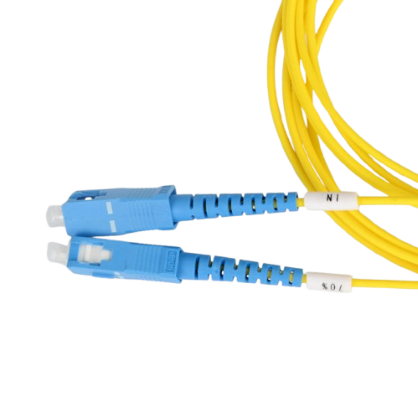

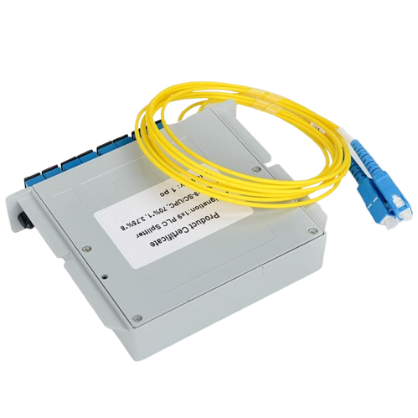

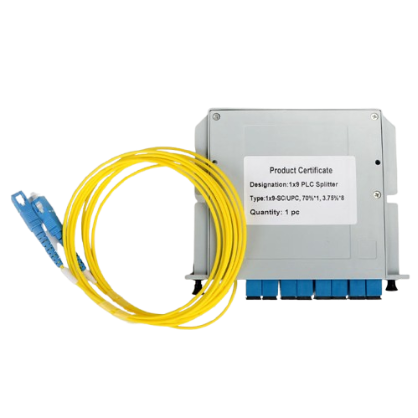

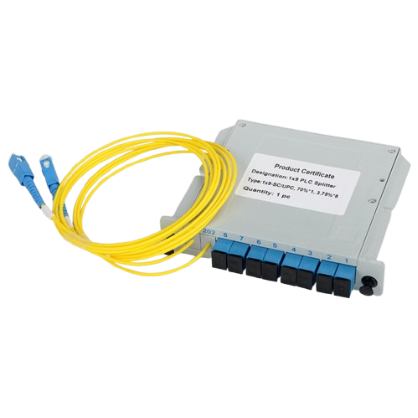

Uneven Fiber Optic Cassette Splitter 1×9 PLC FBT Splitter SC UPC Connector
Order Now
Call for Price
Uneven Fiber Optic Cassette Splitter 1×9 PLC FBT Splitter SC UPC Connector
Product Description
- 1×9 insert type PLC Splitter. The interface type is SC/APC, fast and practical. Applicable to home wiring, engineering projects, corporate companies, fiber optic LAN.
- It has compact structure and good stability, and can be installed in various existing transfer boxes without leaving a lot of installation space.
- All-fiber structure, stable and fast, built-in high-quality chip, ensure uniform and stable light splitting, quick response without delay which can meet the needs of different wavelengths
- ABS plastic shell, with pit impact resistance, heat resistance and low temperature resistance.
- Low insertion loss and low back reflection, High Reliability and Stability, Low PDL
Uneven Fiber Optic Cassette Splitter 1×9 PLC FBT Splitter SC UPC Connector
Uneven Fiber Optic Cassette Splitter 1×9 PLC FBT Splitter SC UPC Connector
Product Description
- 1×9 insert type PLC Splitter. The interface type is SC/UPC, fast and practical. Applicable to home wiring, engineering projects, corporate companies, fiber optic LAN.
- It has compact structure and good stability, and can be installed in various existing transfer boxes without leaving a lot of installation space.
- All-fiber structure, stable and fast, built-in high-quality chip, ensure uniform and stable light splitting, quick response without delay which can meet the needs of different wavelengths
- ABS plastic shell, with pit impact resistance, heat resistance and low temperature resistance.
- Low insertion loss and low back reflection, High Reliability and Stability, Low PDL
- Interface Type: SC/APC
- Working Wavelength: 1260-1650nm
- Insertion Loss: ≤10.5dB
- Return Loss: ≤50dB
- Directionality: ≤55dB
- Spectral Uniformity: ≤0.8dB
- Polarization Dependent Loss: ≤0.2dB
- Wavelength Dependent Loss: ≤1.0dB
- Temperature Stability: ≤0.6dB
- Working Temperature: -40 – 85ºC
Application
1. Access Network
2. Telecom/CATV
3. Active device termination
4. Local Area Networks (LANS)
5. Metro
6. Test equipment
7. Data processing network
8. Wide Area Networks (WANS)
Product Parameters
Item | 1×9 |
Operating Wavelength(nm) | 1260-1650 |
Fiber Type | G657A1 or as customers’ order |
Connector | SC/FC/LC |
Ferrule section | UPC/APC |
Insertion loss(dB) | ≤12.8 |
Loss uniformity(dB) | ≤1.2 |
Return Loss(dB) | ≥55 |
Polarization Dependent Loss(dB) | ≤0.25 |
Directivity(dB) | ≥55 |
Temperature correlation loss | ≤0.5 |
-40~85ºC(dB) | |
Size(mm)(LxWxH) | 60×7×4 |
Working Temperature(ºC) | -40~85 |
Storage Temperature(ºC) | -40~85 |
