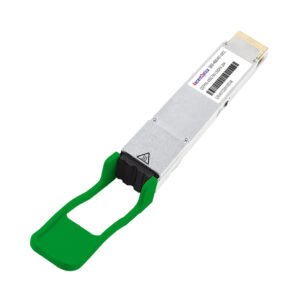

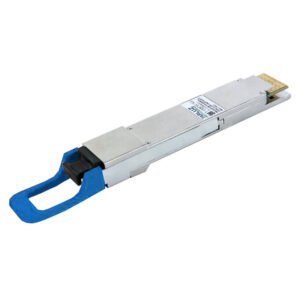

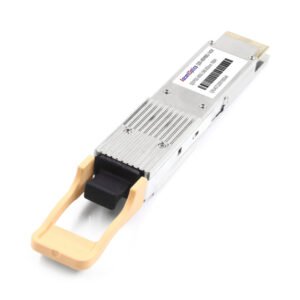

C-CORP 400G QSFP DD OPTICAL TRANCEIVER MODULE
Order Now
Call for Price
C-CORP 400G QSFP DD OPTICAL TRANCEIVER MODULE
Functions and features:
- Compliant with QSFP-DD MSA CMIS Rev5.0, OIF 56G PAM4 and 100G Lambda MSA
- Hot Pluggable QSFP-DD Form Factor
- High-speed Electrical Compliant to IEEE 802.3bs
- 8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
- QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules
- MPO-12/dual-fiber LC interface
- CWDM EML /VCSEL/DFB
C-CORP 400G QSFP DD OPTICAL TRANCEIVER MODULE
Functions and features:
- Compliant with QSFP-DD MSA CMIS Rev5.0, OIF 56G PAM4 and 100G Lambda MSA
- Hot Pluggable QSFP-DD Form Factor
- High-speed Electrical Compliant to IEEE 802.3bs
- 8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
- QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules
- MPO-12/dual-fiber LC interface
- CWDM EML /VCSEL/DFB
| Package | Data Rate | Wavelength | Distance | Source | Output Power (dBm) | Sensitivity (dBm) | Connector | Temp(℃） |
| C-CORP-QDD-400G-SR8 | 400G 400G 850 | 850nm | 100m | VCSEL/PIN | -6~4 | ＜-7.9 | MPO | 0~70 |
| C-CORP-QPDD-MDRL4-05D | 400G 400G DR | 1310nm | 500m | DFB/PIN | -2.9~4 | ＜-5.9 | MPO | 0~70 |
| C-CORP-QPDD-400G-FR4 | 400G FR4 2KM | 1271/1291/1311/1331 | 2km | CWDM EML/PIN | -3.3~3.5 | ＜-7.3 | Duplex LC | 0~70 |
| C-CORP-QPDD-S31L4-10D | 400G 400G Lr4 | 1271/1291/1311/1331 | 10km | CWDM EML/PIN | -2.1~5.1 | ＜-9.1 | Duplex LC | 0~70 |
