ST805C-X PON Power Mete
ST805C-X PON Power Meter
Main functions
Ø 3 wavelengths’ power of PON system synchronously: 1490nm, 1550nm, 1310nm
Ø Threshold value setting function
Ø Auto backlight off function
Ø Display the voltage of battery
Ø Power off automatically when it is in low voltage
Ø Data Storage 1000 groups
Interface
 |  |
Specifications
| Wavelength | |||||
| Standard wavelengths | 1310 (upstream) | 1490 (downstream) | 1550 (downstream) | ||
| Pass zone(nm) | 1260～1360 | 1480～1500 | 1530～1570 | ||
| Range(dBm) | -40～+10 | -50～+10 | -50～+25 | ||
| Max. permitted input power | 15dBm | 15dBm | 25dBm | ||
| Isolation @1310nm(dB) | >40 | >40 | |||
| Isolation @1490nm(dB) | >40 | >40 | |||
| Isolation @1550nm(dB) | >40 | >40 | |||
| Accurate of burst signal | Deviation <±0.5dB@-10dBm | ||||
| Other Parameters | |||||
| Optical fiber type | SM 9/25um | ||||
| Optical fiber connector | SC/APC | ||||
| Accurate | ±0.2dB/±0.5dB(burst mode) | ||||
| Linearity(dB) | 0.1 | ||||
| Through Insertion Loss(dB) | <1.5 | ||||
| Resolution | 0.01dB | ||||
| Unit | dBm / xW | ||||
| General Specifications | |||||
| Storage number | 1000 items | ||||
| Auto power off time | Included | ||||
| Battery | AA x 3 or AC/DC adapter | ||||
| Working temperature | -10~60℃ | ||||
| Storage Temperature | -20~70℃ | ||||
| Dimension (mm) | 42mm*90mm*195mm | ||||
| Weight (g) | About 350 | ||||
Pictures
 |  |
Related Products
CHT3554 48v lithium battery tester can replace HIOKI 3554
₱1
CHT3554 48v lithium battery tester can replace HIOKI 3554
Digital Earth Resistance Tester
₱0
Features
- 0.01ΩHIGH ACCURACY FOR LOW RESISITANCE MEASUREMENT0.001ΩHIGH RESOLUTION
- RECORD 99 RESISTANCE MEASUREMENT VALUESSET ALARM THRESHOLD IN 1ΩTO 100ΩMEASURE LEAKAGE CURRENT AND NEUTRAL CURRENT45mmX 32mm LARGE
- JAWS OF EXACTITUDE MEASUREMENT PROBEINDICATION THE CAPACITY OF THE BATTERIES
- DIGITAL MEASUREMENT, AUTORANGE, EASY OPERATION
- DOUBLE INSULATION, STRENGTHEN THE INTERFERENCE RESISTANCE
- UNTOUCHED MEASUREMENT, ENSURE THE SAFETY
- ONE SECOND PER TEST, IMPLY THE QUICK MEASUREMENT.
- DISPLAY: LCD 3 3/4 DIGITS
Measuring Range 0-2000ohm Real Digital Earth Tester DY4100 Ground Resistance Tester Meter
Call for Price
Measuring Range 0-2000ohm Real Digital Earth Tester DY4100 Ground Resistance Tester Meter
DY4100 Digital Ground Resistance Tester
Digital earth resistance tester DY4100 is a new generation tester for electrician practice which is developed by DUOYI in recent years. The circuit, structure and technique of traditional earth resistance tester have been improved and the new design is both fine-looking and practical. This one has more complete functions, higher accuracy, more convenient and reliable for operation and more suitable for outdoor use with dust and wet proof structure.
It can test earth resistance of various earth systems including power systems, electric equipments, lightning conductors as well as resistance value of low resistance conductor and AC voltage test.
Ground resistance measurements from 0.01Ω to 2000Ω with 0.01Ω resolution
Data hold, low battery warning
Complete with test leads, auxiliary earth bars, (not include battery)

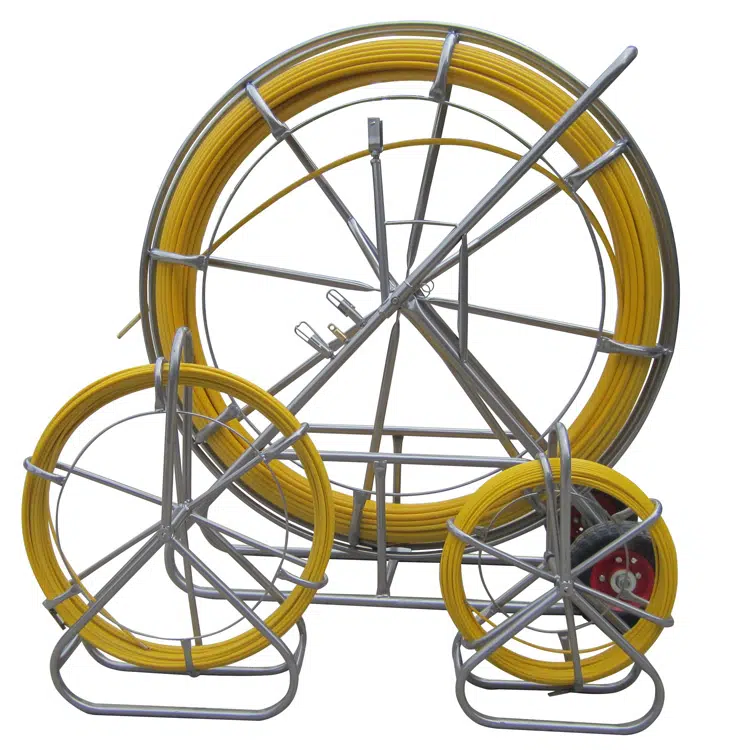

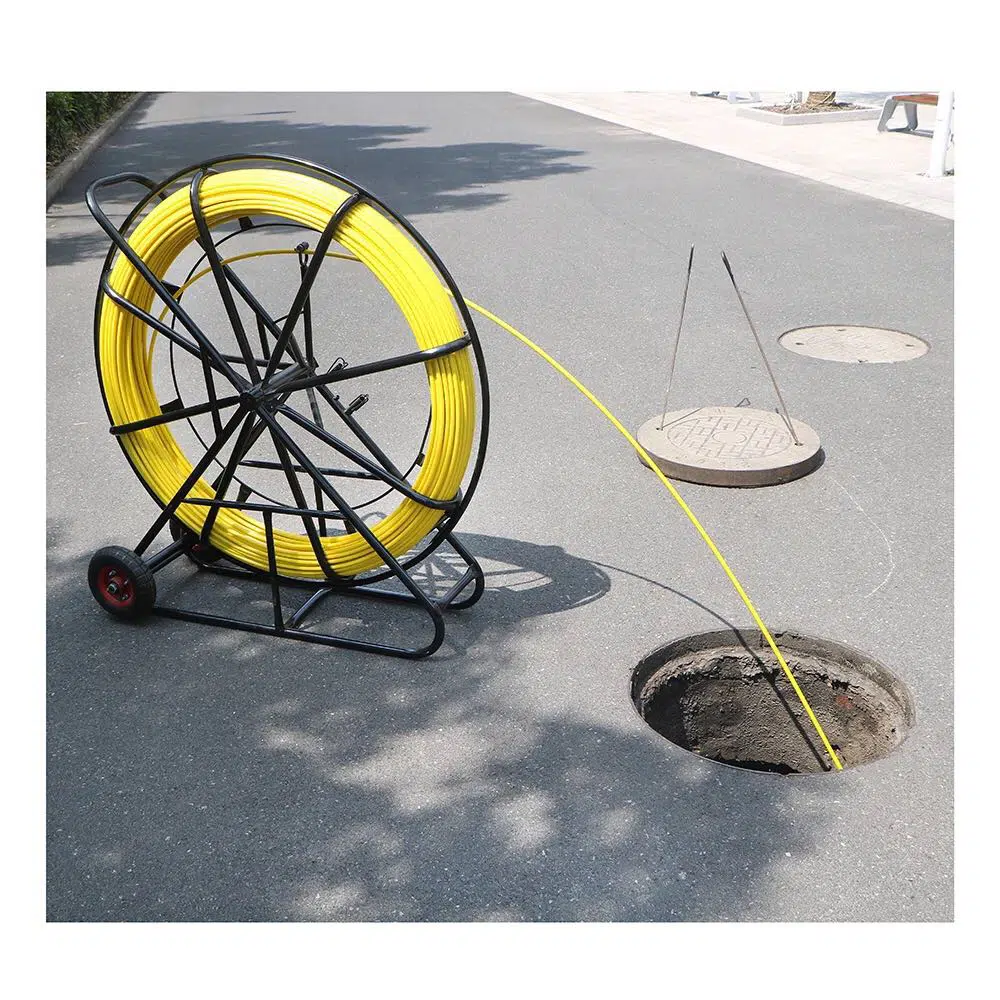

Fiberglass Duct Rodder / Push Rod
