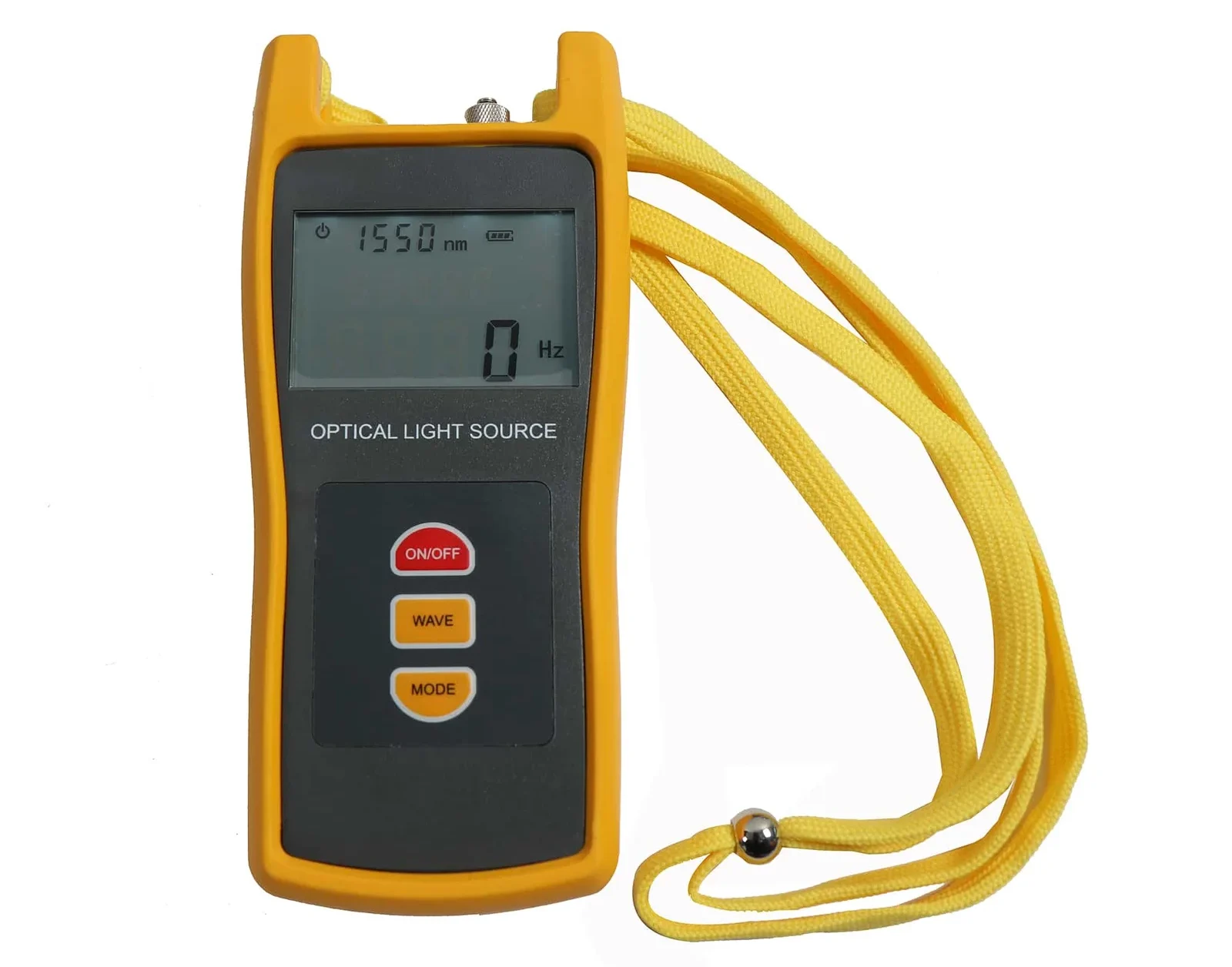

SNP3109 Optical Light Source (OLS)
SNP3109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements,including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the SNP3208 optical power meter, it is a perfect solution for the fiber optic network characterization.
Features
- Provides 1~4 output wavelengths which can be optional according to customer’s needs
- CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
- High stability of the output power
- Stable output wavelength
- Backlight LCD display supports night operation
- Compact size and decent appearance
- Large LCD, easy operation
- Alternative 10 minutes Auto-off function conserving battery life
Applications
- Maintenance in Telecom
- Maintenance CATV
- Fiber Optic Lab Testing
- Other Fiber Optic Measurements
Specifications
| Type | SNP3109 | ||||
| Wavelengths (nm) | 650 | 1310/1550 | 850/1300 | 850/1300/1310/1550 | |
| Emitter Type | FP-LD, LED or others please specify | ||||
| Typical Output Power (dBm) | 0 | -7dBm for LD, -20dBm for LED | |||
| Spectral Width(nm) | 1. ≤10 | ||||
| Output Stability | ±0.05dB/15mins; ±0.1dB/ 8hours | ||||
| Modulation Frequencies | CW, 2Hz | CW, 270Hz, 1KHz, 2KHz | |||
| Optical Connector | FC/ universal adaptor | FC/PC | |||
| Power Supply | Alkaline Battery (3 AA 1.5V batteries) | ||||
| Battery Operating Time(hour) | 45 | ||||
| Operating Temperature(℃) | -10~+60 | ||||
| Storage Temperature(℃) | -25~+70 | ||||
| Dimension(mm) | 175x82x33 | ||||
| Weight (g) | 295 | ||||
| SNP3109 Handheld Light Source is designed for optimal use with SNP3208 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable. | |||||
Standard Packages
| MODEL | INCLUDES |
| All SNP3109 Models | SNP3109 Optical Light Source, Protective Rubber Boot, 3pcs 1.5V batteries, User Manual, Cotton swabs and Soft carrying case |
