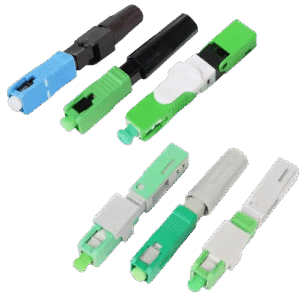

SC APC SC UPC Fast Connector Waterproof Singlemode

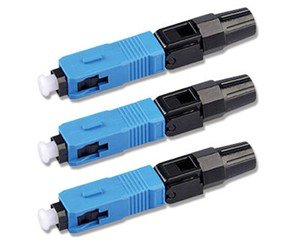

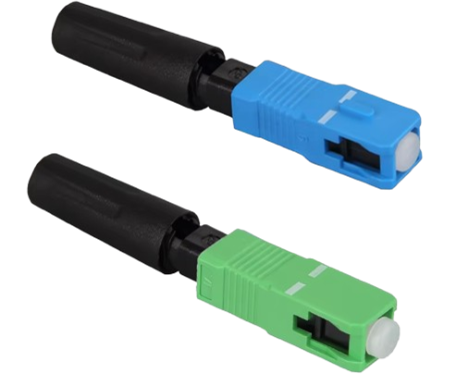

SC APC SC UPC Fast connector are factory pre-polished field-installable connectors that completely eliminate the need for hand polishing in field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber. Fast connectors are compatible with 250um and 900um optical fiber as well as 900um, 2mm, 3mm and drop cable cordage.

PRODUCT SPECIFICATIONS

1. Optical Characteristics

Category	Specification
Applicable for	Drop cable, Indoor cable
Fiber mode	Single mode or Multi mode
Operation time	S	About 50(no fiber cut)
Insertion Loss	dB	≤0.5
Insertion Loss Typical value	dB	0.3
Return Loss	dB	≥50
Fastening strength of naked fiber	N	≥5
Tensile strength	N	≥50
Reusable	Time	≥10 times
Operating Temperature	℃	-40~+85
On-line tensile strength(20N)	dB	ΔIL≤0.3
Mechanical durability(500 times)	dB	ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction, totally 3 times)	dB	ΔIL≤0.3

2. Environmental Performance Requirements

Category	Specification
Category	Condition	IL Variation	RL Variation	Appearance
High TEMP	110℃,200H	≤0.5	≤5	No mechanical damage, like deformation, cracking and untight
Low TEMP	-40℃,200H	≤0.5	≤5
TEMP Cycling	-40~85℃,3.5H/Cle,100C	≤0.5	≤5
HAST	110℃,90%RH,200H	≤0.5	≤5
Immersion	25℃,200H	≤0.5	≤5
Salt Mist	5% Nacl, 6.5	≤0.5	≤5
