Fiber Optic Splice Closure 12, 24, 48 Core Dome Type

Order Now

Fiber Optic Splice Closure 12, 24 48 Core Dome Type

... people are viewing this right now

Compare

Fiber Optic Splice Closure 12, 24 48 Core Dome Type

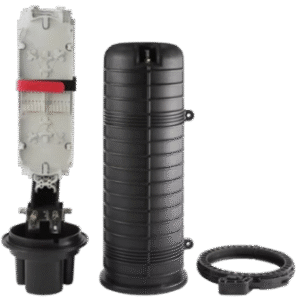

Fiber Optic Splice Closure has four alone round-port and one oval port. Fit for the straight-through and branching of the fiber cable’s aerial, wall-mount, and direct bury application. It is a reentry box which is made of PC or PP material. The shells and the base are sealed by silicone gum. And the entry ports are closed by heat-shrinkable tubes. This product can reenter and be used again after it is opened.

Fiber Optic Splice Closure is the equipment used to offer room to fuse splice optical fiber and also to provide protections for the fused fiber joint point and the fiber cables. Typical splice closure are vertical type and horizontal type, there are various kinds of fiber splice closures suit for different applications, such as aerial, duct fiber cables and direct buried. Generally, fiber optic splice closures are used outdoors, some even used underwater.

Features:

High density;
High sealing performance;
Adequate space for fibers storage;
Easy operation;
Multiple installation application.

Applications:

LAN, WAN and Metro Networks

FTTH project & FTTX Deployments

CATV System

GPON, EPON

Fiber Optic Test Equipment

Data-base Transmit Broadband Net

Product Parameters:

Product Name	Fiber Optic Splice Closure
Max Capacity of Cores Per Splice Tray	24(Single)
Color	Black/Grey/White/Customize
Max. Capacity	Single: 144(24Core/Tray)
Cable Diameter	7mm~24mm
Max Capacity of Splice Tray/Closure	6
Outlet Cable Number	16pcs
Protection Grade	IP65
Installation Method	Aerial-hanger; Wall-mounting; Direct Buried.
Working Environment	Outdoor and Indoor
