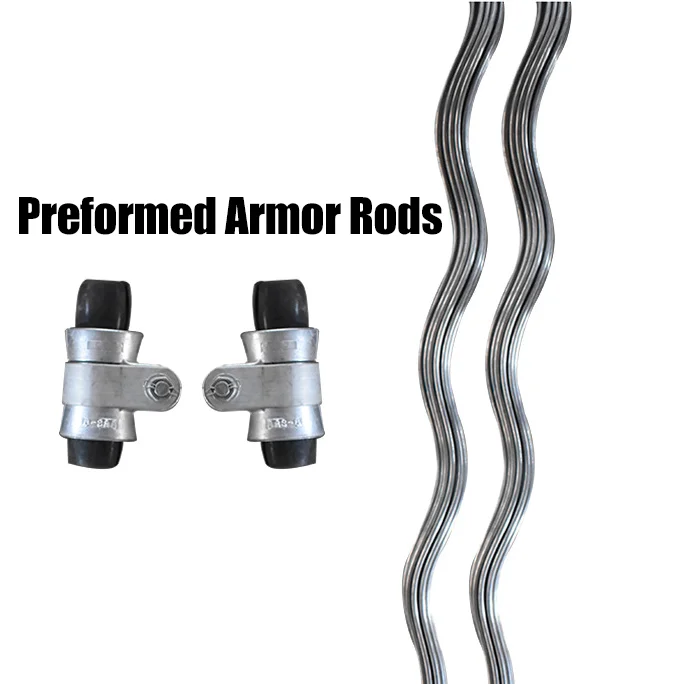

Aluminum Alloy Line Guard Preformed Armor Rods

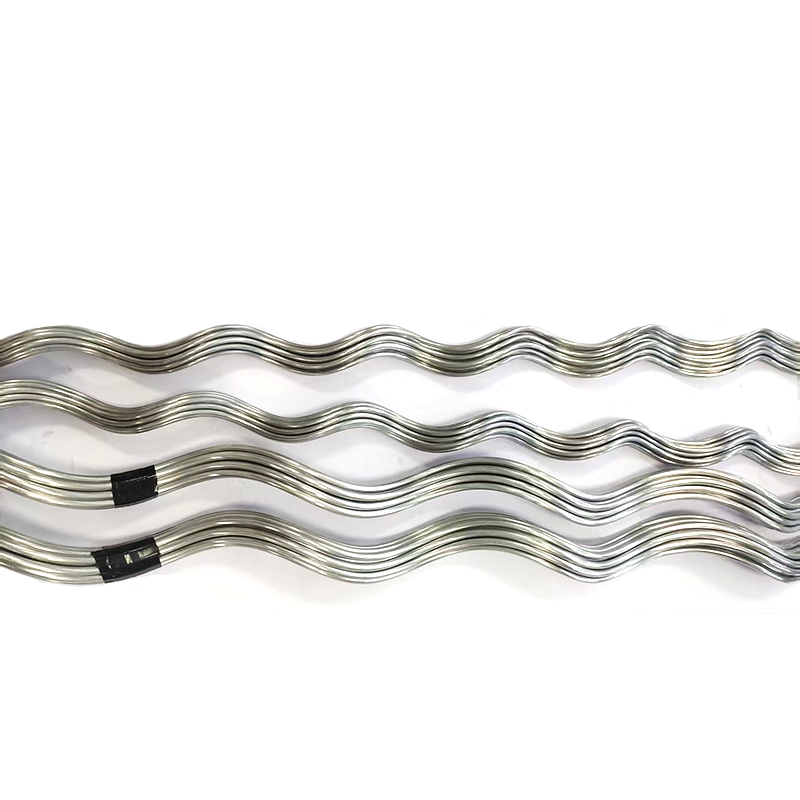

Preformed Armor rods
Armor rods protect wire from the vibration of wire, clamp pressure stress, friction, electric arc and all other external damage. Short preformed armor rods vibration is not in serious cases, may in a short span of the line to protect against electric arc wire, friction, or other damage.
Can also be used as a conversion, a conversion has been damage to the wire, to restore the original mechanical strength and wire resistance. Can also be used to protect the branch lines to avoid cable branch point arc and friction due to the damage. The protection degree required on a specified line is depending on different factors like temperature, line design, tension, vibration history, and exposure on a similar construction in a similar location. Line guards are suggested as minimum protection for several hand-tied spans.
Preformed armor rods and short preformed armor rods have simple lines, each formed ATC preformed wire, wire wrapped grip force generated when, to protect the wire. Consideration When the outermost layer of aluminum and aluminum ACSR conductor in the outermost layer of aluminum has less than 25% of the fracture lines occur, we can use a short preformed armor rods repair, restore 100% of the mechanical and electrical Performance.
1. Armor rods is to protect conductors/strands against bending, compression, abrasion and arcover damage and to provide restorative repair
2. Armor rods are designed to protect the conductor by reducing bending, compression, and abrasion at the support point. Protection against flashover damage is also provided. Armor rods are recommended as protection for spans greater than 300 ft. (91m).
3. Easy to install, convenient and efficient, Save your time and cost
4. Wide universality, Supporting the use of several railway fittings
5. Design for you specially according to different span length and usage environment

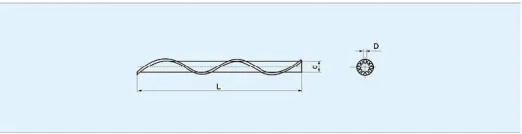

Type | Suitable conductor | Dimensions(mm) | Weight(kg) | ||
D | d | L | |||
FYH-95/15 | LGJ-95/15 | 3.6 | 11.4 | 1400 | 0.5 |
FYH-95/20 | LGJ-95/20 | 3.6 | 11.4 | 1400 | 0.5 |
FYH-95/55 | LGJ-95/55 | 3.6 | 13.3 | 1500 | 0.6 |
FYH-120/7 | LGJ-120/7 | 3.6 | 12.0 | 1400 | 0.6 |
FYH-120/20 | LGJ-120/20 | 3.6 | 12.5 | 1400 | 0.6 |
FYH-120/25 | LGJ-120/25 | 3.6 | 13.0 | 1400 | 0.6 |
FYH-120/70 | LGJ-120/70 | 4.6 | 14.9 | 1800 | 0.8 |
FYH-150/8 | LGJ-150/8 | 3.6 | 13.3 | 1500 | 0.6 |
FYH-150/20 | LGJ-150/20 | 3.6 | 14.7 | 1500 | 0.7 |
FYH-150/25 | LGJ-150/25 | 3.6 | 14.2 | 1500 | 0.7 |
FYH-150/35 | LGJ-150/35 | 3.6 | 14.5 | 1500 | 0.7 |
FYH-185/10 | LGJ-185/10 | 4.6 | 14.9 | 1800 | 1.2 |
FYH-185/25 | LGJ-185/25 | 4.6 | 15.7 | 1800 | 1.3 |
FYH-185/30 | LGJ-185/30 | 4.6 | 15.7 | 1800 | 1.3 |
FYH-185/45 | LGJ-185/45 | 4.6 | 16.3 | 1800 | 1.3 |
FYH-210/10 | LGJ-210/10 | 4.6 | 15.9 | 1800 | 1.3 |
FYH-210/25 | LGJ-210/25 | 4.6 | 16.6 | 1800 | 1.3 |
FYH-210/35 | LGJ-210/35 | 4.6 | 16.9 | 1800 | 1.3 |
FYH-210/50 | LGJ-210/50 | 4.6 | 17.3 | 1800 | 1.3 |
FYH-240/30 | LGJ-240/30 | 4.6 | 17.9 | 1900 | 1.4 |
FYH-240/40 | LGJ-240/40 | 4.6 | 17.9 | 1900 | 1.4 |
FYH-240/55 | LGJ-240/55 | 4.6 | 18.6 | 1900 | 1.4 |
FYH-300/15 | LGJ-300/15 | 6.3 | 19.1 | 2000 | 2.3 |
FYH-300/20 | LGJ-300/20 | 6.3 | 19.4 | 2000 | 2.3 |
FYH-300/25 | LGJ-300/25 | 6.3 | 19.8 | 2000 | 2.3 |
FYH-300/40 | LGJ-300/40 | 6.3 | 19.9 | 2000 | 2.3 |
FYH-300/50 | LGJ-300/50 | 6.3 | 20.1 | 2000 | 2.3 |
FYH-300/70 | LGJ-300/70 | 6.3 | 20.9 | 2000 | 2.3 |
FYH-400/20 | LGJ-400/20 | 6.3 | 22.3 | 2200 | 2.8 |
FYH-400/25 | LGJ-400/25 | 6.3 | 22.1 | 2200 | 2.8 |
FYH-400/35 | LGJ-400/35 | 6.3 | 22.3 | 2200 | 2.8 |
FYH-400/50 | LGJ-400/50 | 6.3 | 23.0 | 2200 | 2.8 |
FYH-400/65 | LGJ-400/65 | 6.3 | 23.2 | 2200 | 2.8 |
FYH-400/95 | LGJ-400/95 | 6.3 | 24.8 | 2500 | 2.8 |
FYH-500/35 | LGJ-500/35 | 7.8 | 24.9 | 2500 | 3.5 |
FYH-500/45 | LGJ-500/45 | 7.8 | 24.9 | 2500 | 3.5 |
FYH-500/65 | LGJ-500/65 | 7.8 | 25.7 | 2500 | 3.5 |
FYH-630/45 | LGJ-630/45 | 7.8 | 27.9 | 2500 | 5.3 |
FYH-630/55 | LGJ-630/55 | 7.8 | 28.5 | 2500 | 5.3 |
FYH-630/80 | LGJ-630/80 | 7.8 | 28.9 | 2500 | 5.3 |
FYH-800/55 | LGJ-800/55 | 7.8 | 31.8 | 2500 | 6.0 |
FYH-800/70 | LGJ-800/70 | 7.8 | 32.1 | 2500 | 6.0 |
FYH-800/100 | LGJ-800/100 | 7.8 | 32.3 | 2500 | 6.0 |
