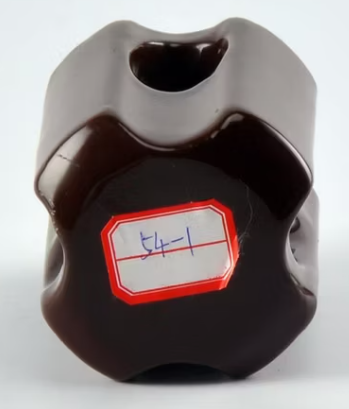

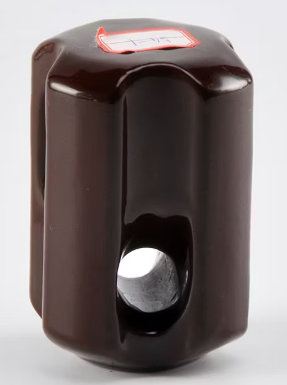

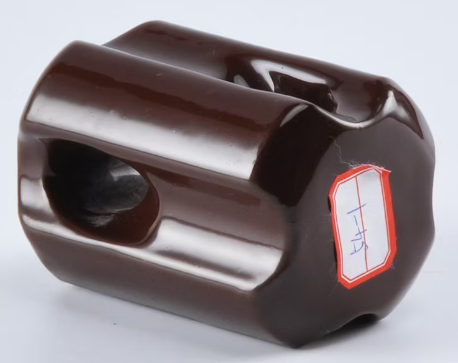

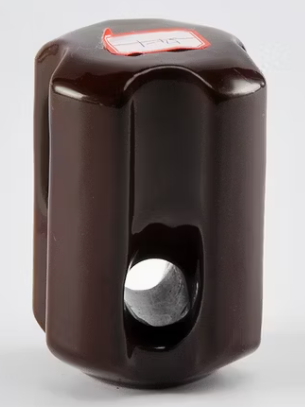

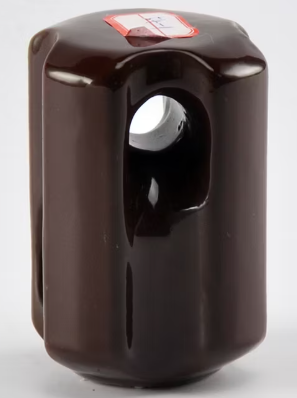

Brown Porcelain Stay Guy Strain Insulator Low Voltage ANSI Standard 54-1

PRODUCT DESCRIPTION – Low Voltage ANSI Standard 54-1 Brown Porcelain Stay Guy Strain Insulator

The Low Voltage ANSI Standard 54-1 Brown Porcelain Stay Guy Strain Insulator is designed for use in overhead electrical distribution systems to provide mechanical support and electrical isolation in guy wire applications. Manufactured from high  quality vitrified porcelain, this insulator offers excellent resistance to weather, environmental stress, and electrical leakage. Its brown glaze enhances UV resistance and long-term durability.

Compliant with ANSI C29.4 (Class 54-1) standards, this strain insulator is ideal for low voltage applications, typically up to 11kV. It is engineered to withstand high tensile loads, making it suitable for tensioning stays and supporting structures in both urban and rural installations. The solid core construction ensures robust mechanical performance and long service life in demanding outdoor environments. Commonly used in utility poles, communication lines, and other guyed structures, the ANSI 54-1 strain insulator provides a reliable and cost-effective solution for isolating tensioned cables while maintaining electrical safety and structural integrity.

In electrical engineering, low voltage is a relative term, the definition varying by context. Different definitions are used in electric power transmission and distribution, compared with electronics design. Electrical safety codes define “low voltage” circuits that are exempt from the protection required at higher voltages. These definitions vary by country and specific codes or regulations.

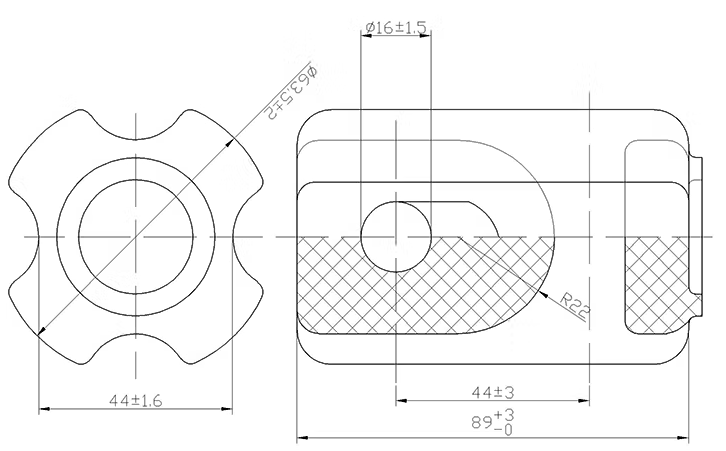

• Creepage distance 41mm
• Minimum flashover voltage Dry 25kv | Wet 12kv
• Mechanical failing load 45kN

Our Products are manufactured strictly in accordance with IEC, ANSI, BS, AS and GB. And can be specially designed and supplied according to customers’ drawings and samples.

• Creepage distance 41mm
• Minimum flashover voltage Dry 25kv | Wet 12kv
• Mechanical failing load 45kN

BASIC INFORMATION – Low Voltage ANSI Standard 54-1 Brown Porcelain Stay Guy Strain Insulator

Low Voltage ANSI Standard 54-1 Brown Porcelain Stay Guy Strain Insulator

• High quality Product is our business.
