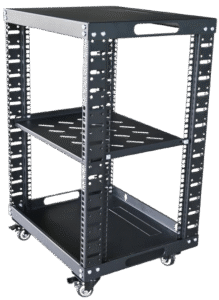

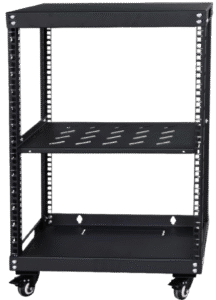

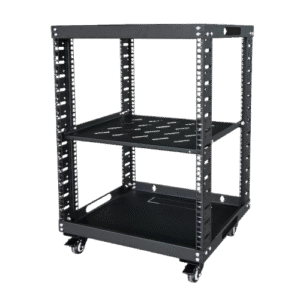

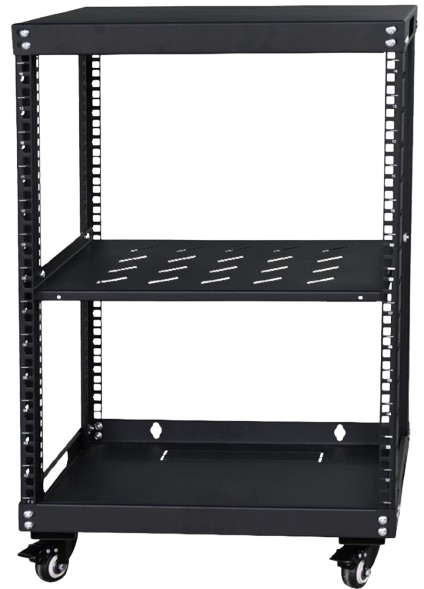

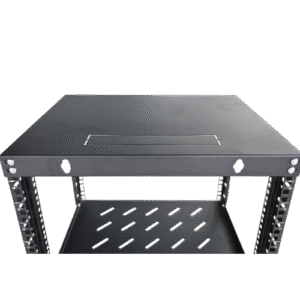

OPEN DATA CABINET 9U 12U 15U 18U

OPEN DATA CABINET 9U 12U 15U 18U

Material: SPCC high-quality cold-rolled steel plate, Plate thickness: U-column 2.0mm, all top cover and base layer plates 1.2mm Locking casters, easy to move, locked at any time, load capacity: 300KG The rear top cover and base are equipped with wall-mounting holes, Allowing for wall-mounted installation The top cover features a humanized design with cable holes on the side The position of the shelves can be adjusted up and down freely and they are fixed with screws Top wiring hole Bottom wire holes C high-quality cold-rolled steel plate, scription

Product features: Modular structure design, easy to assemble, low cost, easy to load and unload, transport and assemble;

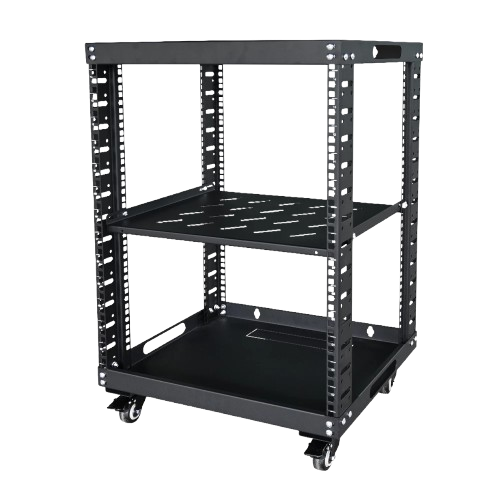

Two installation methods: 1. Floor-standing installation, with 4 casters at the bottom for easy movement, and the wheels are equipped with brakes for convenient locking

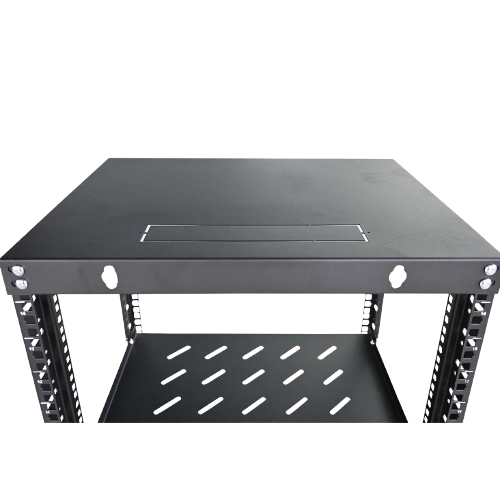

Installation Method 2: Wall-mounted installation, with wall-hanging holes at the back, fixed to the wall with expansion bolts, saving floor space

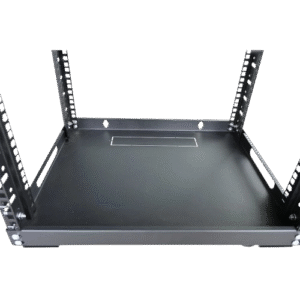

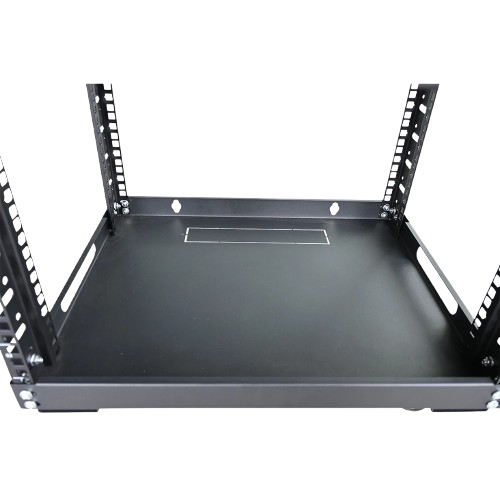

Wiring method: The top is designed with knockdown type cable holes, and there is a detachable cable inlet board in the middle of the base, allowing for flexible wiring.

Installation method of the equipment: There is one standard fixed layer board inside, which is installed with screws and can be adjusted up and down freely. The number of layer boards can be increased.

Structure: 4 U-shaped columns, sturdy and durable. 2mm thick cold-rolled steel plates are formed by one-time stamping with molds, with strong load-bearing capacity and not easy to deform. The surface is printed with U number scales.

A variety of accessories can be purchased as needed (such as wire troughs, wire management racks, trays, etc.)

Application scope: Widely used in computer network systems, home network cable management, university educational equipment, broadcasting systems and communication systems, etc.

9U CABINET SIZE : WIDTH 500MM DEPTH *405MM HEIGHT *480MM

12U CABINET SIZE : WIDTH 500MM DEPTH *405 MM HEIGHT *624MM

15U CABINET SIZE : WIDTH 500MM DEPTH *405 MM HEIGHT *756MM

18UCABINET SIZE : WIDTH 500MM DEPTH *405MM HEIGHT *890MM
