NK6800PON series Optical Time Domain Reflectometer

Product overview

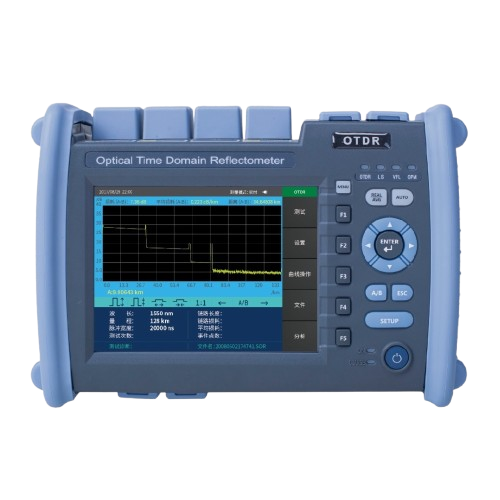

NK6800 series PON OTDR adopts 7-inch color screen, which makes the operation easier. It integrates 7 functions to help customers solve the communication link field test and later maintenance more effectively. The maximum dynamic range is 45dB. It can be penetrated through the max 1:32 splitter to effectively improve the performance in PON network test.

NK6800 series are mainly used to measure the length, loss and connection quality of optical fiber and cable. It is widely used in engineering construction, line maintenance test, emergency repair, development and production measurement of optical fiber and optical cable. It is mainly used in urban trunk line, backbone network and metropolitan area network.

Product features

• 0.8m event blind area, easy to test 5m jumper
• Detection of online test, automatic alarm with light
• Batch processing of data, printing report forms
• Nomenclature in Chinese and English
• Support SM/MM/SM+MM test
• Standard SOR file output format
• Multi wavelengths simultaneous test
• Key + touch screen dual operation mode
• Integrate OTDR/VFL/LS/OPM/Event Map/Loss Test/End Face Identifier

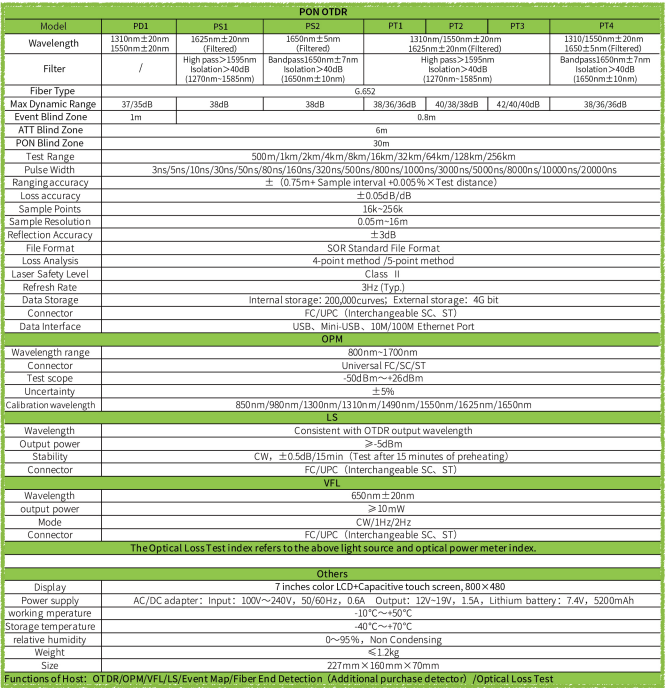

NK6800PON Technical Specifications
