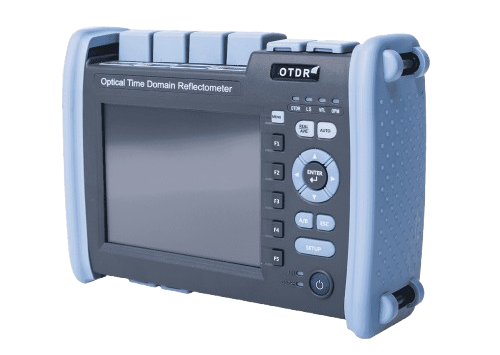

NK6000 PON Optical Time Domain Reflectometer

NK6000 PON Optical Time Domain Reflectometer

Product overview

NK6000 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument for testing optical fiber communication system. Adopt 5.8 inch color touch screen, button/ touch dual operation; Internal integration of eight major functional modules, multi-functional integration to help customers effectively solve the field test and maintenance; The highest 45 dB dynamic range, can penetrate optical splitter, effective PON network testing; Intelligent power-saving management, 20 hours long
standby, efficient protection of test dimension continuous

NK6000 PON OTDR adopts 5.6 inch color screen, double operation of key and touch. It has a max dynamic range of 45dB, and can penetrate 1:32 optical splitter in PON network test; the whole machine integrates Visual Fault Location, Event Map, Optical Power Meter, Light Source, Optical Loss Test, Optical End Face Detection functions, multi-functional integration to help customers efficiently solve the field test and maintenance.

Application

It is mainly used to measure the length, loss, connection quality and other parameters of all kinds of optical fiber and cable. It can be widely used in engineering construction, emergency repair of communication system of optical fiber communication system, development and production measurement of optical fiber cable.

Product features

• PON network test, penetrate 1:32 splitter
• Batch processing of data, printing report forms
• Communication not interrupted, online test
• Nomenclature in Chinese and English
• Standard SOR file output format
• Key + touch screen dual operation mode
• Integrated PON OTDR/VFL/LS/OPM/Event Map/End Face Detection/Optical Loss Test

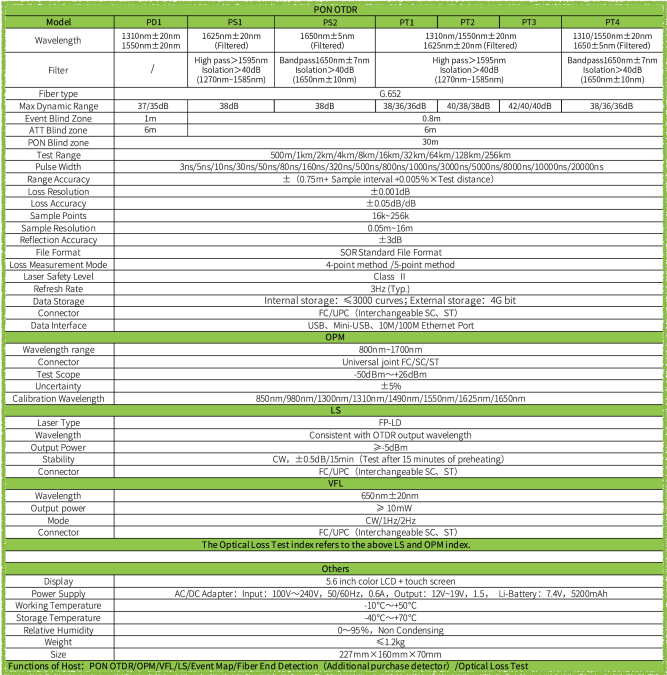

NK6000 PON Technical Specifications
