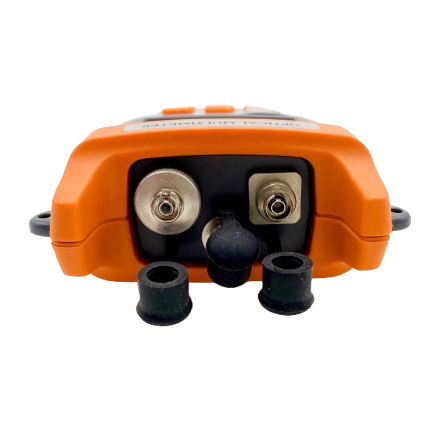

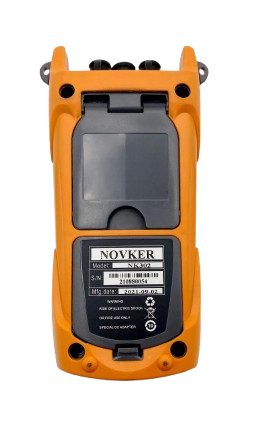

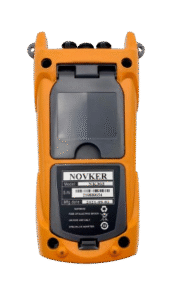

NK302 Optical Multimeter
Product overview
NK302 series optical multimeter are mainly used for continuous optical signal power measurement, optical link on-off test, optical link fault diagnosis and link loss test. The design of the fuselage meets the requirements of ergo- nomics, and OPM adopts the built-in detector, which can make it well protected. Backlight display and automatic shutdown function. It can integrate VFL to meet the requirements of various tests.
It are widely used in optical fiber construction and maintenance, optical fiber communication, optical fiber sensing, Optical CATV and other fields. They can also be used to test the insertion loss and splitting ratio of passive components such as optical splitter, circulator, optical coupler and optical switch.
Product features
- Support simultaneous display of mW, dBm and dB
- Support backlight switch
- Support LS/OPM/VFL integration
- Support backlight 4-level dimming
- Lithium battery (optional), portable battery charging
- Support FC/SC/ST interface
- Support automatic frequency identification
- Working hours over 12 hours

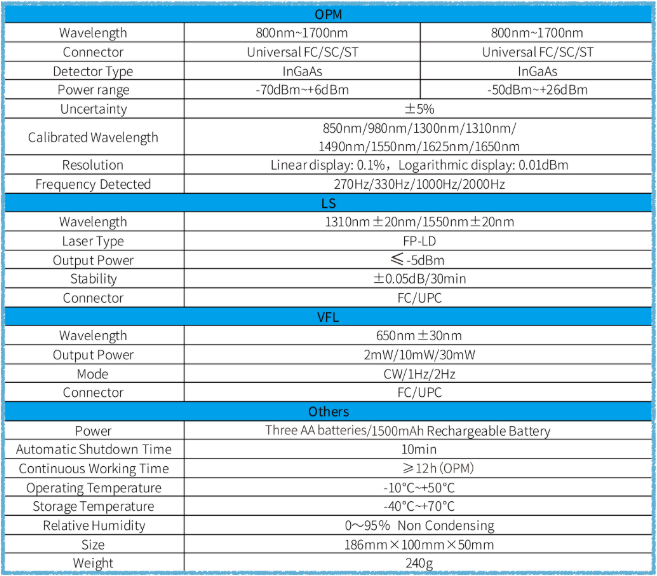

NK302 Technical Specifications
