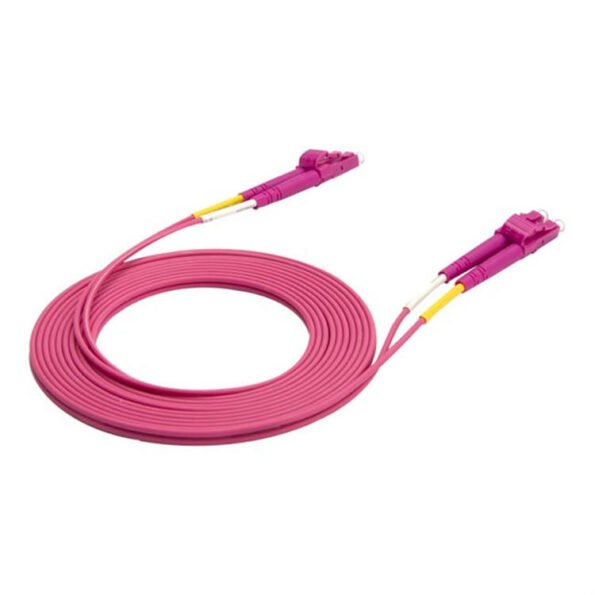

LC-LC OM4 50/125 Multimode Duplex Fiber Patch Cord 10Gb 3mm – 3 meters
Order Now
Call for Price
LC-LC OM4 50/125 Ultimate Multimode Duplex Fiber Patch Cord 10Gb 3mm -3 meters
- Our high quality OM4 multi-mode fiber cable with LC,FC,AT,FC connectors is perfect for high-throughput applications.
- Support 10Gb up to 300 meters, 40Gb and 100Gb up to 100 meters.
- With an Effective Modal Bandwidth (EMB) of 2000 MHz/km at 850nm.
- OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building.
- The small LC connector is perfect for high density network applications.
- Use with LED and VCSEL laser light sources.
- Backward compatible with LED-based 50/125 multimode fiber applications.
LC-LC OM4 50/125 Ultimate Multimode Duplex Fiber Patch Cord 10Gb 3mm -3 meters
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OM4 fiber patch cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers, etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 40/100G applications.
The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.
- Our high quality OM4 multi-mode fiber cable with LC,FC,AT,FC connectors is perfect for high-throughput applications.
- Support 10Gb up to 300 meters, 40Gb and 100Gb up to 100 meters.
- With an Effective Modal Bandwidth (EMB) of 2000 MHz/km at 850nm.
- OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building.
- The small LC connector is perfect for high density network applications.
- Use with LED and VCSEL laser light sources.
- Backward compatible with LED-based 50/125 multimode fiber applications.
Features:
- 1. 100% Optically inspected and tested for insertion loss
- 2. Backward Compatible with existing 50/125 equipment
- 3. Provides the performance headroom required to support LED, VCSEL laser light sources and 10 Gigabit ethernet applications
- 4.Pull-Proof Jacket
- 5.ROHS Compliant
Application:
- High-Throughput Applications
- Data Storage
- 10 Gigabit Ethernet
Product details
| Product | 3m LC-LC OM4 50/125 Multimode Duplex Fibre Patch Cable 10Gb 3mm |
| Pre-Terminated Connector | LC, SC,ST,FC |
| Polished | UPC |
| Fiber Count | 2 |
| Fiber Mode | OM4 Multimode |
| Jacket Color | Erica Violett |
| Diameter(OD) | 2.0mm,3.0mm |
| Insertion Loss | < 0.2db |
| Return Loss | >50db |
| Jacket Materials | PVC LSZH |
| Product Keywords | lc om4 patch lead,LC/UPC to LC/UPC Fiber Optic Jumper Outdoor |
