HG325AX 4GE+1POTS+1USB3.0+WiFi6 HGU XPON Dual-band AX15/AX18/AX30 WiFi 6 ONT
HG325AX XPON Dual-band AX15/AX18/AX30 WiFi 6 ONT
HG325AX
1XPON+4LAN+1POTS+1USB3.0+WiFi6 HGU ONT
(Wifi speed is AX1500 or AX1800 or AX3000 optional.)
Introduction:
HG325AX (WiFi6 XPON HGU ONT) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services. The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and al sosupportsIEEE802.11b/g/n/ac/ax WiFi 6 technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the VSOL OLT. The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984

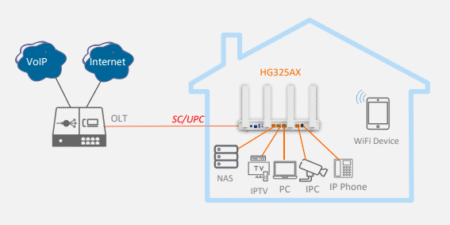

Application Chart:
| ○ Hardware Parameter | |
| Dimension | 250mm×145mm×36mm (L×W×H) |
| Net weight | 0.34Kg |
| Operating condition | Operating temp: -10 ~ +55°C |
| Operating humidity:5 ~ 95% (non-condensed) | |
| Storing condition | Storing temp: -40 ~ +70°C |
| Storing humidity: 5 ~ 95% (non-condensed) | |
| Power adapter | DC 12V, 1.5A, external AC-DC power adaptor |
| Power supply | ≤18W |
| Interface | AX1500, AX1800: |
| 1*XPON+4*GE+1*POTS+1*USB3.0+WiFi6 | |
| AX3000: | |
| 1*XPON+1*2.5GbE+3*GE+1*POTS+1*USB3.0+WiFi6 | |
| Indicators | PWR, PON, LOS, WAN, WiFi, FXS, ETH1~4, WPS, USB |
| ○ Interface Parameter | |
| PON Interface | l 1XPON port(EPON PX20+ and GPON Class B+) |
| l SC single mode, SC/UPC connector | |
| l TX optical power: 0～+4dBm | |
| l RX sensitivity: -27dBm | |
| l Overload optical power: -3dBm(EPON) or -8dBm(GPON) | |
| l Transmission distance: 20KM | |
| l Wavelength: TX 1310nm, RX1490nm | |
| User interface | l 4*GE(or AX3000: 1*2.5GbE+3*GE), Auto-negotiation,RJ45 ports |
| l 1×POTS RJ11 Connector | |
| Antenna | 4 × 5dBi external antennas |
| ○ Function Data | |
| O&M | l WEB/TELNET/OAM/OMCI/TR069 |
| l Support private OAM/OMCI protocol and Unified network management of VSOL OLT | |
| Internet connection | Support Routing Mode |
| Multicast | l IGMP v1/v2/v3, IGMP snooping |
| l MLD v1/v2 snooping | |
| VoIP | l SIP and IMS SIP |
| l G.711a/G.711u/G.722/G.729 Codec | |
| l Echo cancellation,VAD/CNG,DTMF Relay | |
| l T.30/T.38 FAX | |
| l Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference | |
| l Line testing according to GR-909 | |
| WIFI | l WiFi 6: |
| AX1500: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz | |
| AX1800, AX3000: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz | |
| l WiFi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 | |
| l Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM | |
| l Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band | |
| l Support WIFI Easy-mesh function | |
| L2 | 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN |
| L3 | IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS |
| Firewall | Anti-DDOS, Filtering Based on ACL/MAC /URL |
