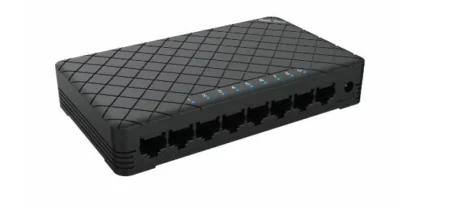

Desktop Switch RG-ES05G/08G Series – Reliable Unmanaged Plastic Case Switch
Order Now
Call for Price
RG-ES05G/08G Series Plastic Case Unmanaged Desktop Switch
The perfect combination of quality, ease of use & cost effectiveness
Ruijie Real-easy Series Plastic Switch is a desktop switch tailored for small enterprises, small-scale surveillance and SOHO, which consists of a total of 4 different models to meet the network needs of small enterprise customers. The switches feature plug and play, zero configuration and compatibility with a variety of terminals such as network cameras, printers, PCs, etc., to offer fast deployment experience.
Desktop Switch
RG-ES05G/08G Series – Reliable Unmanaged Plastic Case Switch
The perfect combination of quality, ease of use & cost effectiveness
Ruijie Real-easy Series Plastic Switch is a desktop switch tailored for small enterprises, small-scale surveillance and SOHO, which consists of a total of 4 different models to meet the network needs of small enterprise customers. The switches feature plug and play, zero configuration and compatibility with a variety of terminals such as network cameras, printers, PCs, etc., to offer fast deployment experience.

PoC Guide
- Reyee Switch PoC Guide V1.0 2021-07-07
Installation Guide
- RG-ES05&RG-ES08 User Manual 2024-04-29
- Ruijie Reyee RG-ES05, ES05G, ES08, ES08G Switch Installation Guide (V1.2) 2024-05-16
EU Declaration of Conformity
- RG-ES05_EU DOC 2023-04-27
Specification
| Model | RG-ES05 | RG-ES05G | RG-ES08 | RG-ES08G |
| Ports | 5 10/100M Base-T ports | 5 10/100/1000M Base-T ports | 8 10/100M Base-T ports | 8 10/100/1000M Base-T ports |
| Operating mode | Half-duplex, full-duplex, auto-negotiation mode | |||
| Support auto MDI/MDIX | ||||
| Backplane bandwidth | 1Gbps | 10Gbps | 1.6Gbps | 16Gbps |
| Packet forwarding rate | 0.744Mpps | 7.44Mpps | 1.1904Mpps | 11.904Mpps |
| MAC address | 1K | 2K | 1K | 4K |
| Power supply | External, DC 5.0V / 600mA | External, DC 5.0V / 600mA | External, DC 5.0V / 600mA | External, DC 9.0V / 600mA |
| Maximum power consumption | ≤2.5W | ≤3W | ≤3.5W | ≤6.5W |
| Fan | Fanless | Fanless | Fanless | Fanless |
| Dimensions | 108.1mm*64mm*24.8mm | 108.1mm*64mm*24.8mm | 144mm*85mm*23mm | 144mm*85mm*23mm |
| Temperature | Operating temperature: 0 ℃ ~ 40 ℃ | |||
| Storage temperature: -40 ℃ ~ 70 ℃ | ||||
| Humidity | Operating humidity: 10% ~ 90% RH | |||
| Storage humidity: 5% ~ 95% RH | ||||
