CCFDP24700310 FIBER DISTRIBUTION PEDESTAL
Order Now
Call for Price

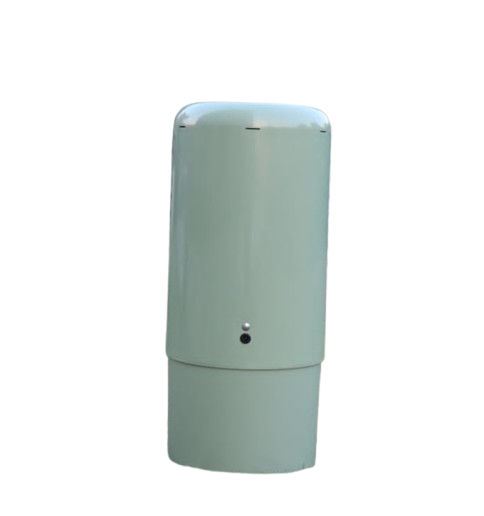

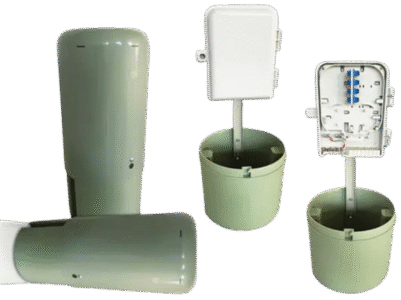

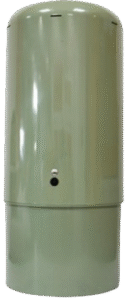

CCFDP24700310 FIBER DISTRIBUTION PEDESTAL
Fiber Optical Pedestal CCFDP24700310 is designed specifically for the housing of Fiber Access Terminals to provide an additional protection to the fiber passive equipment installed, the green environment-friendly appearance makes itself perfectly suitable for FTTH.
CCFDP24700310 FIBER DISTRIBUTION PEDESTAL
PRODUCT OVERVIEW
Fiber Optical Pedestal CCFDP24700310 is designed specifically for the housing of Fiber Access Terminals to provide an additional protection to the fiber passive equipment installed, the green environment-friendly appearance makes itself perfectly suitable for FTTH.
PRODUCT ADVANTAGES
- Water-proof design with IP-55 Protection level.
- Self-locking cover mechanism, with additional padlock.
- Removable cable entry plate with 3*50mm cable entrance, better performance for humidity-proof.

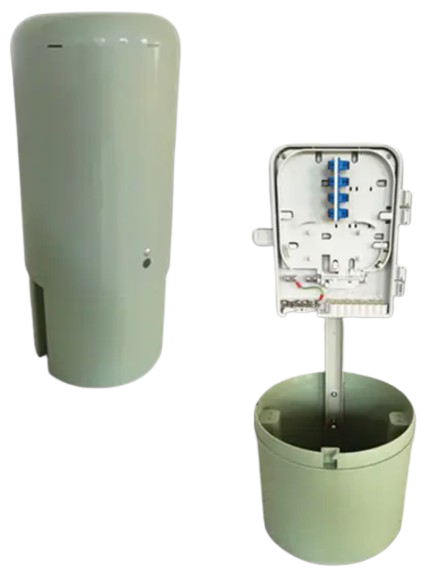

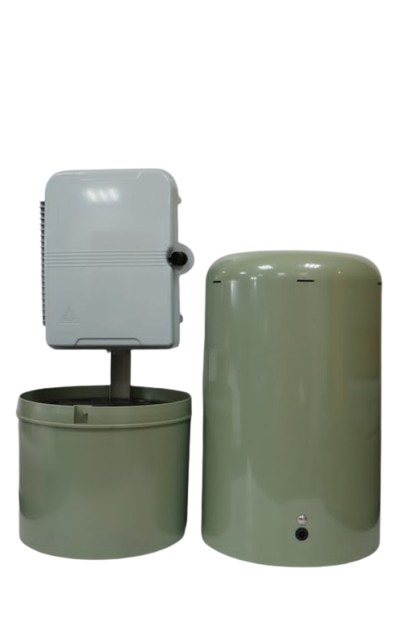

- Spacious inner space with universal mounting bracket, suitable for all types of Fiber Access
Terminal less than 300mm. - Made by high strength industrial-standard engineering plastic, better performance on anti-aging and UV-proof.
- Stainless steel metal frame and anti-rusting components.
- 360degreesairventsto keep a sound ventilation system.
- Smart design on packing.
PRODUCT SPECIFICATIONS
| CONSTRUCTION | DESCRIPTION |
| Fiber Access Terminal Max. Capacity | 24 Cores (SC) |
| Material | Non-metallic ABS |
| Dimension (mm) | 700*φ310 |
| Net Weight (g) | 5660 |

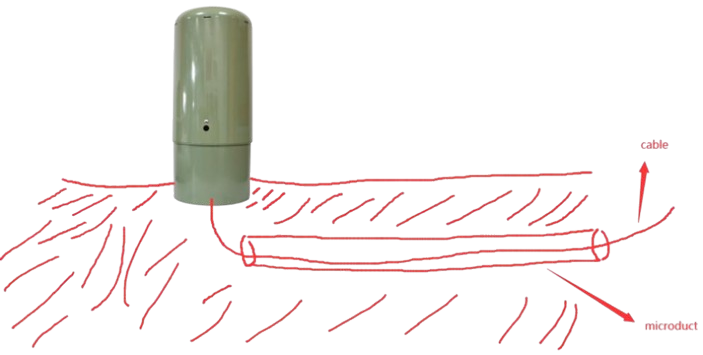

| The Max. Range of Microduct Entrance (mm) | 50 |
| Protection Level | IP55 |
PRODUCT APPLICATION
• Widely used in FTTX Network.
• Telecommunication Networks.
• Data communications Networks and Local Area Networks.
